LTM4650-2

RECOMMENDED FOR NEW DESIGNS

Dual 25A or Single 50A μModule Regulator with Active Voltage Positioning

Analog Devices LTM4650-2 Product Info

10 February 2026 4

Features

Dual 25A or Single 50A Output
4.5V to 15V Input, 0.6V to 1.8V Output Voltage Range
±1.5% Maximum Total DC Output Error Over Line and Load
Differential Remote Sense Amplifier
Current Mode Control/Fast Transient Response
Current Sharing Up to 300A

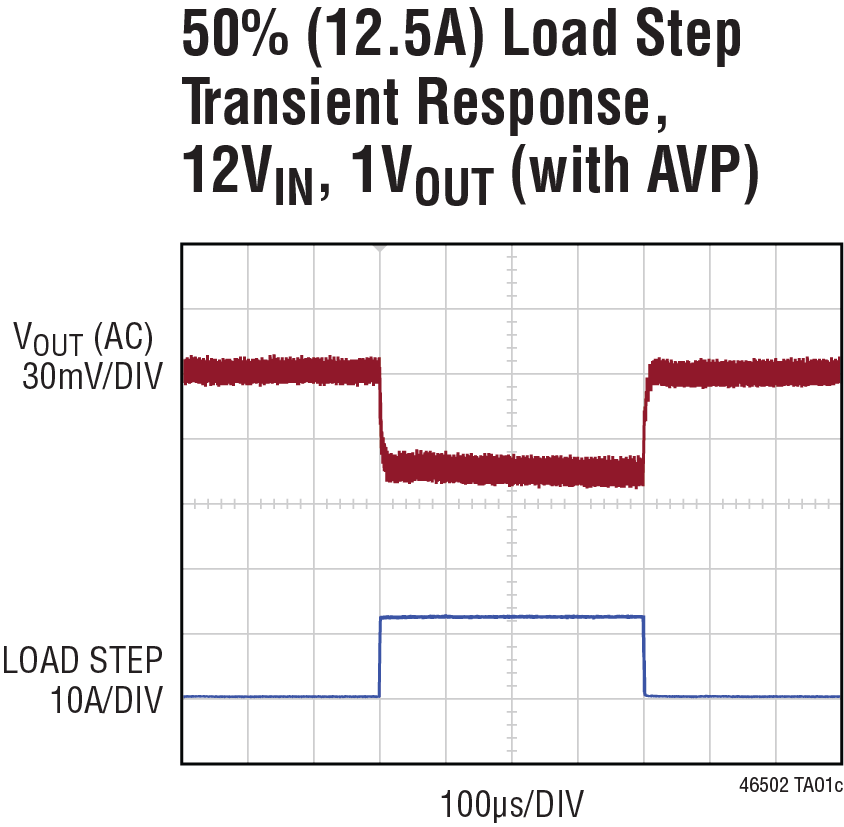

AVP (Active Voltage Positioning) Compatible

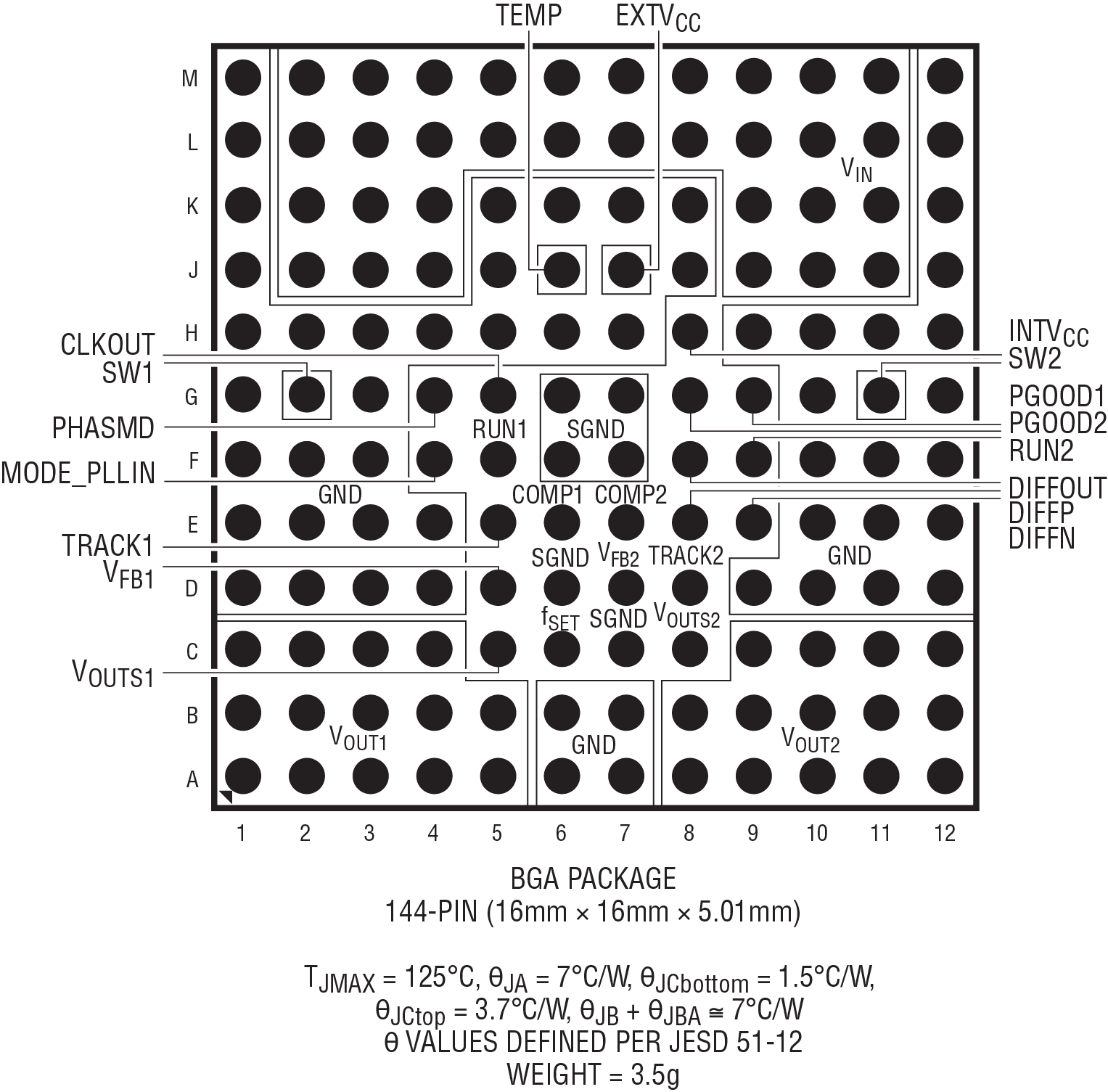

16mm × 16mm × 5.01mm BGA Package

Part details & applications

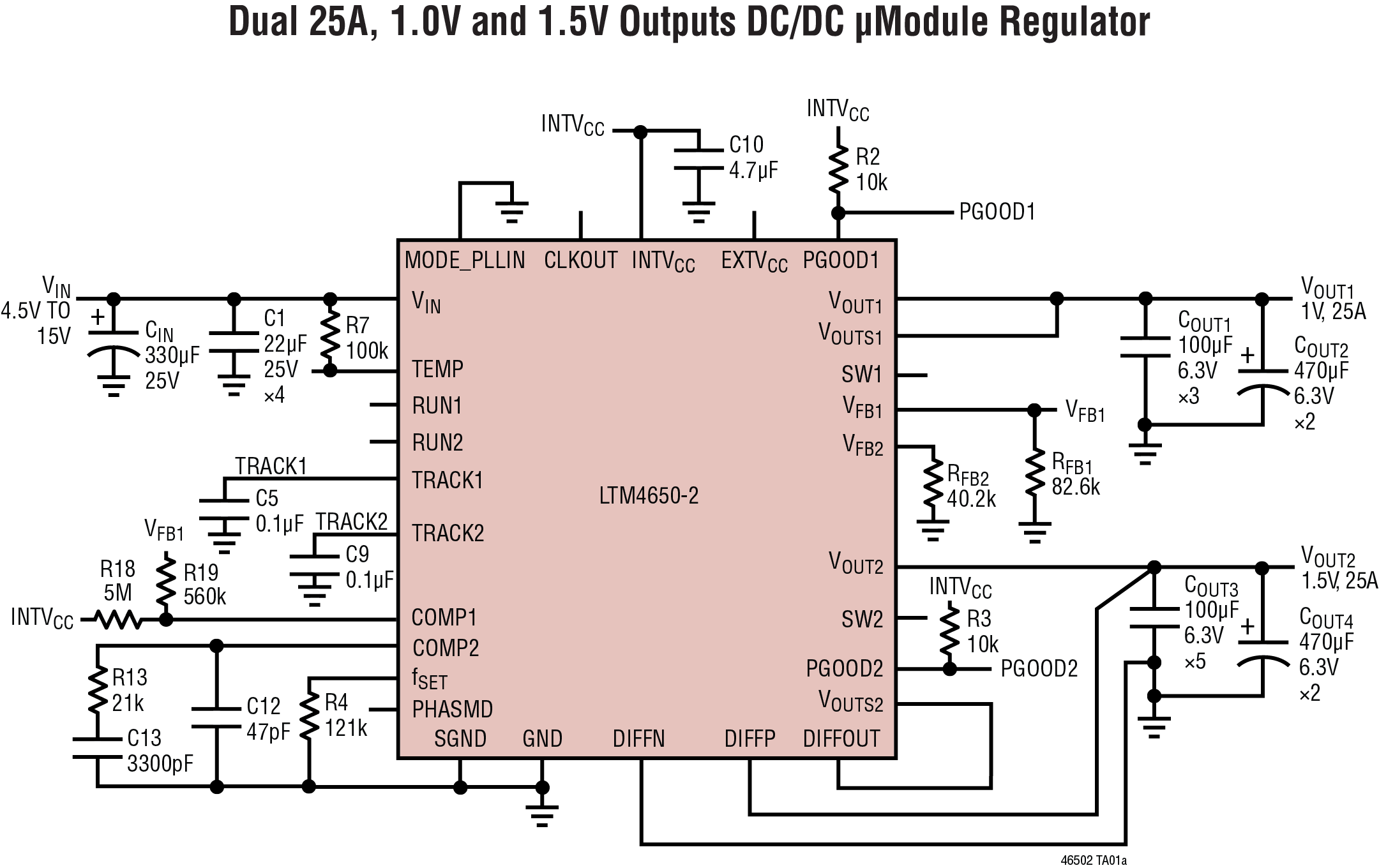

The LTM^®4650-2 is a dual 25A or single 50A output stepdown μModule^® (micromodule) regulator with ±1.5% total DC output error. The package includes the switching controller, power FETs, inductors, and all supporting components. External compensation allows for fast transient response to minimize output capacitance when powering FPGAs, ASICs, and processors. AVP can further improve transient response and reduce the output capacitance. With synchronized multiphase parallel current sharing, six LTM4650-2 devices can deliver up to 300A.

The LTM4650-2 is offered in a 16mm × 16mm × 5.01mm BGA package with SnPb or RoHS-compliant terminal finish.

APPLICATIONS

FPGA, ASIC, μProcessor Core Voltage Regulation
Information, Communication Systems
