Analog Devices LTC4267-3 Product Info

• Complete Power Interface Port for IEEE 802^®.3af Powered Device (PD)
• Onboard 100V, UVLO Switch
• Constant-Frequency 300kHz Operation
• Precision Dual Level Inrush Current Limit
• Integrated Current Mode Switching Regulator
• Onboard 25k Signature Resistor with Disable
• Programmable Classification Current (Class 0-4)
• Thermal Overload Protection
• Power Good Signal
• Integrated Error Amplifier and Voltage Reference
• Low Profile 16-Pin SSOP or DFN Packages

The LTC4267-3 combines an IEEE 802.3af compliant Powered Device (PD) interface with a 300kHz current mode switching regulator, providing a complete power solution for PD applications. The LTC4267-3 integrates the 25k signature resistor, classification current source, thermal overload protection, signature disable and power good signal along with an undervoltage lockout optimized for use with the IEEE-required diode bridge. The LTC4267-3 provides an increased operational current limit, maximizing power available for class 3 applications.

The 300kHz current mode switching regulator provides higher output power or smaller external size compared to its lower frequency counterparts. The LTC4267-3 is designed for driving a 6V rated N-channel MOSFET and features programmable slope compensation, soft-start, and constant-frequency operation, minimizing noise even with light loads. The LTC4267-3 includes an onboard error amplifier and voltage reference allowing use in both isolated and nonisolated configurations.

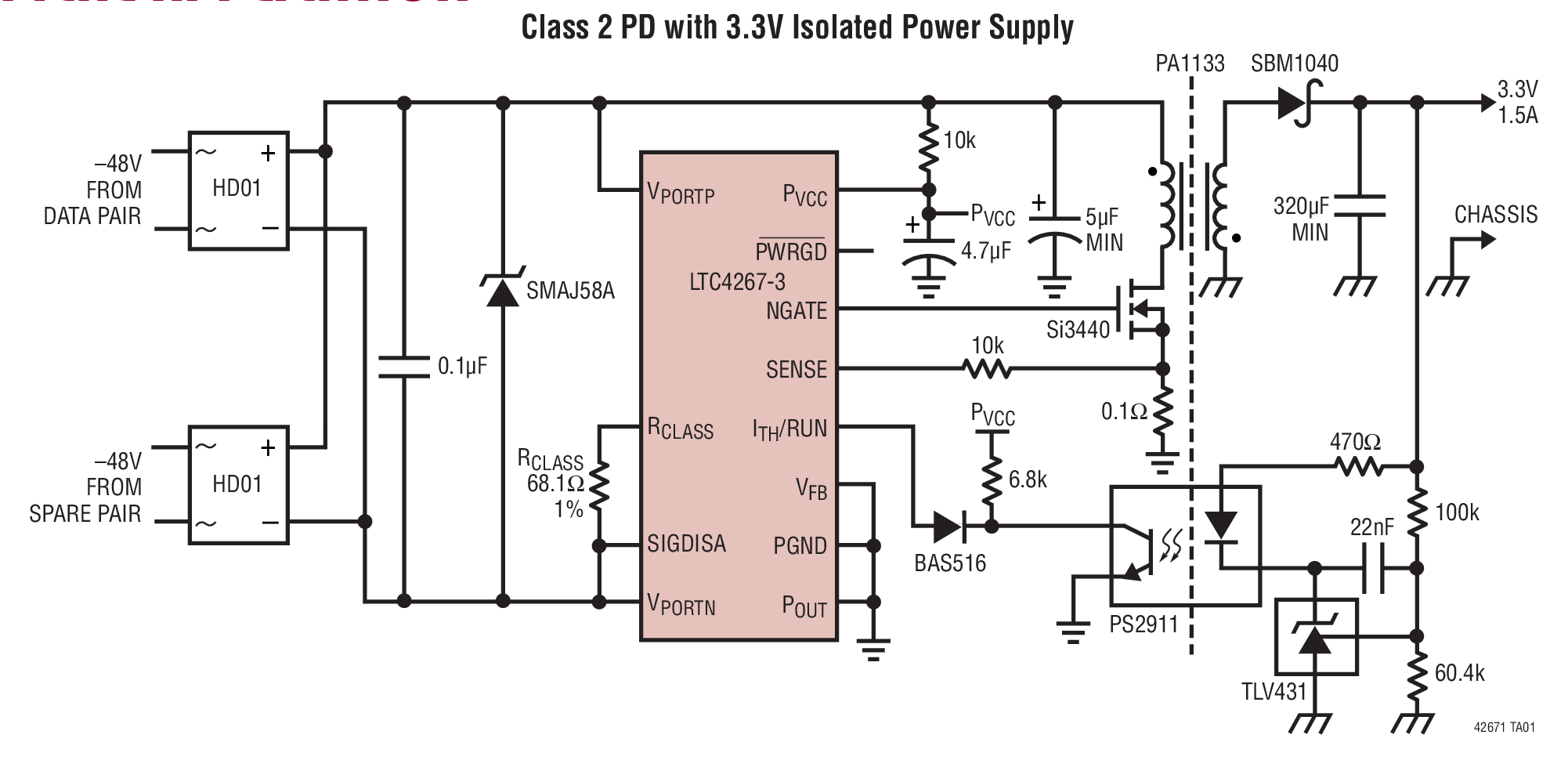

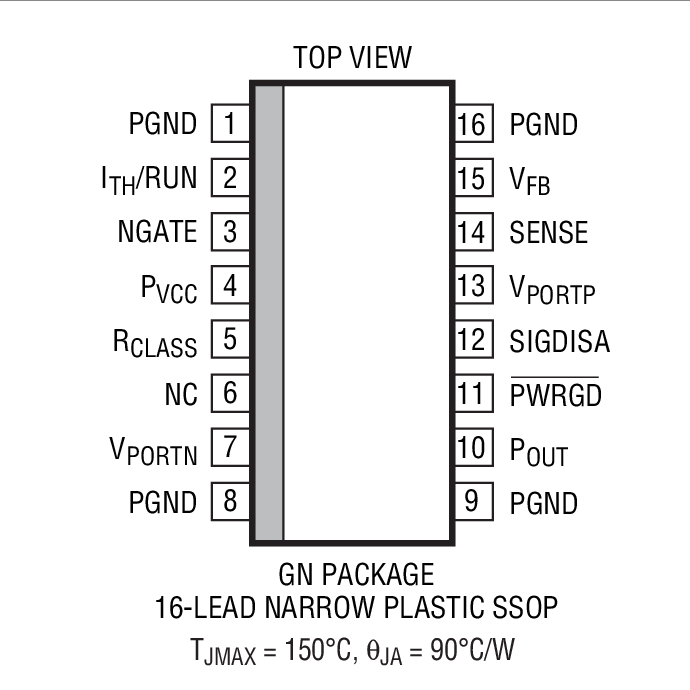

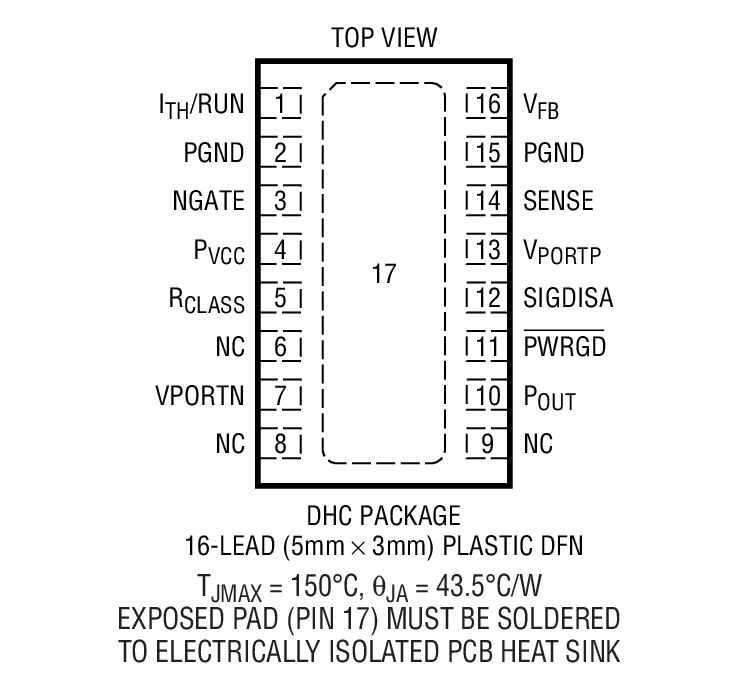

The LTC4267-3 is available in a space saving, low profile 16-pin SSOP or DFN packages.

Applications

• IP Phone Power Management
• Wireless Access Points
• Security Cameras
• Power over Ethernet
