LTC3897

RECOMMENDED FOR NEW DESIGNS

PolyPhase Synchronous Boost Controller with Input/Output Protection

Analog Devices LTC3897 Product Info

10 February 2026 6

Features

Input Supply Range: 4.5V to 65V (Up to 75V Surge)
Reverse Input Protection to –40V
In-Rush Current Control, Overcurrent Protection and Output Disconnect for Boost Converter
Input Voltage Surge Protection with Adjustable Clamp Voltage
Onboard Ideal Diode Controller

Low Quiescent Current: 55µA
2-Phase Operation Reduces Required Input and Output Capacitance and Noise
Output Voltage Up to 60V
Adjustable Gate Drive Level 5V to 10V (OPTI-DRIVE) for Logic-Level or Standard Threshold FETs
No External Bootstrap Diodes Required

Part details & applications

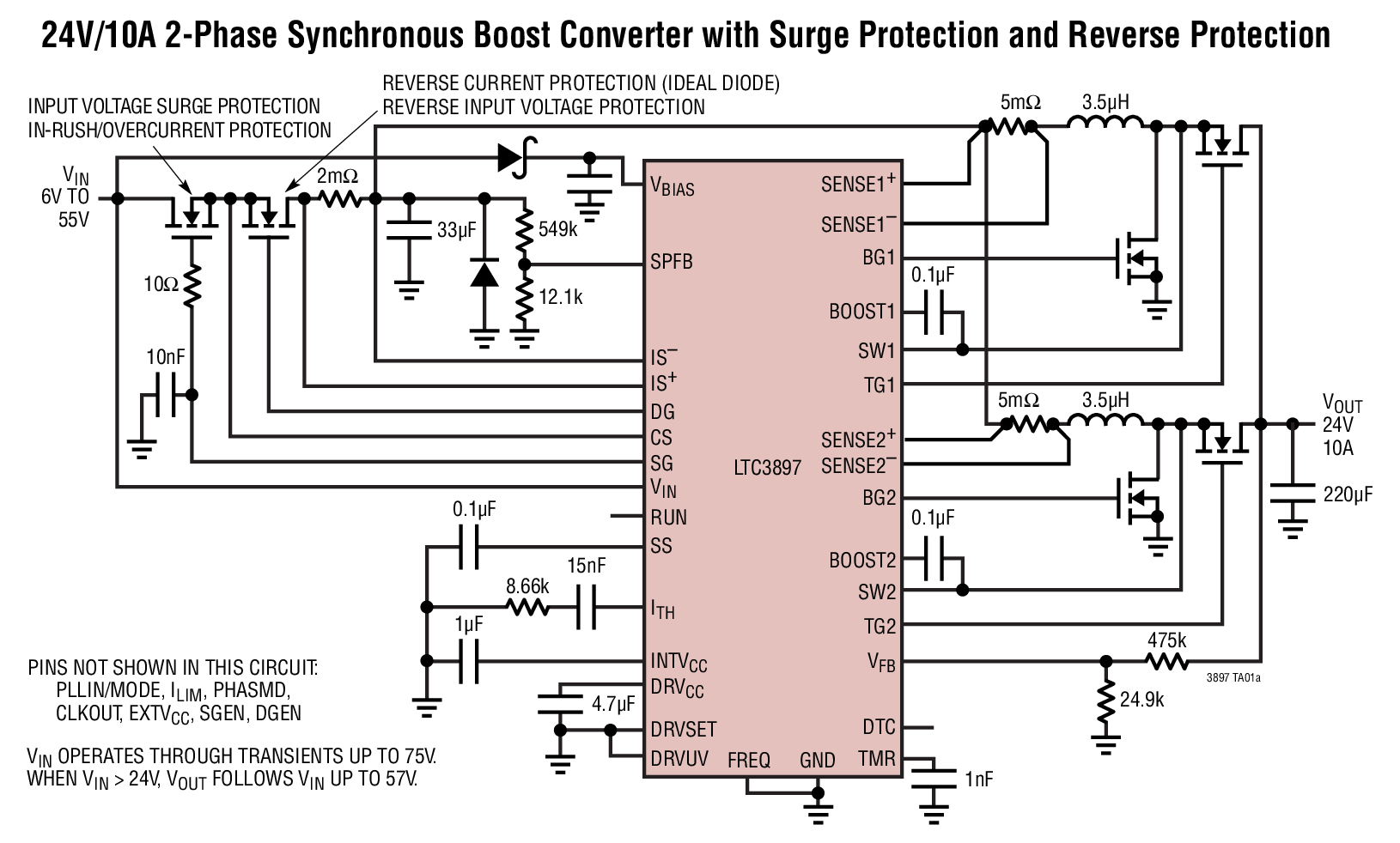

The LTC3897 is a synchronous boost DC/DC controller with surge stopper and ideal diode controller.

The boost controller drives two N-channel power MOSFET stages out-of-phase to reduce input and output capacitor requirements, allowing the use of smaller inductors than the single-phase equivalent. Synchronous rectification reduces power loss and eases thermal requirements.

The surge stopper controls the gate of an external N-channel MOSFET to protect against high voltage input transients and provides in-rush current control, overcurrent protection and output disconnect for the boost converter. The integrated ideal diode controller drives another N-channel MOSFET to replace a Schottky diode for reverse input protection and voltage holdup or peak detection. It controls the forward voltage drop across the MOSFET and minimizes reverse current flow.

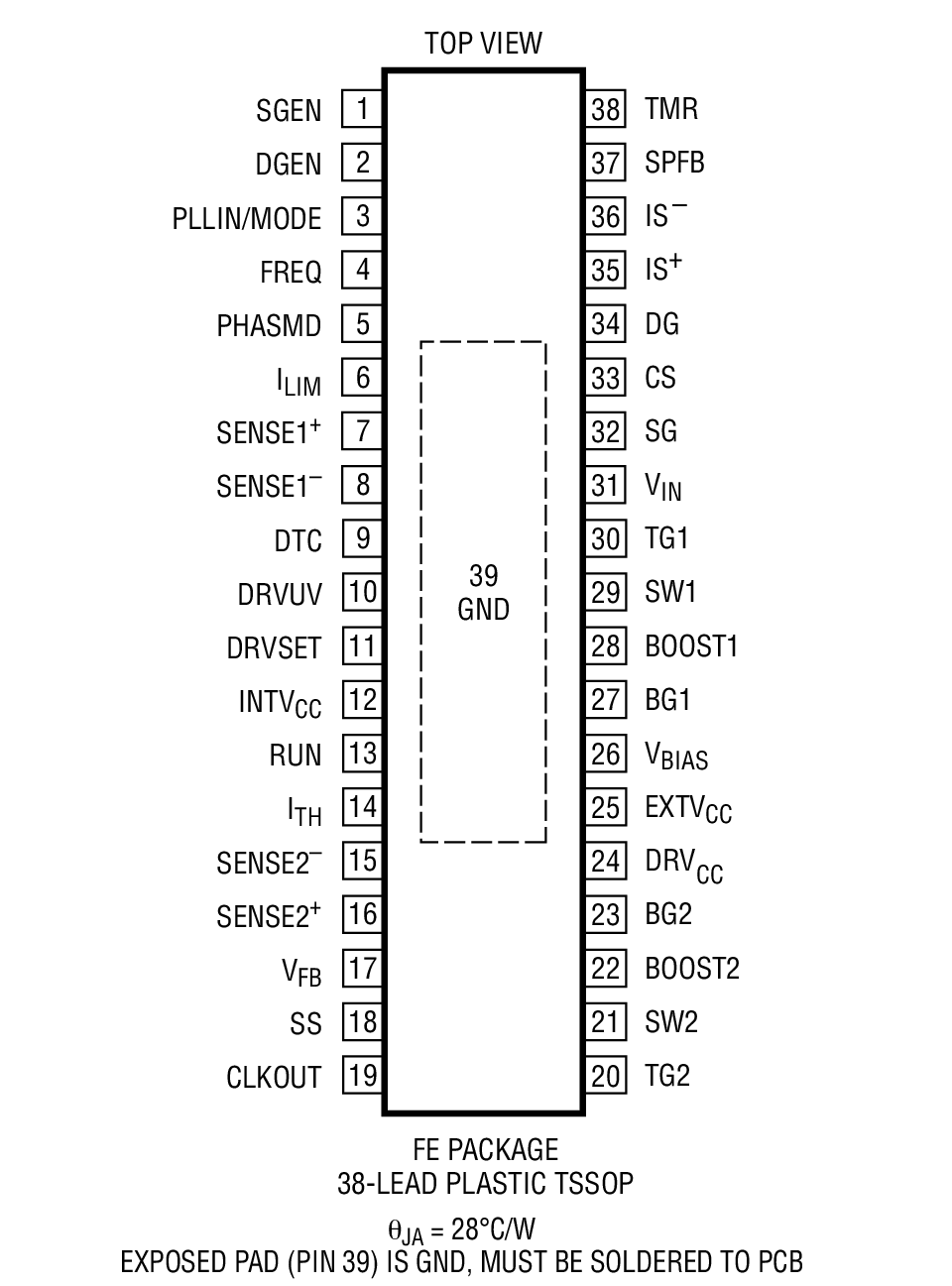

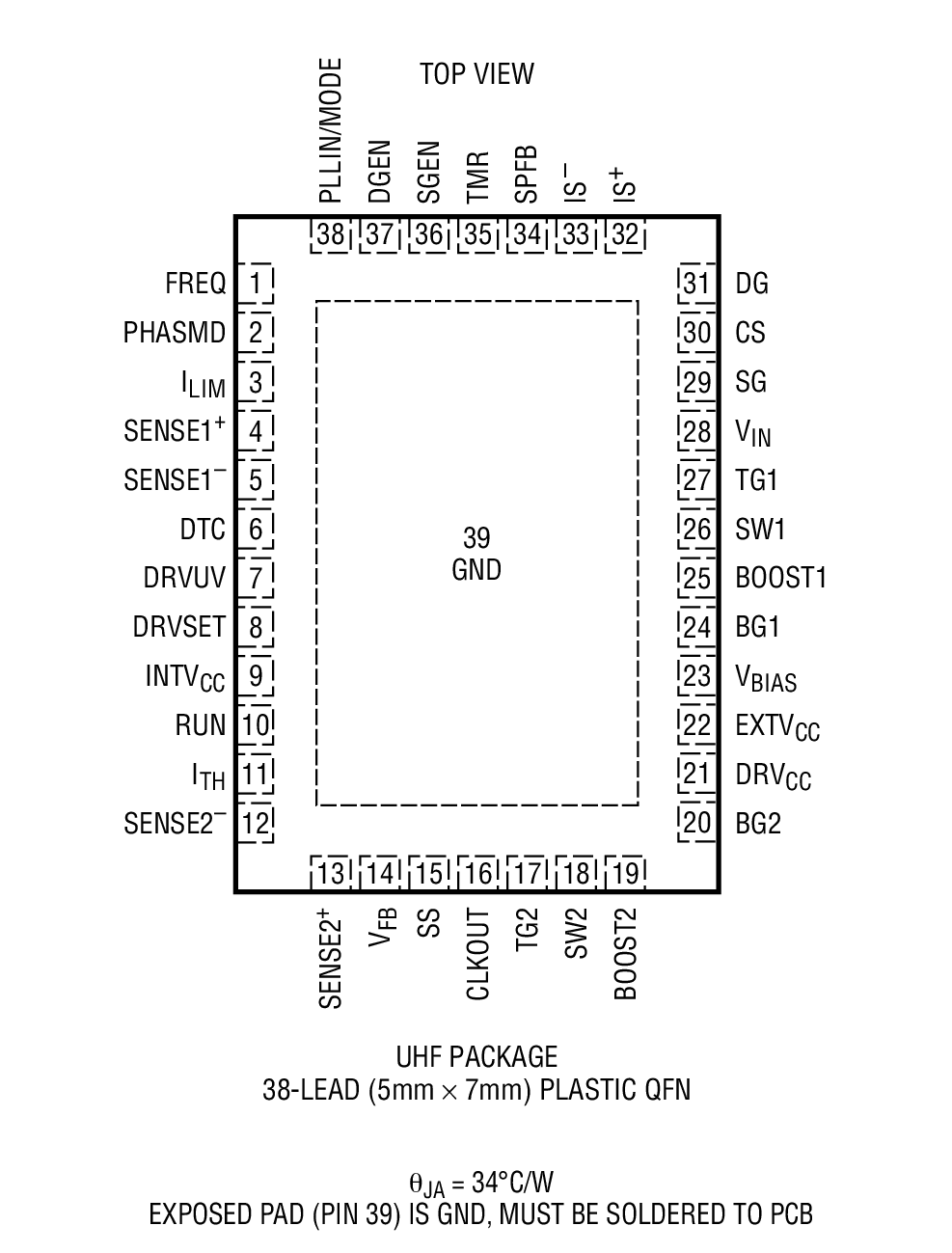

The LTC3897 is available in thermally-enhanced 38-pin leadless QFN or 38-lead TSSOP packages.

Applications

Industrial
Automotive
Military/Avionics
