LTC3882

RECOMMENDED FOR NEW DESIGNS

Dual Output PolyPhase Step-Down DC/DC Voltage Mode Controller with Digital Power System Management

Analog Devices LTC3882 Product Info

10 February 2026 6

Features

PMBus/I²C Compliant Serial Interface
- Monitor Voltage, Current, Temperature and Faults
- Digitally Programmable Voltage, Current Limit, Soft-Start/Stop, Sequencing, Margining, AVP and UV/OV Thresholds
3V ≤ VINSNS ≤ 38V, 0.5V ≤ V_OUT ≤ 5.25V
±0.5% Output Voltage Accuracy
Programmable PWM Frequency or External Clock Synchronization from 250kHz to 1.25MHz

Accurate PolyPhase^® Current Sharing
Internal EEPROM with Fault Logging and ECC
IC Supply Range: 3V to 13.2V
Resistor or Inductor DCR Current Sensing
Optional Resistor Programming for Key Parameters

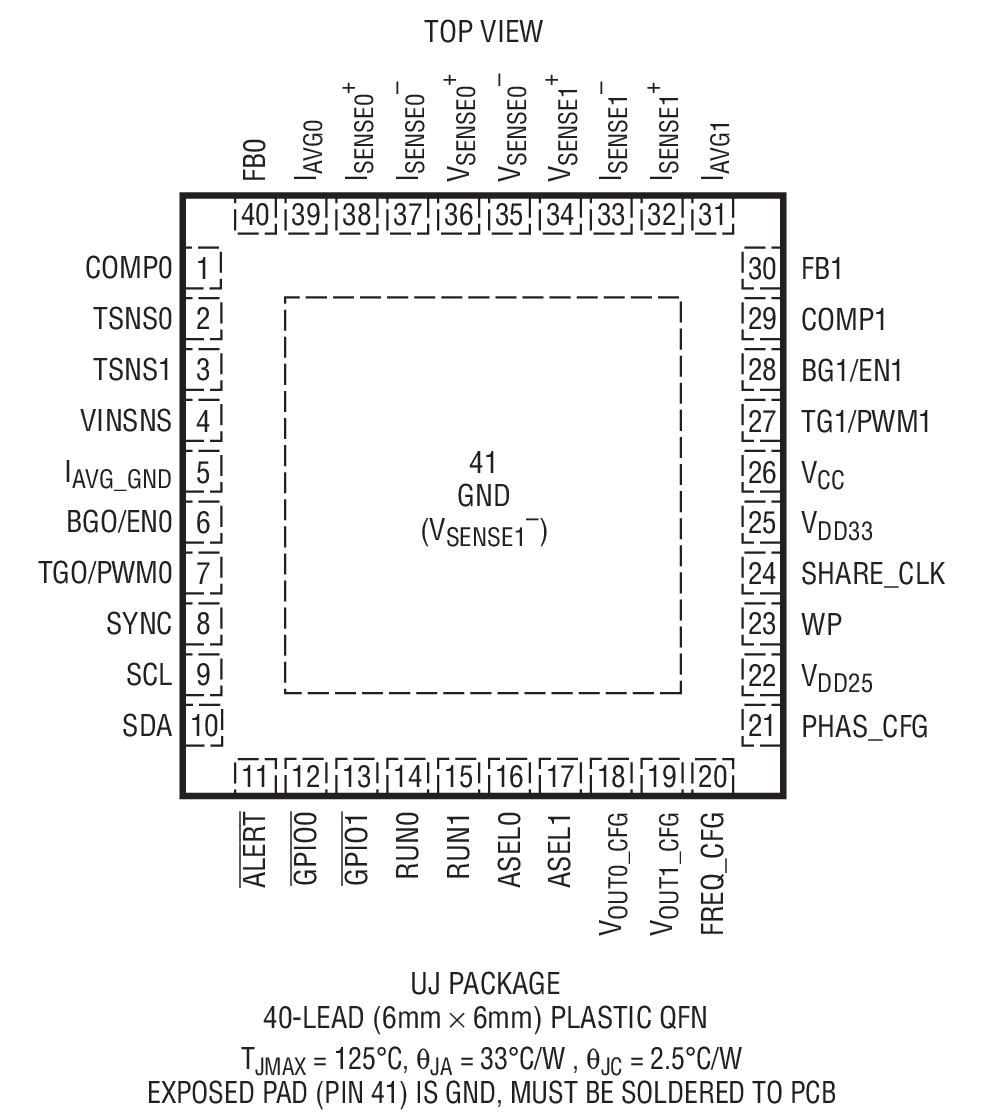

40-Pin (6mm × 6mm) QFN Package
AEC-Q100 Qualified for Automotive Applications

Part details & applications

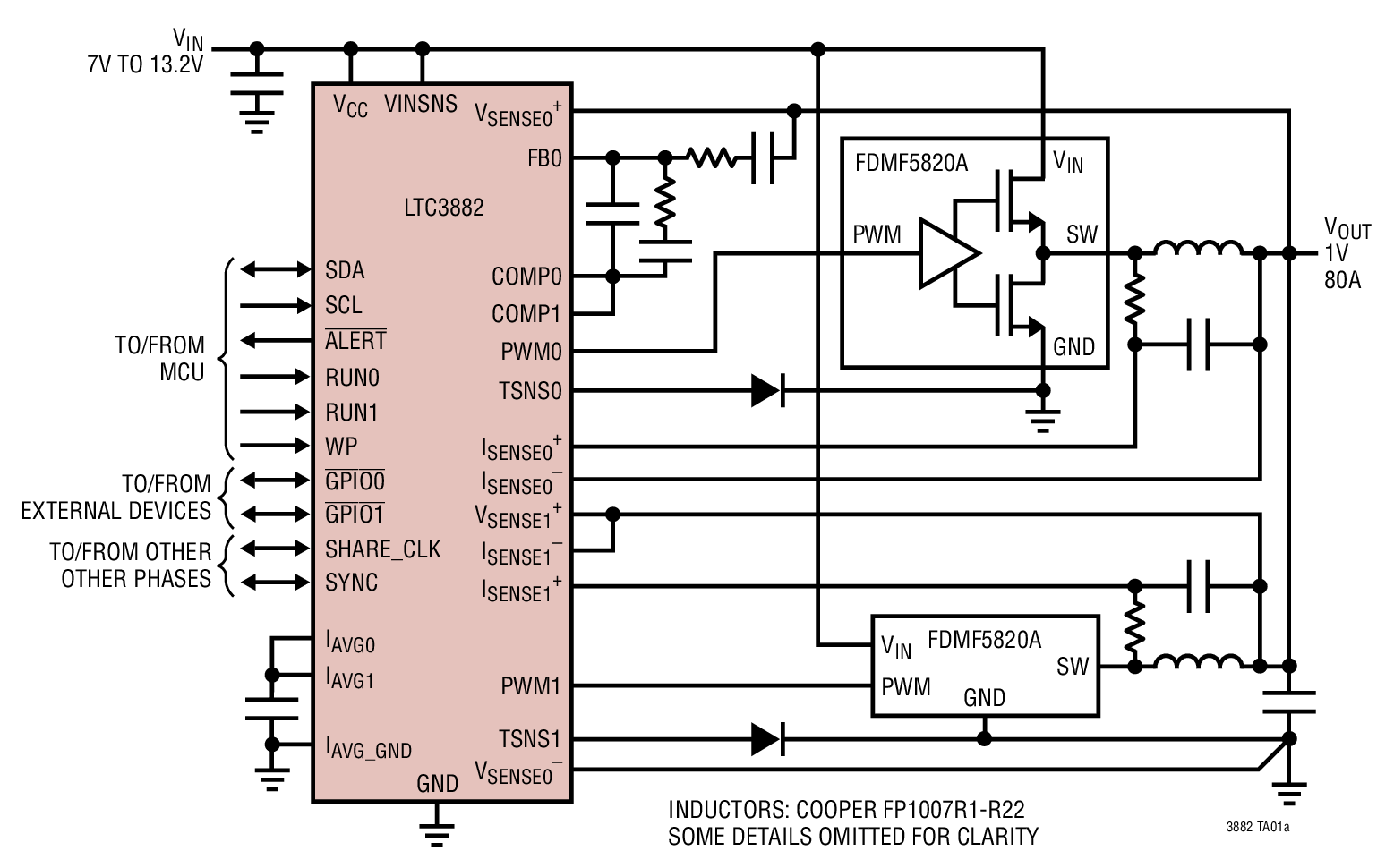

The LTC3882 is a dual, PolyPhase DC/DC synchronous step-down switching regulator controller with PMBus compliant serial interface. It uses a constant frequency, leading-edge modulation, voltage mode architecture for excellent transient response and output regulation. Each PWM channel can produce output voltages from 0.5V to 5.25V using a wide range of 3.3V compatible power stages, including power blocks, DrMOS or discrete FET drivers. Up to four LTC3882s can operate in parallel for 2-, 3-, 4-, 6- or 8-phase operation.

LTC3882 system configuration and monitoring is supported by the LTpowerPlay^® software tool. The device’s serial interface can be used to read back input voltage, output voltage and current, temperature and fault status. A wide range of operating parameters can be set via the digital interface or stored in internal EEPROM for use at power up. Switching frequency and phase, output voltage and device address can also be programmed using external configuration resistors.


	PWM Enable Output	TG/BG Control	HW Write Protect	Dedicated PGOOD	Differential V_OUT Sense
LTC3882	Yes	Yes< Subscribe to Welllinkchips ! Your Name * Email Subscribe Popular Posts ● Analog Devices MAX38904B Product Info ● Analog Devices LT3008 Product Info ● Analog Devices LT1118 Product Info ● Analog Devices MAX6791 Product Info ● Analog Devices MAX604 Product Info ● Analog Devices MAX38903C Product Info ● Analog Devices MAX25301B Product Info ● Analog Devices ADP5030 Product Info ● Analog Devices MAX8878 Product Info ● Analog Devices LT3042 Product Info Featured Parts More > LTC6803HG-4#3ZZTRPBF Analog Devices Inc. Submit a request Submit a request Our salesman will contact you by email after submitting the message! * Part Number: * Quantity: * E-mail: Target price: Name: Company name: Please fill the item with * SUBMITTED SUCCESSFULLY！ Our Salesman will respond within 24 hours. Please pay attention to your mailbox. Thank you for your advice. IRS2092STRPBF Infineon Technologies * Qty: Add RFQ List RFQ Directly DON'T MISS OUT Shipping For Free Submit the inquiry in this window, you can get a chance to free shipping. 1.Submit your parts requirements and fill in your email address. 2.Our sales staff gets in touch with you and communicate the details of orders. OK,let’s see NO,keep going In order to provide you with the best website experience, we use cookies. For more information about how we use cookies and manage your preferences, please refer to our privacy policy. By using our website, you agree to use cookies. CONTACT US [email protected] Company address WELL LINK CHIPS GROUP CO.,LIMITED FLAT/RM 1802 BEVERLY HOUSE 93-107 LOCKHART ROAD WANCHAI HK FOLLOW US © 2022 WELL LINK CHIPS GROUP CO., LIMITED All Rights Reserved. Privacy Policy \| Terms and Conditions Send Enquiry SEND e-MAIL Office hour from 9am to 6pm , Monday through Friday, UTC/GMT +8
