Analog Devices MAX20804 Product Info

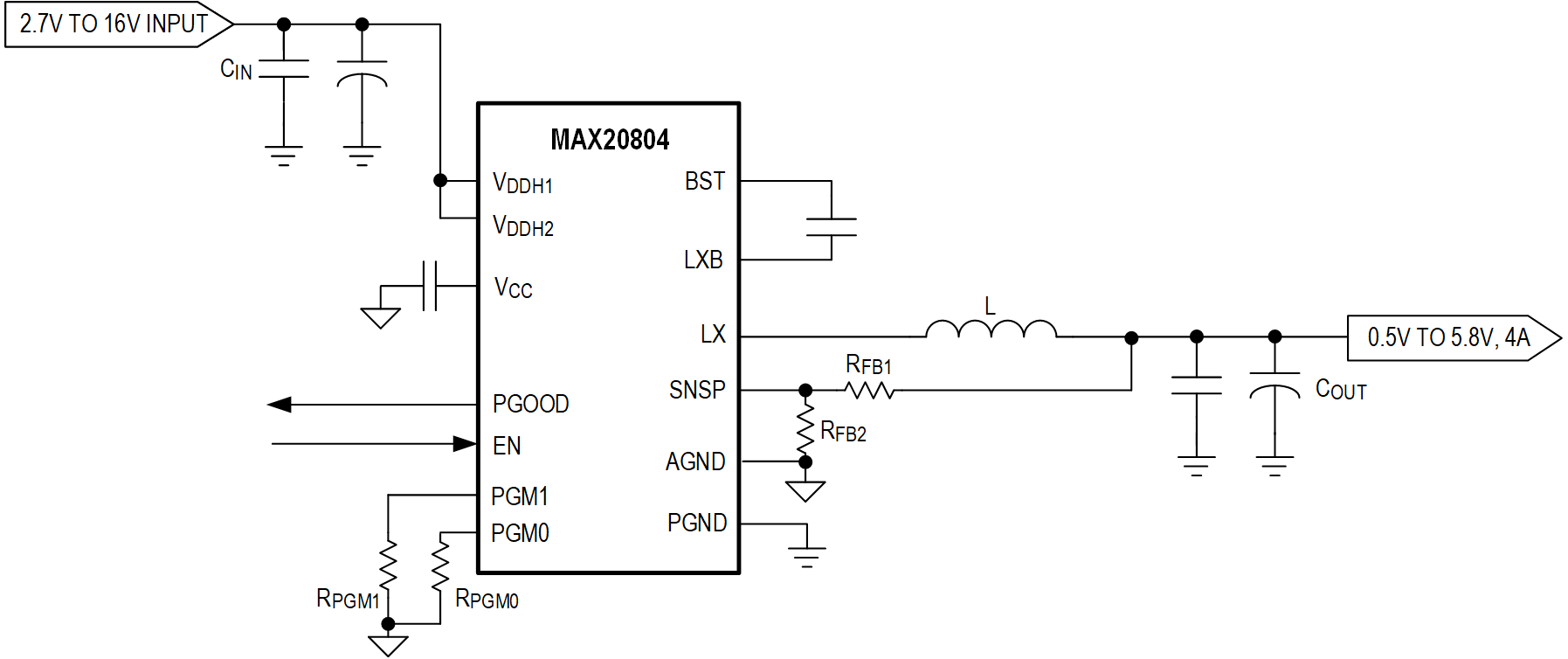

The MAX20804 is a fully integrated, highly efficient, step-down DC-DC switching regulator. It is able to operate from 2.7V to 16V input supplies, and each output can be regulated from 0.5V to 5.8V, delivering up to 4A of load current.

The switching frequency of this device can be configured from 500kHz to 3.0MHz and provides the capability of optimizing the design in terms of solution size and performance.

The MAX20804 utilizes fixed-frequency, current-mode control with internal compensation. The MAX20804 features a selectable advanced modulation scheme (AMS) to provide improved dynamic load-transient performance. The device also features selectable discontinuous current-mode (DCM) operation to improve light load efficiency. Operation settings and configurable features can be selected by connecting pin-strap resistors from the PGM_ pins to ground.

The MAX20804 has an internal 1.8V LDO output to power the gate drives and internal circuitry (V_CC).

The MAX20804 integrates multiple protections including positive and negative overcurrent protection, output overvoltage protection, and overtemperature protection to ensure a robust design.

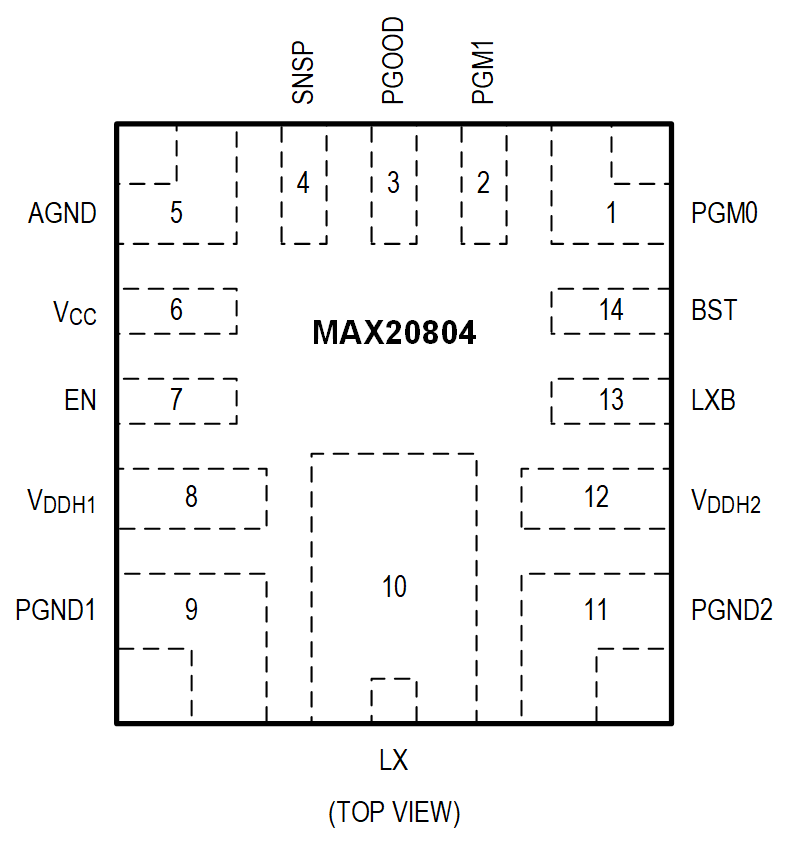

The MAX20804 is available in a compact 3.0mm x 2.5mm FC2QFN package that supports -40°C to +150°C junction temperature operation. It is footprint compatible with the MAX20806 and MAX20807.

APPLICATIONS

• Communications Equipment
• Networking Equipment
• Servers and Storage Equipment
• Point-of-Load Voltage Regulators
