LTC3862

PRODUCTION

Multi-Phase Current Mode Step-Up DC/DC Controller

Analog Devices LTC3862 Product Info

10 February 2026 9

Features

Wide V_IN Range: 4V to 36V Operation
2-Phase Operation Reduces Input and Output Capacitance
Fixed Frequency, Peak Current Mode Control
5V Gate Drive for Logic-Level MOSFETs
Adjustable Slope Compensation Gain
Adjustable Max Duty Cycle (Up to 96%)
Adjustable Leading Edge Blanking
±1% Internal Voltage Reference
Programmable Operating Frequency with One External Resistor (75kHz to 500kHz)

Phase-Lockable Fixed Frequency 50kHz to 650kHz
SYNC Input and CLKOUT for 2-, 3-, 4-, 6- or 12-Phase Operation (PHASEMODE Programmable)
Internal 5V LDO Regulator

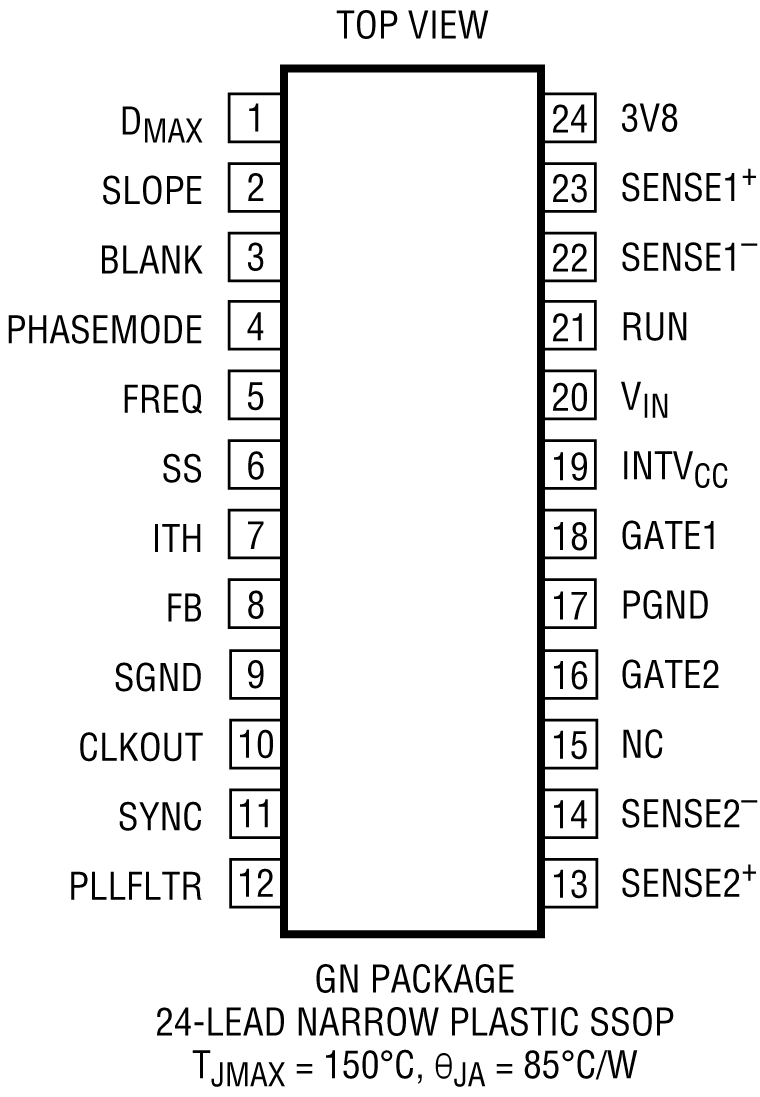

24-Lead Narrow SSOP Package

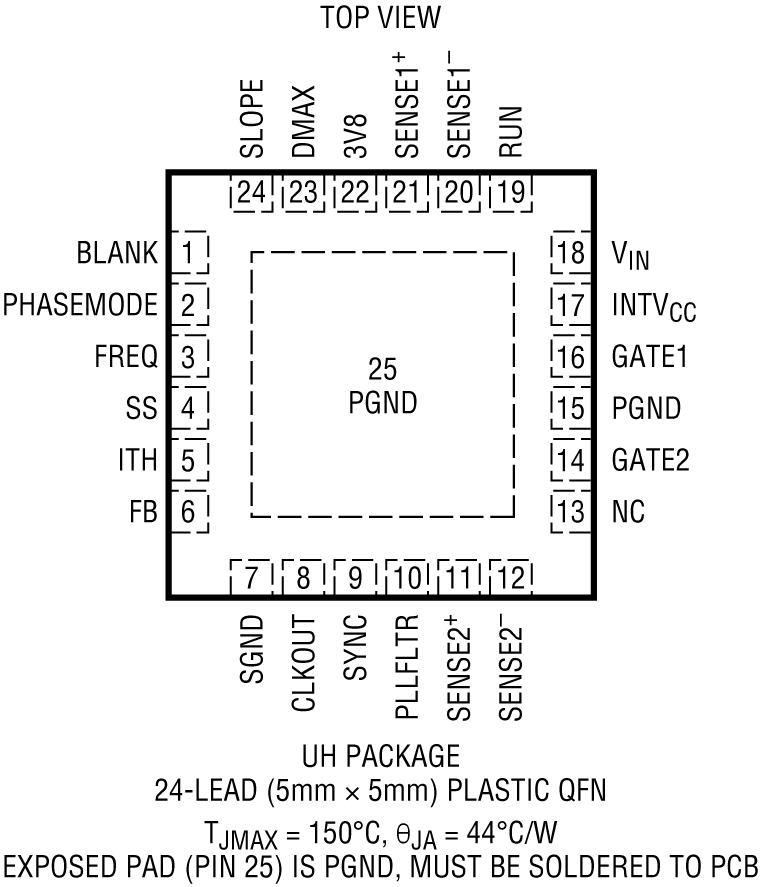

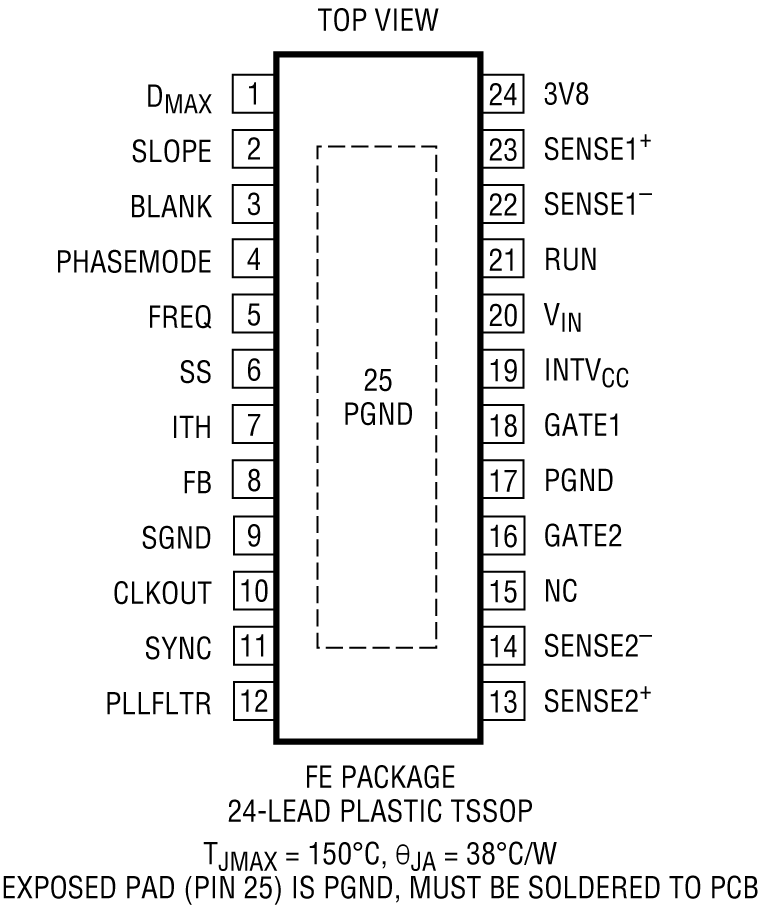

5mm × 5mm QFN with 0.65mm Lead Pitch and 24-Lead Thermally Enhanced TSSOP Packages
AEC-Q100 Qualified for Automotive Applications

Part details & applications

The LTC3862 is a two phase constant frequency, current mode boost and SEPIC controller that drives N-channel power MOSFETs. Two phase operation reduces system filtering capacitance and inductance requirements.

The operating frequency can be set with an external resistor over a 75kHz to 500kHz range and can be synchronized to an external clock using the internal PLL. Multi-phase operation is possible using the SYNC input, the CLKOUT output and the PHASEMODE control pin allowing 2-, 3-, 4-, 6- or 12-phase operation.

Other features include an internal 5V LDO with undervoltage lockout protection for the gate drivers, a precision RUN pin threshold with programmable hysteresis, soft-start and programmable leading edge blanking and maximum duty cycle.
