Analog Devices LTC3789 Product Info

• Single Inductor Architecture Allows V_IN Above, Below or Equal to the Regulated V_OUT
• Programmable Input or Output Current
• Wide V_IN Range: 4V to 38V
• 1% Output Voltage Accuracy: 0.8V < V_OUT < 38V

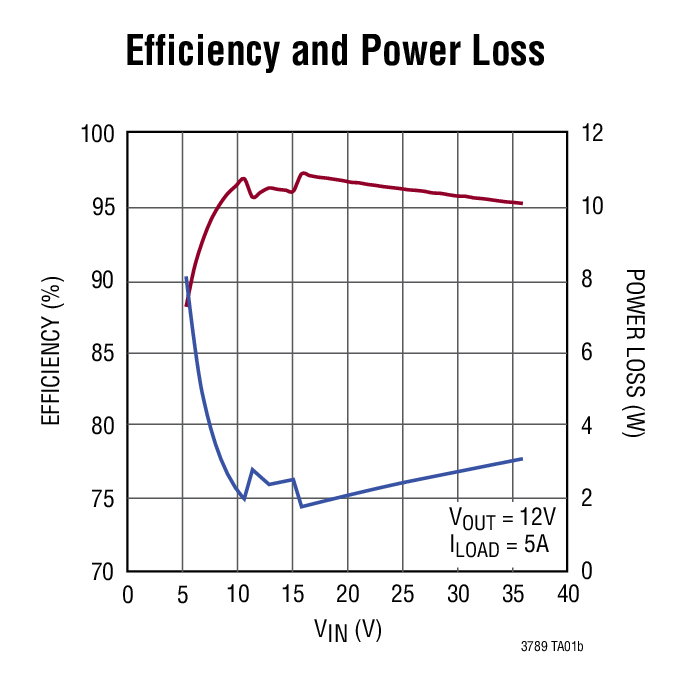

• Synchronous Rectification: Up to 98% Efficiency
• Current Mode Control
• Phase-Lockable Fixed Frequency: 200kHz to 600kHz
• No Reverse Current During Start-Up
• Power Good Output Voltage Monitor
• Internal 5.5V LDO
• Quad N-Channel MOSFET Synchronous Drive
• V_OUT Disconnected from V_IN During Shutdown
• True Soft-Start and V_OUT Short Protection, Even in Boost Mode

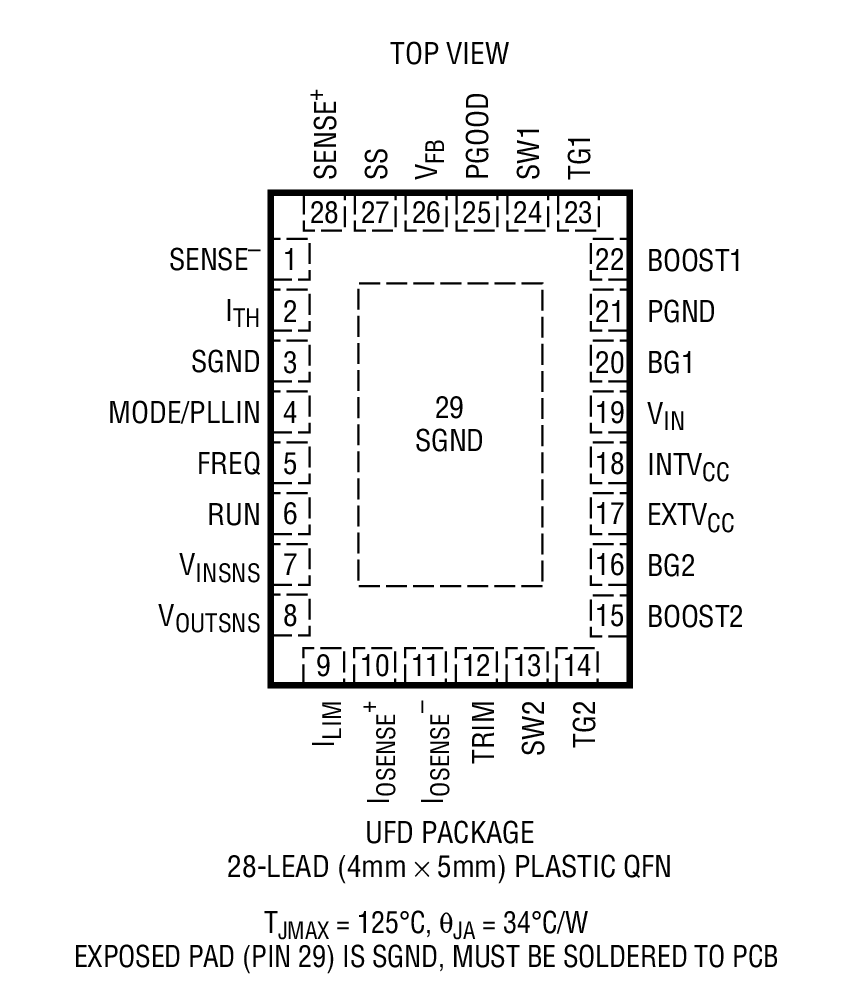

• Available in 28-Lead QFN (4mm × 5mm) and 28-Lead SSOP Packages

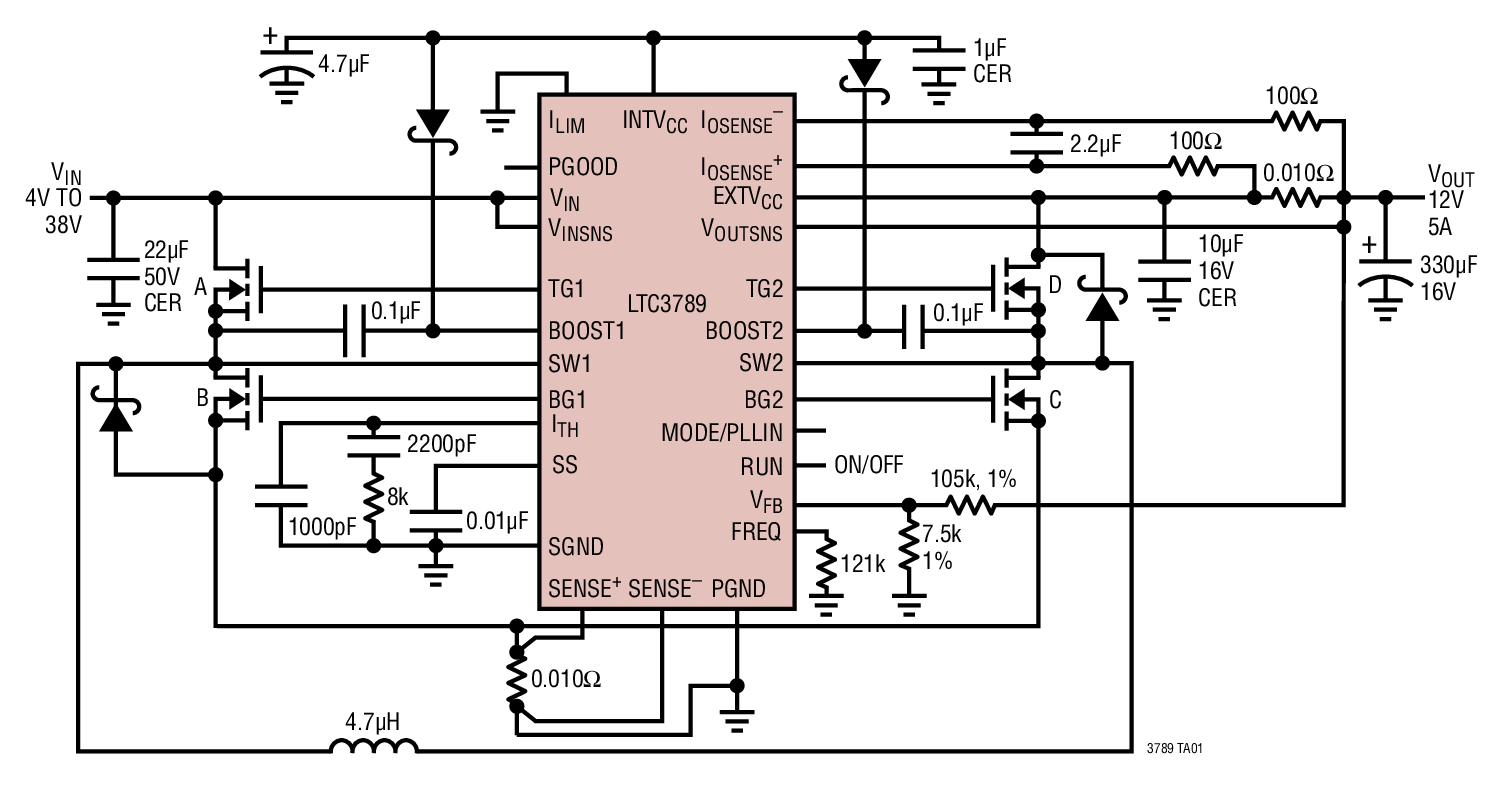

The LTC3789 is a high performance buck-boost switching regulator controller that operates from input voltages above, below or equal to the output voltage. The constant-frequency, current mode architecture allows a phase-lockable frequency of up to 600kHz, while an output current feedback loop provides support for battery charging. With a wide 4V to 38V (40V maximum) input and output range and seamless, low noise transitions between operating regions, the LTC3789 is ideal for automotive, telecom and battery-powered systems.

The operating mode of the controller is determined through the MODE/PLLIN pin. The MODE/PLLIN pin can select between pulse-skipping mode and forced continuous mode operation and allows the IC to be synchronized to an external clock. Pulse-skipping mode offers high efficiency and low ripple at light loads, while forced continuous mode operates at a constant frequency for noise-sensitive applications.

A PGOOD pin indicates when the output is within 10% of its designed set point. The LTC3789 is available in low profile 28-pin 4mm × 5mm QFN and narrow SSOP packages.

Applications

• Automotive Systems
• Distributed DC Power Systems
• High Power Battery-Operated Devices
• Industrial Control
