Analog Devices LTC3722 Product Info

• Adaptive or Manual Delay Control for Zero Voltage Switching Operation
• Adjustable Synchronous Rectification Timing for Highest Efficiency
• Adjustable Maximum ZVS Delay
• Adjustable System Undervoltage Lockout Hysteresis
• Programmable Leading Edge Blanking
• Very Low Start-Up and Quiescent Currents
• Current Mode (LTC3722-1) or Voltage Mode (LTC3722-2) Operation
• Programmable Slope Compensation
• V_CC UVLO and 25mA Shunt Regulator
• 50mA Output Drivers
• Soft-Start, Cycle-by-Cycle Current Limiting and Hiccup Mode Short-Circuit Protection
• 5V, 15mA Low Dropout Regulator

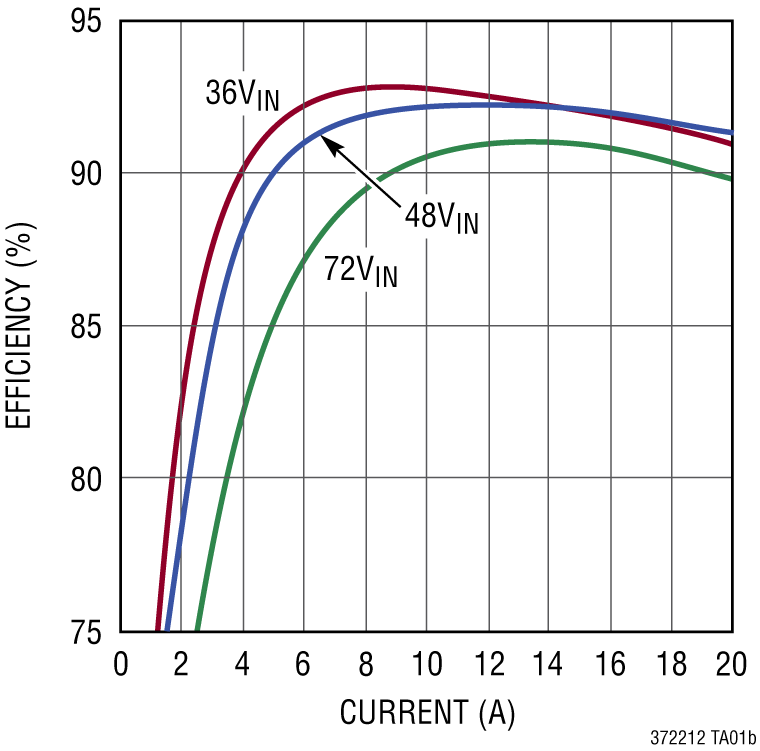

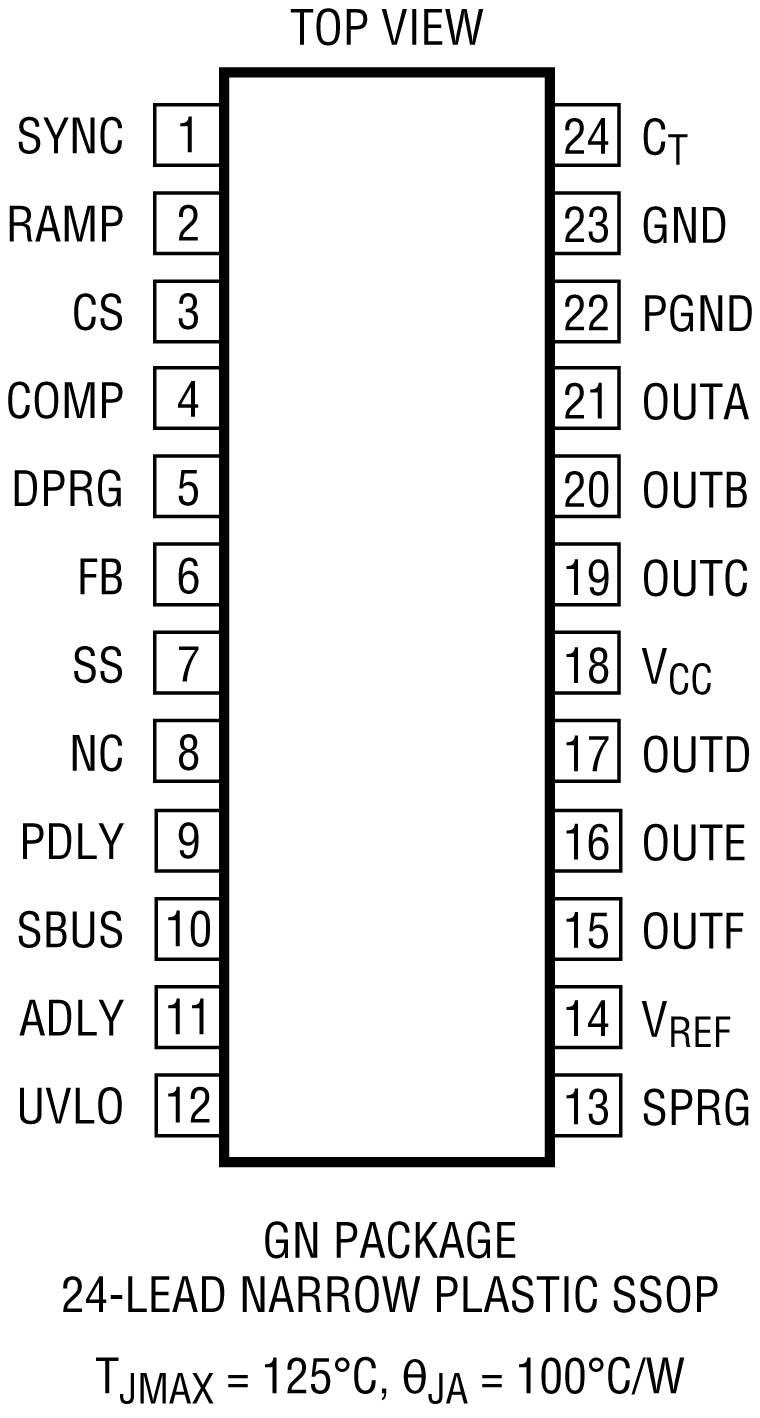

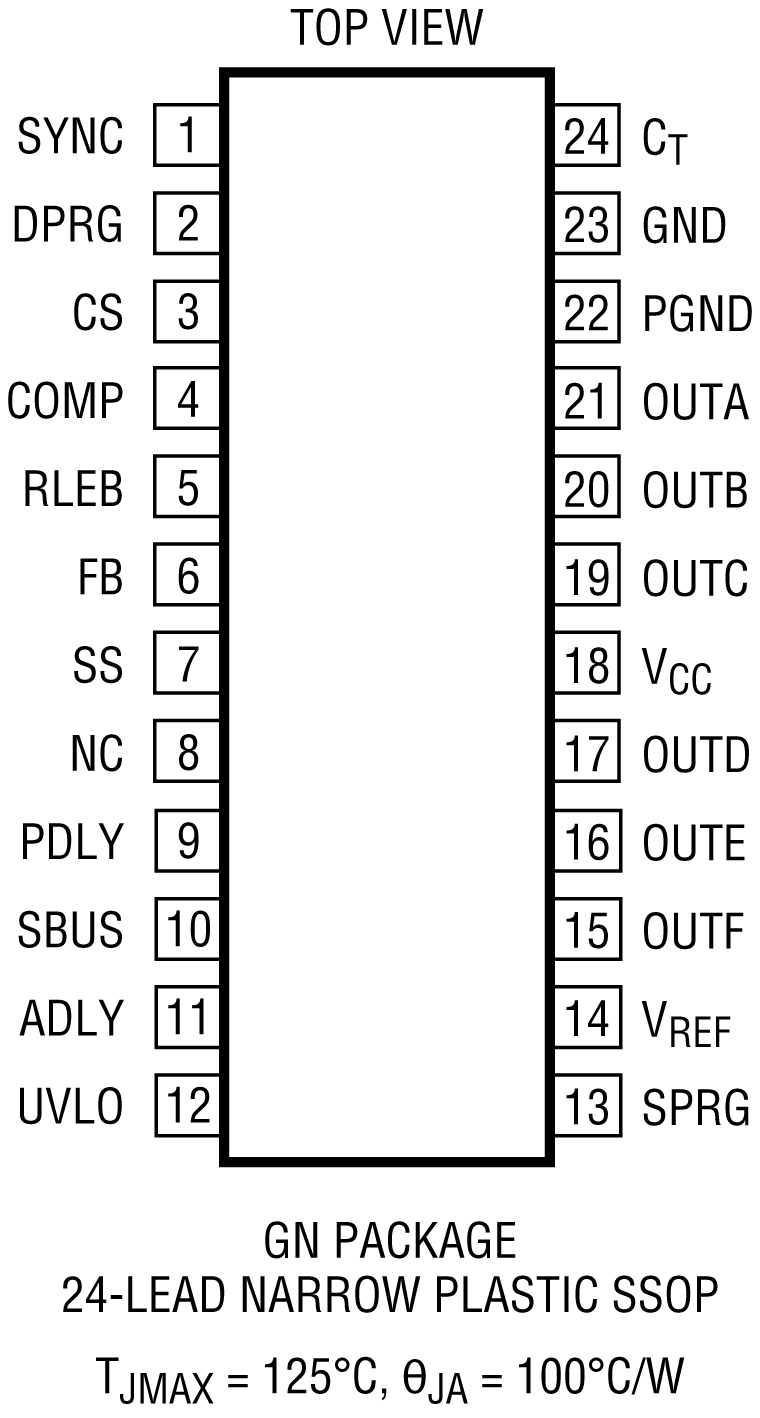

• 24-Pin Surface Mount GN Package

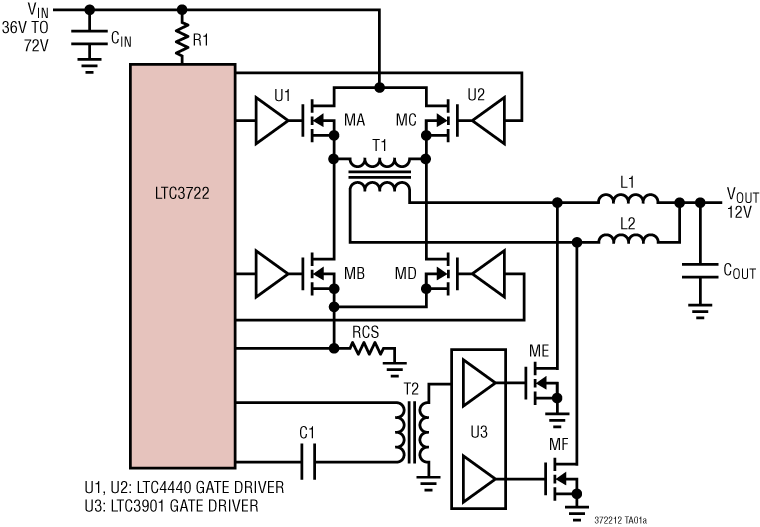

The LTC3722-1/LTC3722-2 phase-shift PWM controllers provide all of the control and protection functions necessary to implement a high efficiency, zero voltage switched (ZVS), full bridge power converter. Adaptive ZVS circuitry delays the turn-on signals for each MOSFET independent of internal and external component tolerances. Manual delay set mode enables secondary side control operation or direct control of switch turn-on delays.

The LTC3722-1/LTC3722-2 feature adjustable synchronous rectifier timing for optimal efficiency. A UVLO program input provides accurate system turn-on and turn-off voltages. The LTC3722-1 features peak current mode control with programmable slope compensation and leading edge blanking, while the LTC3722-2 employs voltage mode control.

The LTC3722-1/LTC3722-2 feature extremely low operating and start-up currents. Both devices include a full range of protection features and are available in the 24-pin surface mount GN package.

Applications

• Telecommunications, Infrastructure Power Systems
• Distributed Power Architectures
• Server Power Supplies
