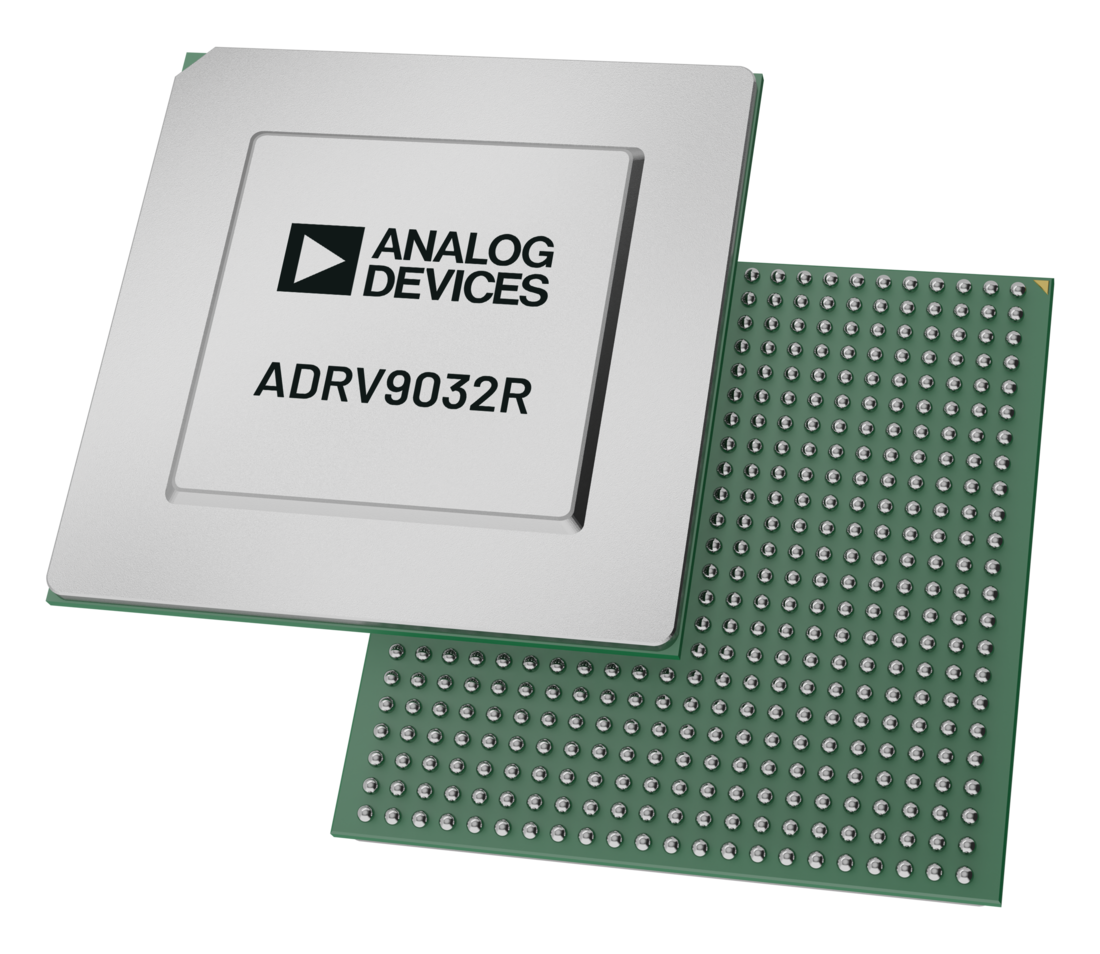

ADRV9032R

RECOMMENDED FOR NEW DESIGNS

Integrated 2T2R TDD and FDD RadioVerse Transceiver with Dual Observation Paths

Analog Devices ADRV9032R Product Info

10 February 2026 7

Features

2 differential transmitters
2 differential receivers
2 differential observation receivers
LO tunable range: 450 MHz to 7125 MHz
RF range: 350 MHz to 7225 MHz1
Maximum transmitter large-signal bandwidth: 200 MHz
Maximum transmitter synthesis bandwidth: 450 MHz
Maximum receiver signal bandwidth: 200 MHz
Maximum observation receiver signal bandwidth: 450 MHz

Fully integrated fractional-N RF synthesizer
Fully integrated clock synthesizer
Dual external LO inputs supporting operation up to 6 GHz
JESD204B and JESD204C digital interface: up to 16.5 Gbps
TDD and FDD operation
Simplifying thermal and power consumption challenges
- 4.82 W power consumption for the TDD mode, enabled use case with 200 MHz iBW/OBW2

Part details & applications

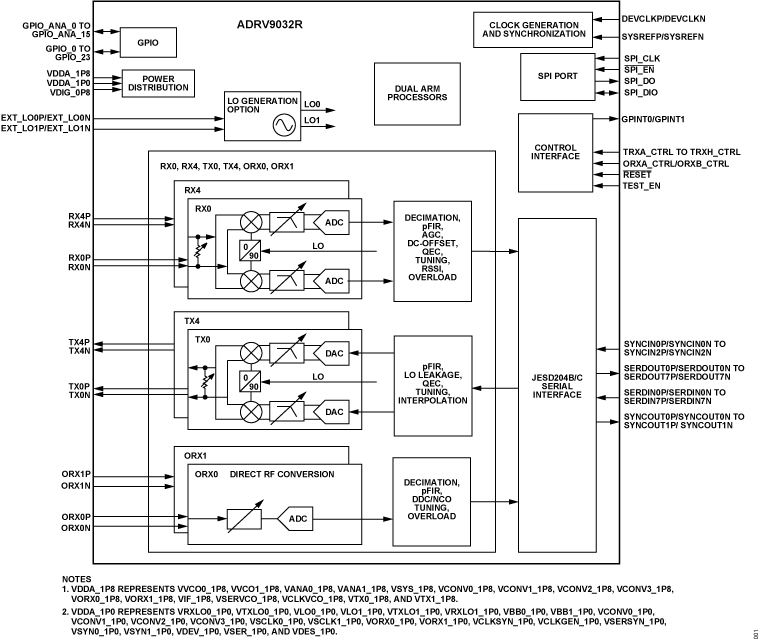

The ADRV9032R is a highly integrated, RF agile transceiver offering two transmitters, two observation receivers for monitoring transmitter channels, two receivers, integrated local oscillator (LO) and clock synthesizers, and digital-signal processing functions to provide a complete transceiver solution. The device provides the high radio performance and low-power consumption demanded by cellular infrastructure applications, software-defined radios, portable instruments, and military communications.

The receiver and transmitter signal paths use a zero-IF (ZIF) architecture that provides wide bandwidth with dynamic range suitable for non-contiguous multicarrier applications. The ZIF architecture has the benefits of low power and RF and bandwidth agility. The lack of aliases and out-of-band images eliminates anti-aliasing and image filters, reducing system size and cost, and making band independent solutions possible.

Please see the Data Sheet for the full description.

APPLICATIONS

Software defined radios
Portable instrumentation
Military communications
General-purpose radios
Wireless infrastructure
TDD and FDD applications
