Analog Devices LTC3408 Product Info

• Dynamically Adjustable Output from 0.3V to 3.5V
• 600mA Output Current
• Internal 0.08Ω P-Channel MOSFET Bypass Transistor

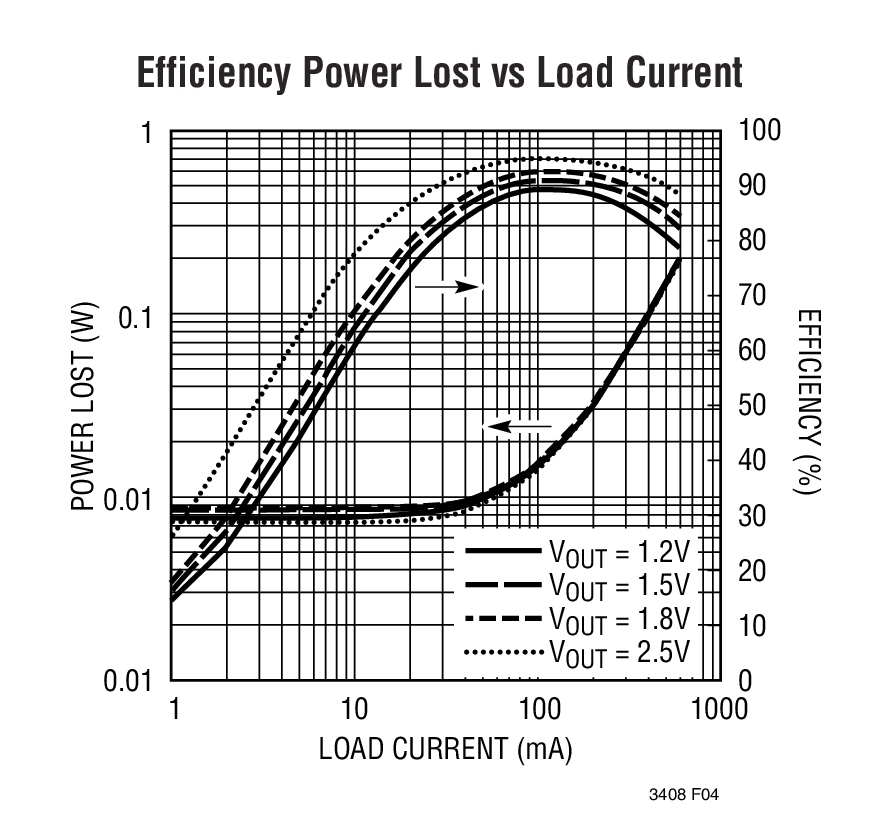

• High Efficiency: Up to 96%
• 1.5MHz Constant Frequency Operation
• No Schottky Diode Required
• Low Dropout Operation: 100% Duty Cycle
• 2.5V to 5V Input Voltage Range
• Shutdown Mode Draws <1µA Supply Current
• Current Mode Operation for Excellent Line and Load Transient Response
• Overtemperature Protected
• Available in 8-Lead 3mm x 3mm DFN Package

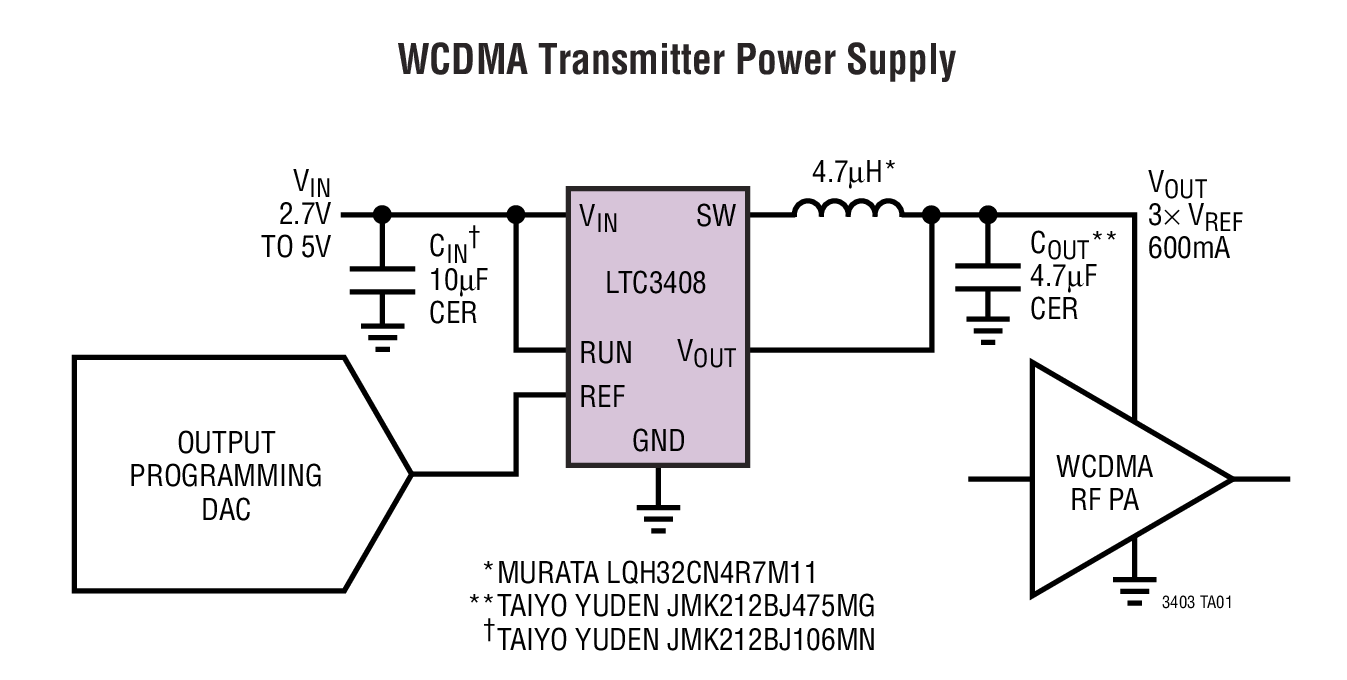

The LTC3408 is a high efficiency monolithic synchronous buck regulator optimized for WCDMA power amplifier applications. The output voltage can be dynamically programmed from 0.3V to 3.5V. At V_OUT > 3.6V an internal 0.08Ω bypass P-channel MOSFET connects V_OUT directly to V_IN, eliminating power loss through the inductor.

The input voltage range is 2.5V to 5V making the LTC3408 ideally suited for single Li-Ion battery-powered applications. 100% duty cycle provides low dropout operation, extending battery life in portable systems.

Switching frequency is internally set at 1.5MHz, allowing the use of small surface mount inductors and capacitors. The internal synchronous switch increases efficiency and eliminates the need for an external Schottky diode.

The LTC3408 is available in a low profile (0.75mm) 8-lead 3mm × 3mm DFN package.

Applications

• WCDMA Cell Phone Power Amplifiers
• Wireless Modems
