Analog Devices MX7672 Product Info

• Plug-In Replacement for AD7672
• 12-Bit Resolution and Accuracy
• Fast Conversion Time
  • MX7672_ _03 - 3µs
  • MX7672_ _05 - 5µs
  • MX7672_ _10 - 10µs
• Operates with +5V and -12V Supplies
• Buffered Reference Input
• Low 110mW Power Consumption
• Choice of +5V, +10V, or ±5V Input Ranges
• Fast 125ns Bus-Access Time

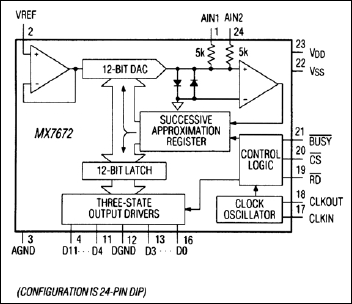

The MX7672 is a 12-bit, high-speed, BiCMOS, analog-to-digital converter (ADC) that performs conversions in as little as 3μs while consuming only 110mW of power. The MX7672 is a plug-in replacement for AD7672.

The MX7672 requires an external -5V reference. A buffered reference input minimizes reference current requirements and allows a single reference to drive several ADCs. External reference specifications can be chosen to suit the accuracy of the application. The ADC clock can be driven from either a crystal or an external clock source, such as a microprocessor (µP) clock.

Average input range is pin-selectable for 0 to +5V, 0 to +10V, or ±5V, making the ADC ideal for data-acquisition and analog input/output cards. A high-speed digital interface (125ns data-access time) with three-state data outputs is compatible with most µPs.

Applications

• High-Speed Data-Acquisition Systems
• Personal Computer I/O Boards
• Sonar and Radar Signal Processing
• Telecommunications
