Analog Devices LTC2970 Product Info

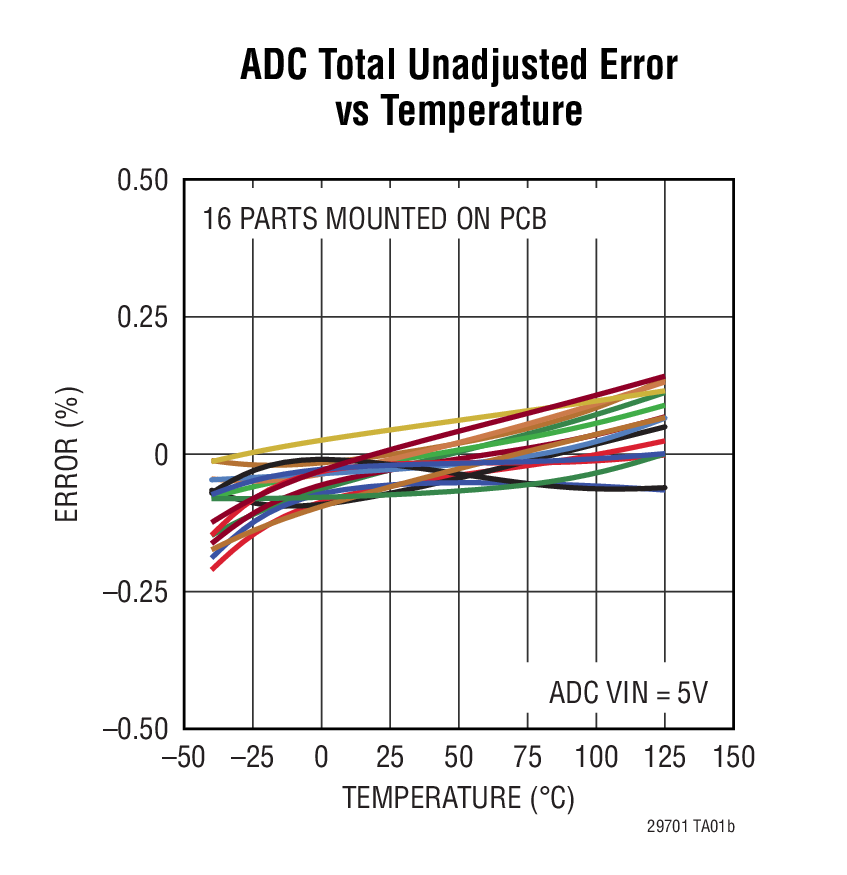

• Less Than ±0.5% Total Unadjusted Error 14-Bit ΔΣ ADC with On-Chip Reference
• Dual, 8-Bit IDACs with 1x Voltage Buffers
• Linear, Voltage Servo Adjusts Supply Voltages by Ramping IDAC Outputs Up/Down
• I²C Bus Interface (SMBus Compatible)
• Extensive, User Configurable Fault Monitoring
• On-Chip Temperature Sensor

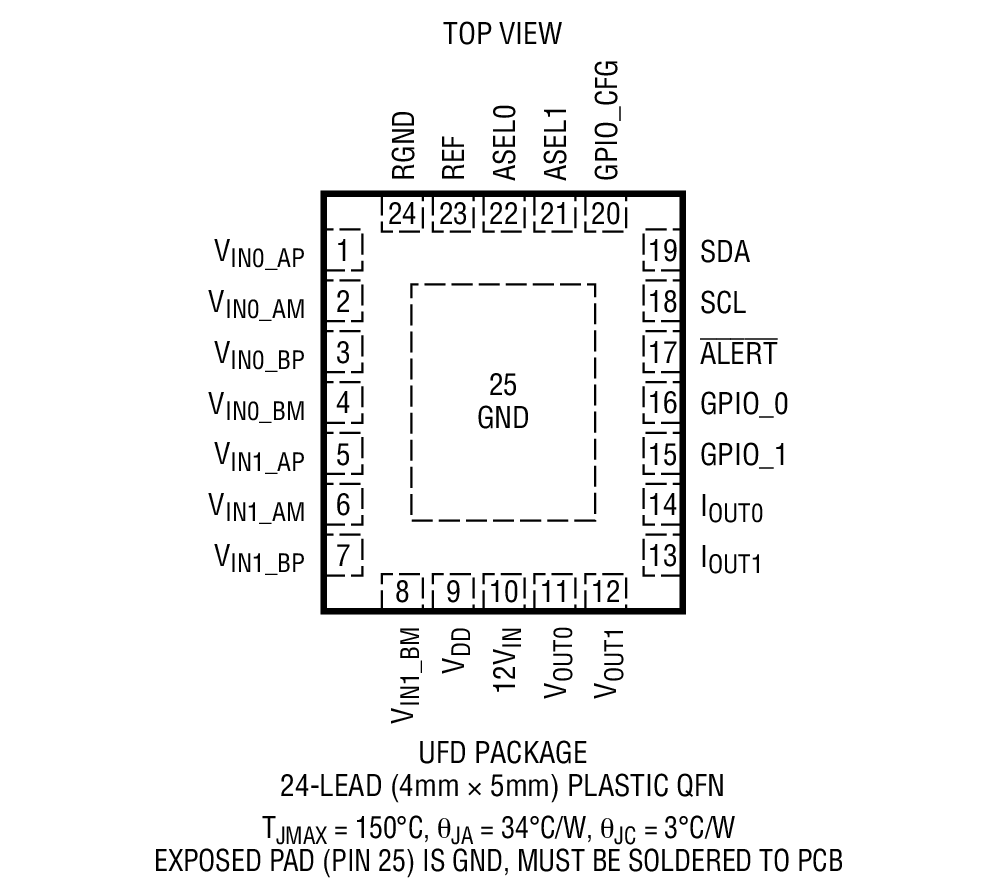

• Available in 24-Pin 4mm × 5mm QFN Package

The LTC2970 is a dual power supply monitor and margining controller with an SMBus compatible I²C bus interface. A low-drift, on-chip reference and 14-bit ΔΣ A/D converter allow precise measurements of supply voltages, load currents or internal die temperature. Fault management allows ALERT to be asserted for configurable overvoltage and undervoltage fault conditions. Two voltage buffered, 8-bit IDACs allow highly accurate programming of DC/DC converter output voltages. The IDACs can be configured to automatically servo the power supplies to the desired voltages using the ADC. The LTC2970-1 adds a tracking feature that can be used to turn multiple power supplies on or off in a controlled manner.

The bus address is set to 1 of 9 possible combinations by pin strapping the ASEL0 and ASEL1 pins. The LTC2970/ LTC2970-1 are packaged in a 24-pin, 4mm × 5mm QFN package.

Applications

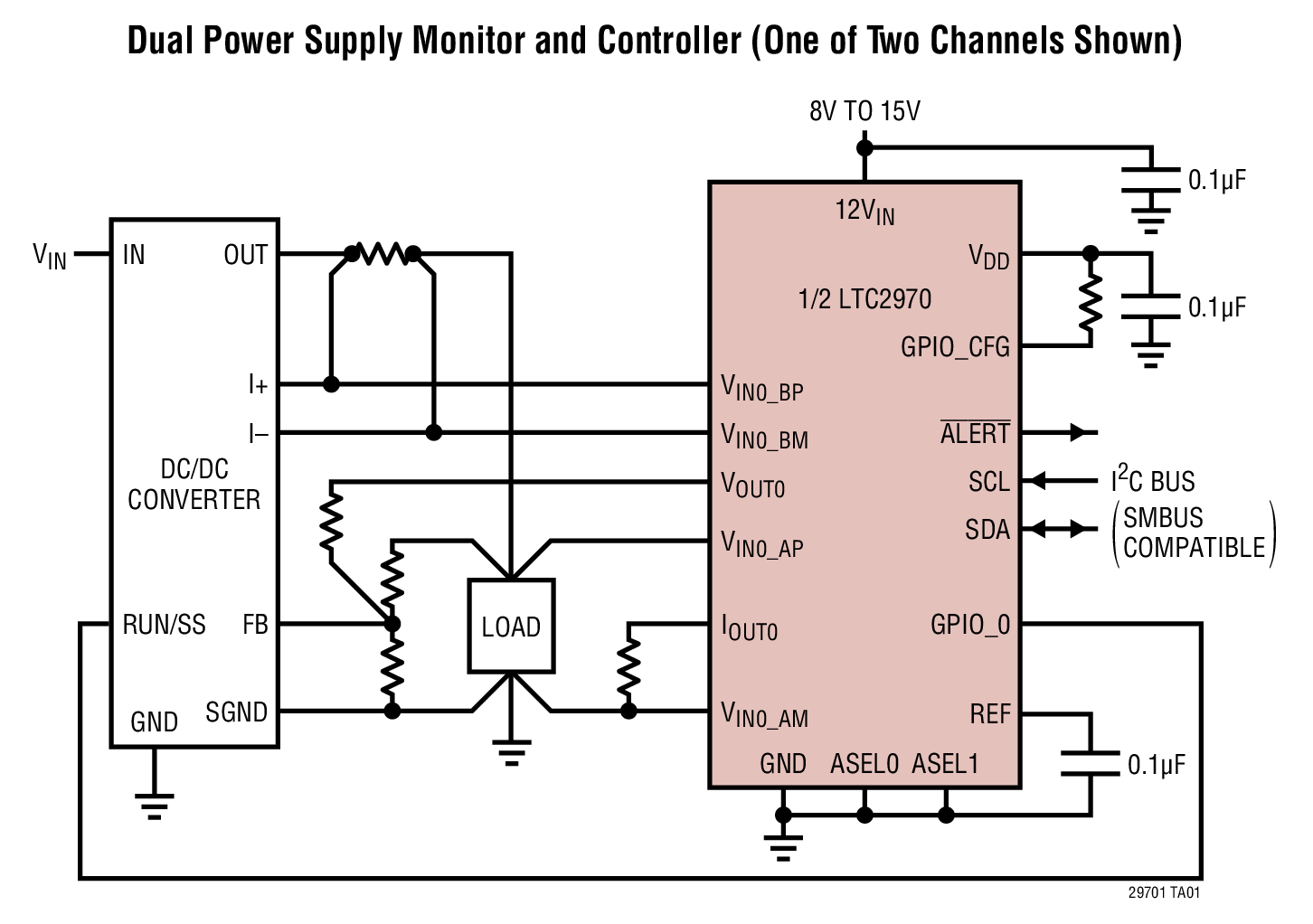

• Dual Power Supply Voltage Servo
• Monitoring Supply Voltage and Current
• Programmable Power Supplies
• Programmable Reference
