LT7184S

RECOMMENDED FOR NEW DESIGNS

Dual Channel 9A, 16V PolyPhase Step-Down Silent Switcher 2 with Digital Power System Management

Analog Devices LT7184S Product Info

10 February 2026 8

Features

Silent Switcher^® 2 Architecture: Enables Compact, Efficient, Low EMI Solution
PMBus/I²C Serial Interface
- Telemetry Read Back Includes: V_OUT, I_OUT, V_IN, Die Temperature, Faults
- Programmable Voltage, Current Limit, Digital Soft-Start/Stop, Sequencing, UV/OV, Phase, Frequency (up to 4MHz), Loop Compensation
- Integrated EEPROM with Fault Event Log
Set Key Parameters with Configuration Resistors for Operation without Programming

±0.25% Output Voltage Accuracy over Temperature from 0.6V to 1.375V
PolyPhase^® Load Sharing for up to Eight Phases
Wide V_IN Range: Down to 2.9V, or 1.5V with EXTV_CC up to 16V

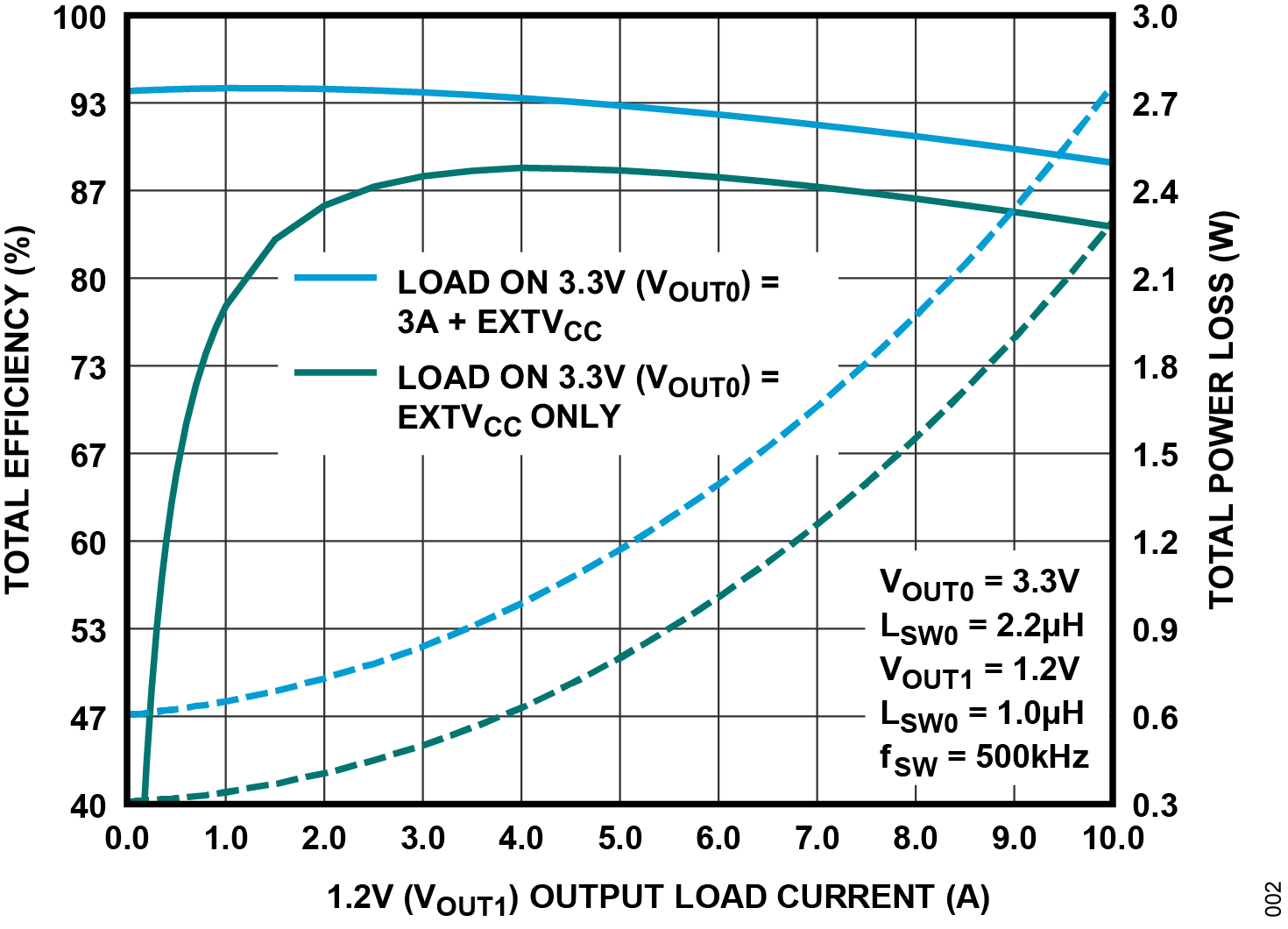

Over 94% Peak Efficiency at 1MHz, 12VIN to 3.3V_OUT
V_OUT Range: 0.4V to 5.5V (up to 85% x V_IN);
Differential Remote V_OUT Sense
External Frequency Synchronization

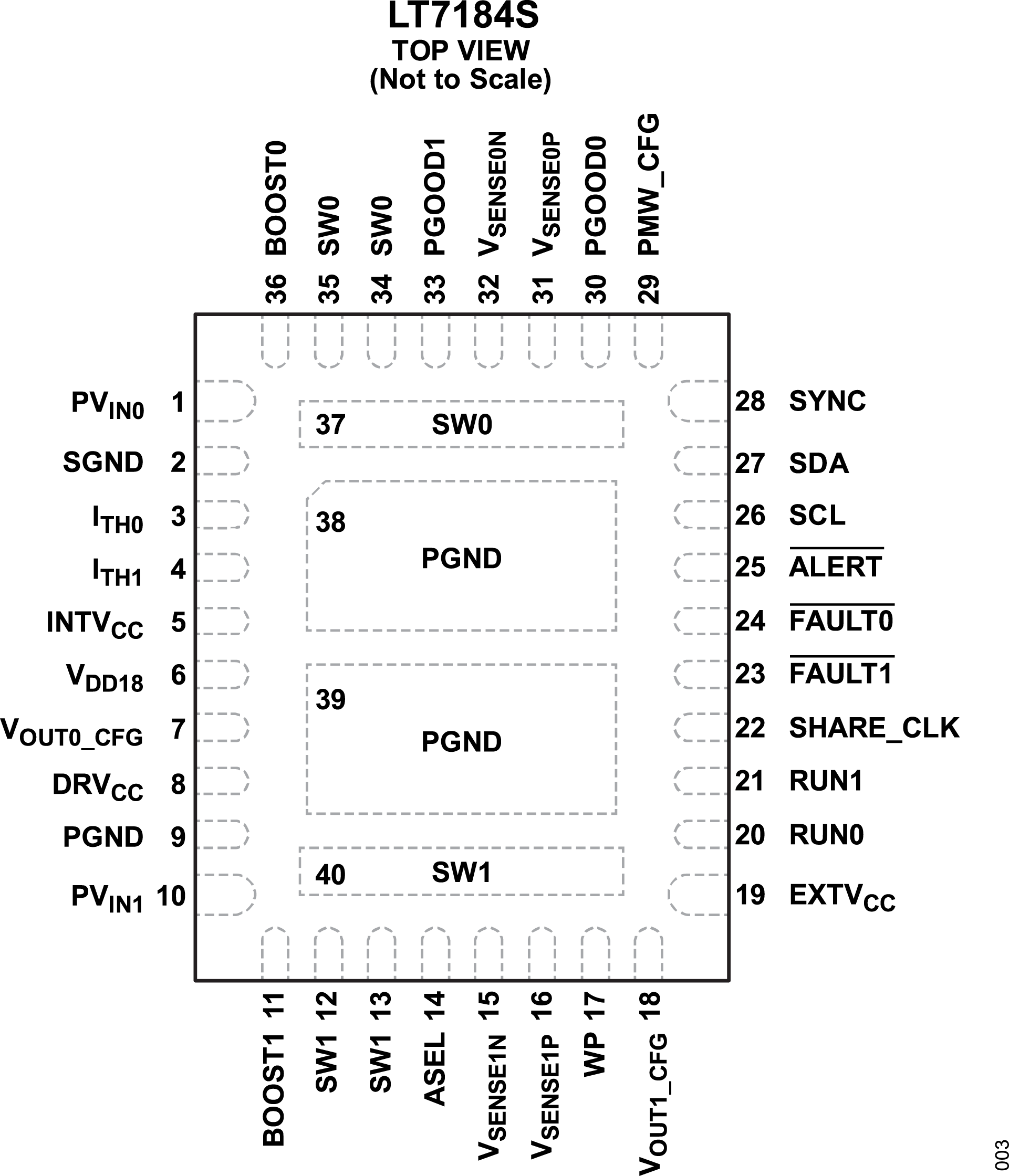

36-Lead (4mm x 5mm) LQFN Package

Part details & applications

The LT7184S is a dual-output monolithic PolyPhase DC/DC synchronous step-down regulator that delivers up to 7A of continuous current from both channels simultaneously and supports loads from -8A to +9A in either channel. The LT7184S features secondgeneration Silent Switcher^® architecture with integrated V_IN bypass capacitors for fast, clean, lowovershoot switching edges to deliver high efficiency at high switching frequencies and minimize Electromagnetic interference (EMI) emissions. The I²Cbased PMBus 1.3-compliant serial interface enables control of device functions and provides telemetry information for system monitoring. The LT7184S is supported by the LTpowerPlay^® graphical user interface tool. The output voltage, frequency, phase, and device address can be configured using resistors for operation without programming. Settings can also be written via the serial interface and/or stored in EEPROM. The controlled on-time valley current mode control architecture with 25ns (typical) minimum on-time enables high switching frequency at low output voltage with excellent transient response in a small overall solution size.

APPLICATIONS

Communications, Storage, and Industrial Systems
Data Center and Solid-State Drive Power Supplies
