Analog Devices LTC2310-12 Product Info

• 2Msps Throughput Rate
• ±1LSB INL Guaranteed
• Guaranteed 12-Bit, No Missing Codes
• 8V_P-P Differential Inputs with Wide Input Common Mode Range

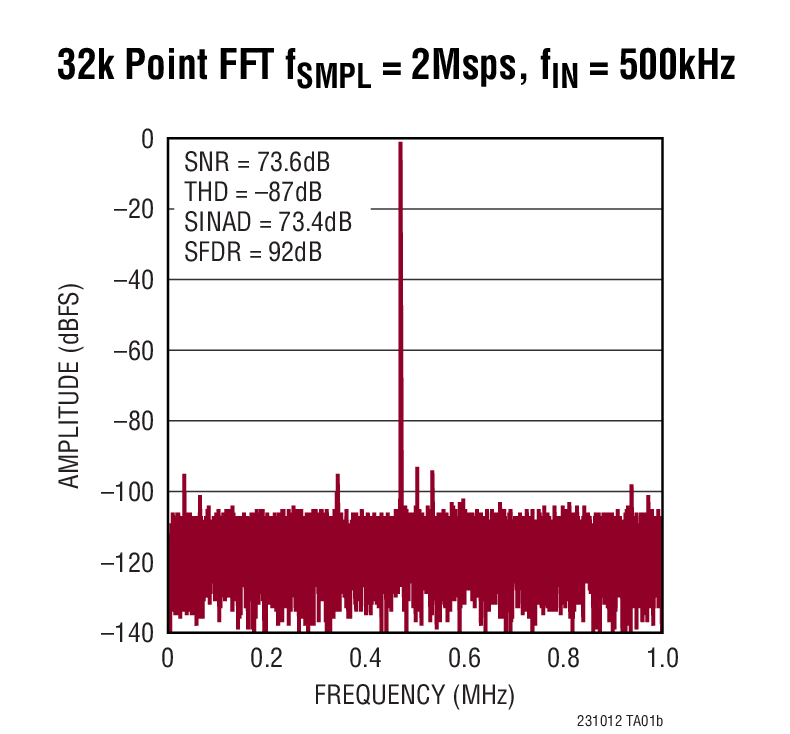

• 73dB SNR (Typ) at f_IN = 500kHz
• –85dB THD (Typ) at f_IN = 500kHz
• No Cycle Latency
• Guaranteed Operation –40°C to 125°C
• Single 3.3V or 5V Supply
• Low Drift (20ppm/°C Max) 2.048V or 4.096V Internal Reference with 1.25V External Reference Input
• 1.8V to 2.5V I/O Voltages
• CMOS or LVDS SPI-Compatible Serial I/O
• Power Dissipation 35mW at V_DD = 5V (Typ)

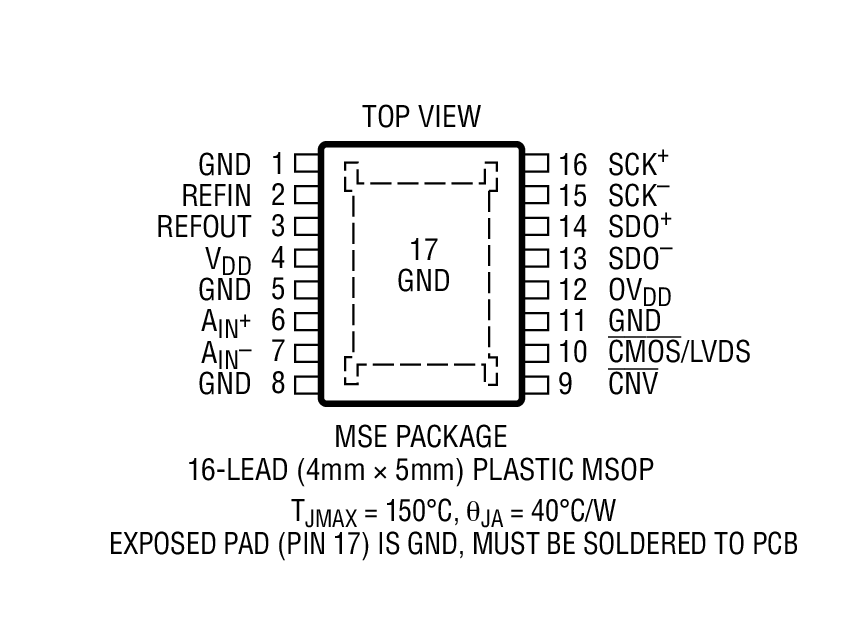

• Small 16-Lead (4mm × 5mm) MSOP Package

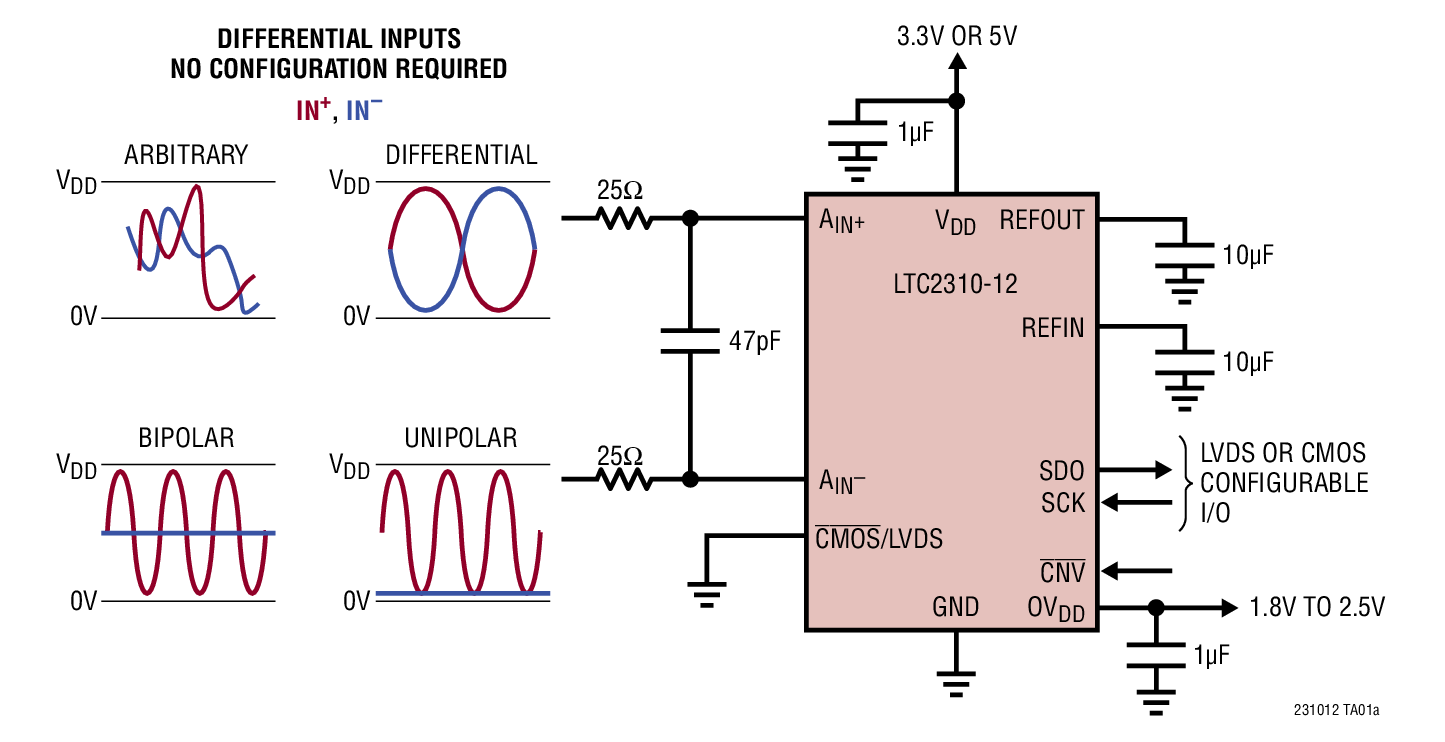

The LTC2310-12 is a low noise, high speed 12-bit + sign successive approximation register (SAR) ADC with differential inputs and wide input common mode range. Operating from a single 3.3V or 5V supply, the LTC2310-12 has an 8V_P-P differential input range, making it ideal for applications which require a wide dynamic range with high common mode rejection. The LTC2310-12 achieves ±1LSB INL guaranteed, no missing codes at 12 bits and 73dB SNR typical.

The LTC2310-12 has an onboard low drift (20ppm/°C max) 2.048V or 4.096V temperature-compensated reference and provides an external 1.25V buffered reference input. The LTC2310-12 also has a high speed SPI-compatible serial interface that supports CMOS or LVDS. The fast 2Msps throughput with no cycle latency makes the LTC2310-12 ideally suited for a wide variety of high speed applications. The LTC2310-12 dissipates only 35mW with a 5V supply and offers nap and sleep modes to reduce the power consumption for further power savings during inactive periods.

Applications

• High Speed Data Acquisition Systems
• Communications
• Remote Data Acquisition
• Imaging
• Optical Networking
• Automotive
• Multiphase Motor Control
