LTC1590

PRODUCTION

Dual Serial 12-Bit Multiplying DAC

Analog Devices LTC1590 Product Info

10 February 2026 4

Features

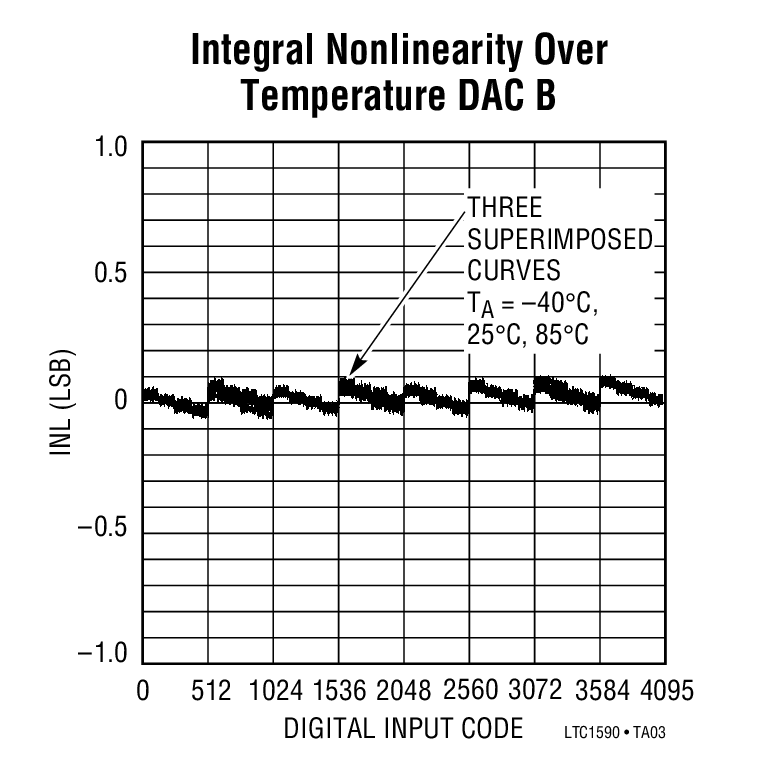

DNL and INL Over Temperature: ±0.5LSB Max
Gain Error: ±1LSB Max
Low Supply Current: 10µA Max
4-Quadrant Multiplication
Power-On Reset
Asynchronous Clear Input
Daisy-Chain 3-Wire Serial Interface

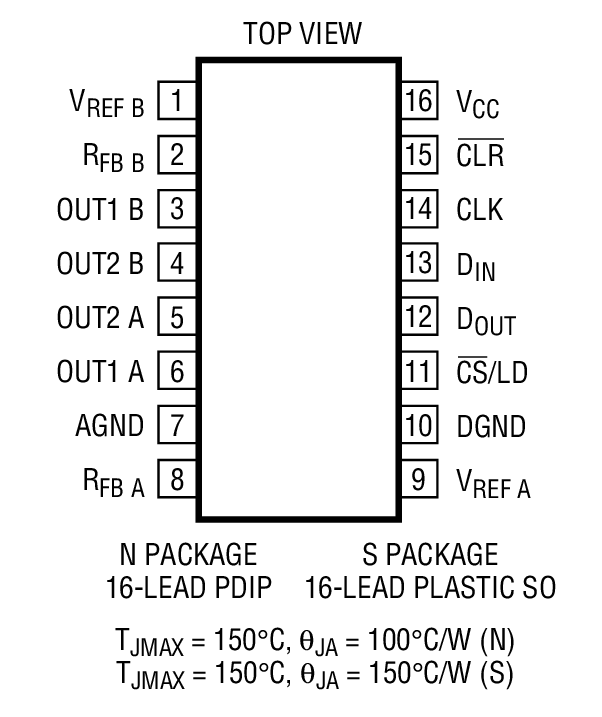

16-Pin Narrow SO and PDIP Packages

Part details & applications

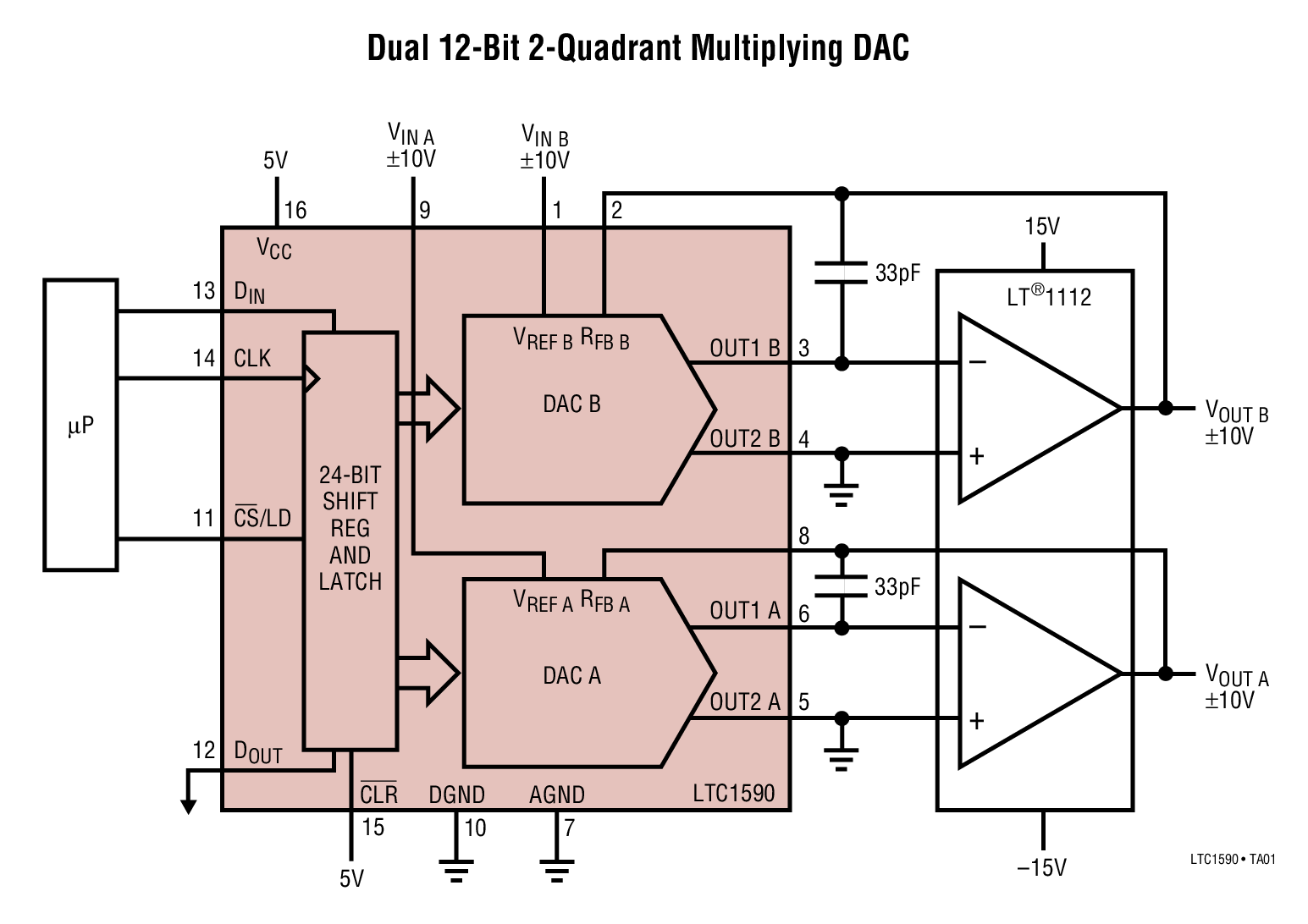

The LTC1590 is a dual, serial input 12-bit multiplying digital-to-analog converter (DAC). It includes two current output multiplying CMOS DACs and an easy SPI compatible serial interface with daisy-chain output. An asynchronous CLR pin sets both DACs to zero scale.

Excellent accuracy, stability and versatility are combined with the smallest package available for a dual 12-bit multiplying DAC.

Parts are available in 16-pin PDIP and narrow SO packages and are specified over the commercial and industrial temperature ranges.

Applications

Process Control and Industrial Automation
Software Controlled Gain Adjustment
Digitally Controlled Filter and Power Supplies
Automatic Test Equipment
