LTC1456

PRODUCTION

12-Bit Rail-to-Rail Micropower DAC with Clear Input

Analog Devices LTC1456 Product Info

10 February 2026 4

Features

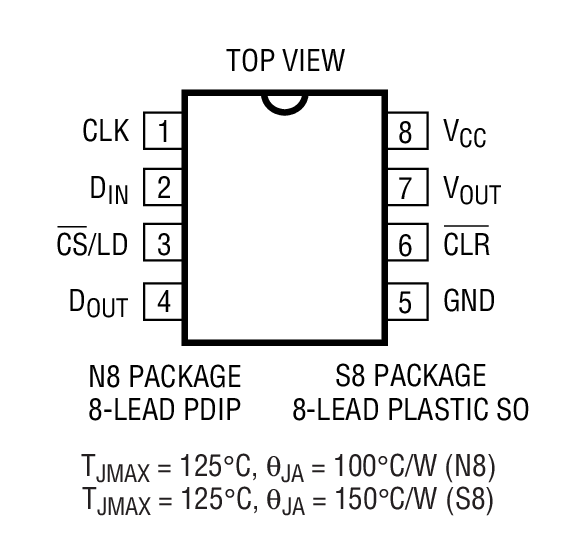

SO-8 Package
12-Bit Resolution
Buffered True Rail-to-Rail Voltage Output
Asynchronous Clear Input
Built-In Reference
Schmitt Trigger On Input Allows Direct Optocoupler Interface
Power-On Reset Clears DAC to 0V
3-Wire Cascadable Serial Interface

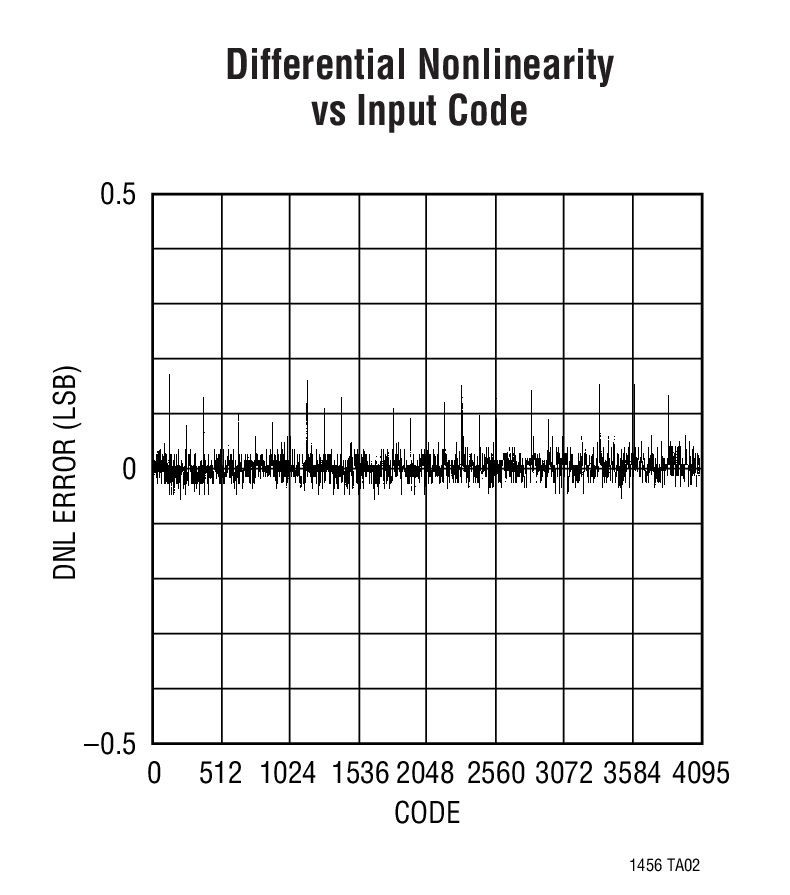

Maximum DNL Error: 0.5LSB
Low Cost

Part details & applications

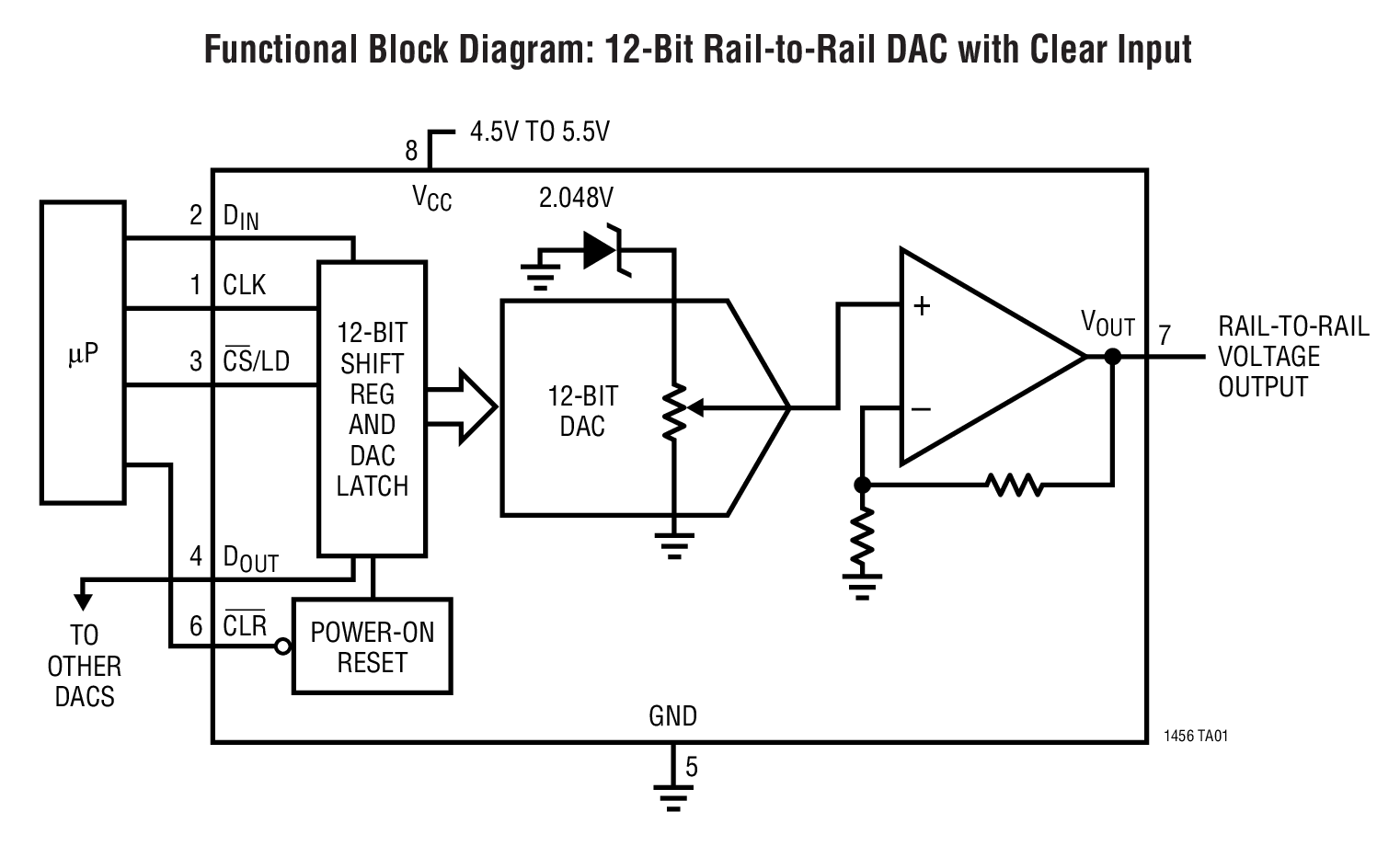

The LTC1456 is a complete single supply, rail-to-rail voltage output, 12-bit digital-to-analog converter (DAC) in an SO-8 package. It includes a rail-to-rail output buffer amplifier and an easy-to-use 3-wire cascadable serial interface. The LTC1456 includes a CLR pin that asynchronously clears the DAC to zero scale.

The LTC1456 has an internal 2.048V reference and a fullscale output of 4.095V. It operates on a 4.5V to 5.5V supply, dissipating 2.2mW.

The low power supply current and the space saving SO-8 package make the LTC1456 ideal for battery-powered applications.

Applications

Digital Calibration
Industrial Process Control
Automatic Test Equipment
Cellular Telephones
