Analog Devices LTC1390 Product Info

• 3-Wire Serial Digital Interface
• Data Retransmission Allows Series Connection with Serial A/D Converters
• Single 3V to ±5V Supply Operation
• Analog Inputs May Extend to Supply Rails
• Low Charge Injection
• Low R_ON: 75Ω Max
• Low Leakage: ±5nA Max
• Guaranteed Break-Before-Make
• TTL/CMOS Compatible for All Digital Inputs
• Cascadable to Allow Additional Channels
• Can be used as a Demultiplexer

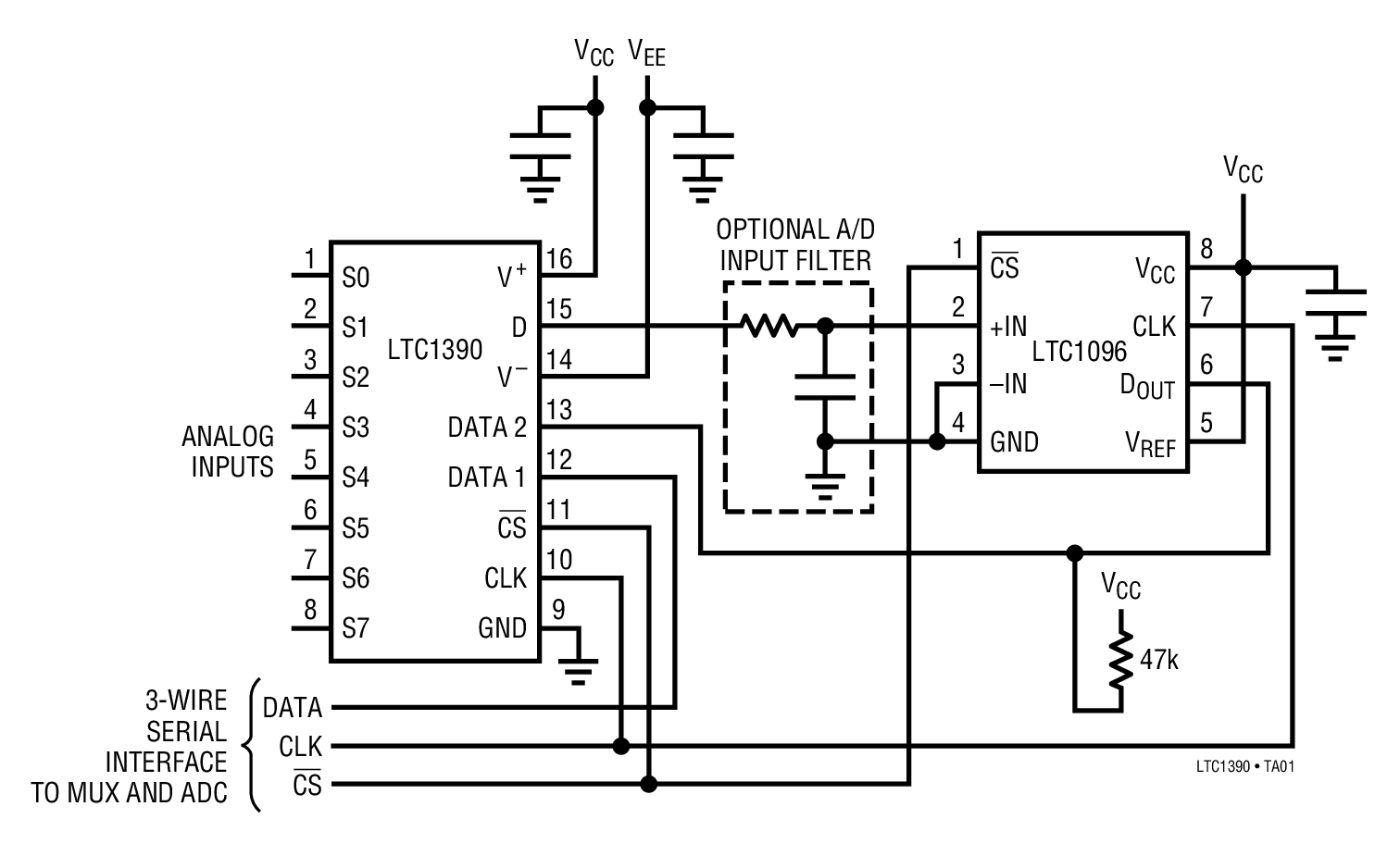

The LTC1390 is a high performance CMOS 8-to-1 analog multiplexer. It features a 3-wire digital interface with a bidirectional data retransmission feature, allowing it to be wired in series with a serial A/D converter while using only one serial port. The interface also allows several LTC1390s to be wired in series or parallel, increasing the number of MUX channels available using only a single digital port. All the above features are also valid when LTC1390 operates as a demultiplexer such as with a D/A converter.

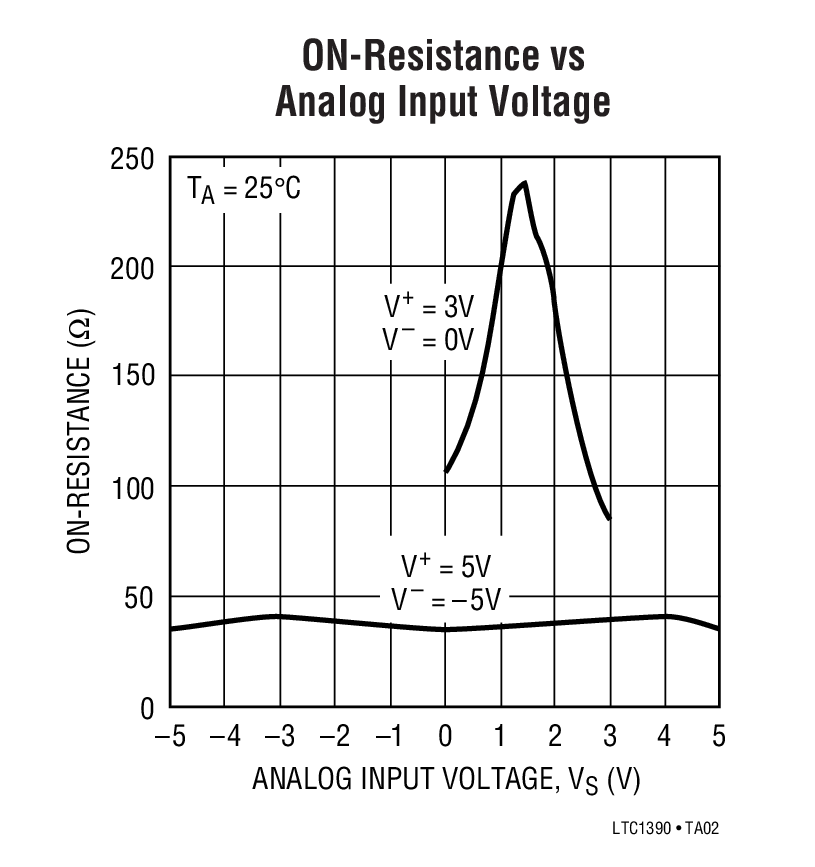

The LTC1390 features a typical R_ON of 45Ω, typical switch leakage of 50pA, and guaranteed break-before-make operation. Charge injection is ±10pC maximum. All digital inputs are TTL and CMOS compatible when operated from single or dual supplies. The inputs can withstand 100mA fault currents.

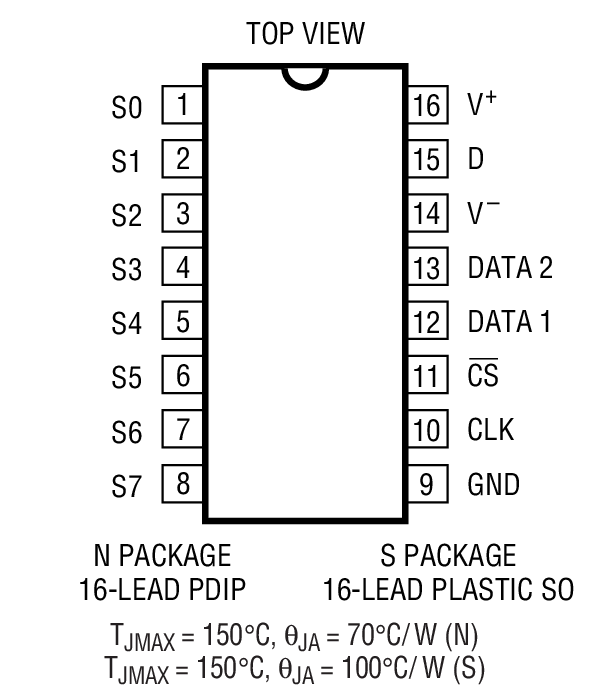

The LTC1390 is available in 16-pin PDIP and narrow SO packages.

Applications

• Data Acquisition Systems
• Communication Systems
• Signal Multiplexing/Demultiplexing
