LT8312

PRODUCTION

Boost Controller with Power Factor Correction

Analog Devices LT8312 Product Info

10 February 2026 6

Features

PFC Boost with Minimum Number of External Components
V_IN and V_OUT Limited Only by External Components
Active Power Factor Correction
Low Harmonic Distortion
Overvoltage Protection
Energy Star Compliant (<0.5W No-Load Operation)

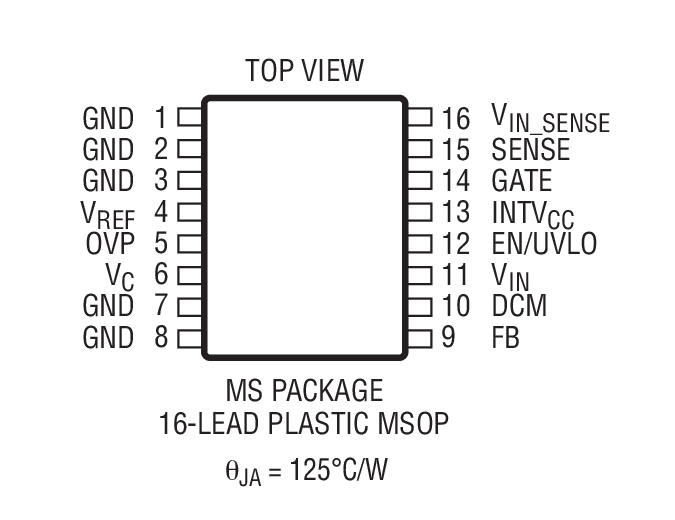

16-Lead MSOP Package

Part details & applications

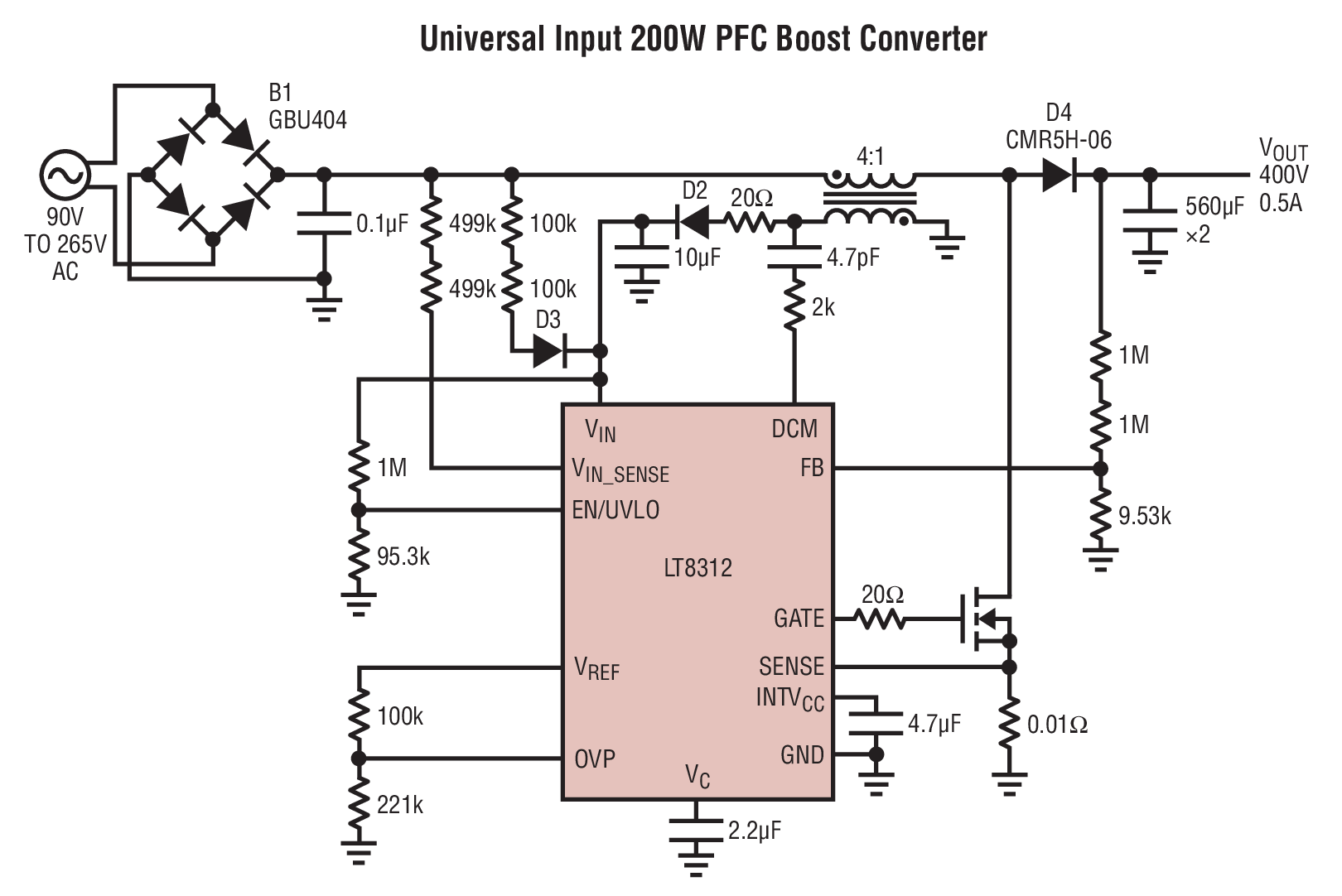

The LT8312 is a power factor correction (PFC) boost controller. A LT8312-based design can achieve a power factor of greater than 0.99 by actively modulating the input current, allowing compliance with most Harmonic Current Emission requirements.

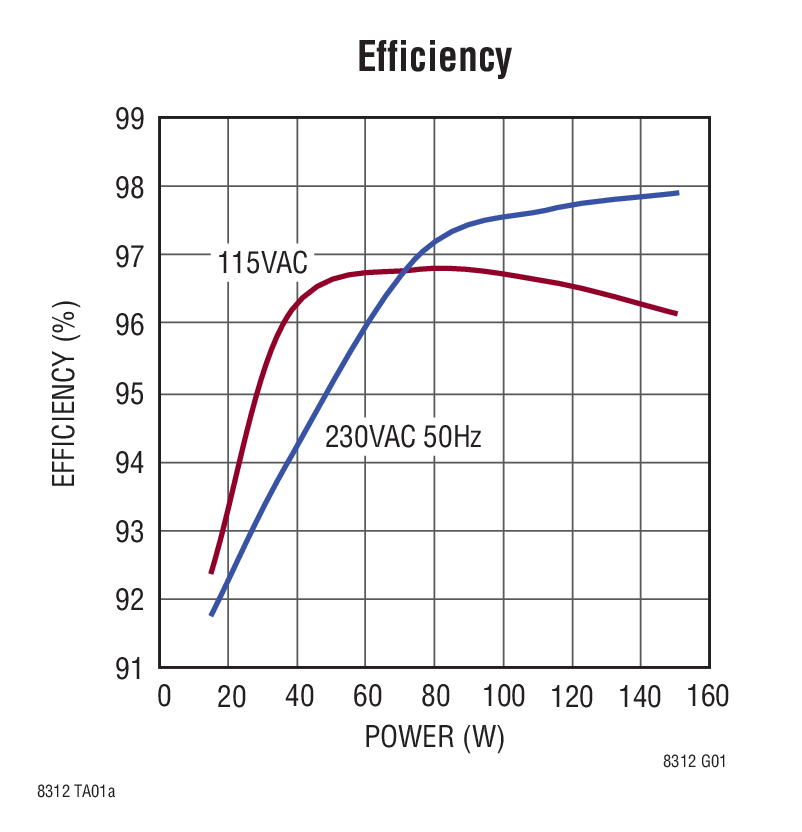

The LT8312 is well suited for a wide variety of off-line applications. The input range can be scaled up or down, depending mainly on the choice of external components. Efficiencies higher than 95% can be achieved with output power levels up to 250W.

Applications

Industrial
Aviation
