AD5246

PRODUCTION

128 Position I2C Compatible Programmable Resistor in SC70 Package

Analog Devices AD5246 Product Info

10 February 2026 7

Features

128-position
End-to-end resistance 5 kΩ, 10 kΩ, 50 kΩ, 100 kΩ

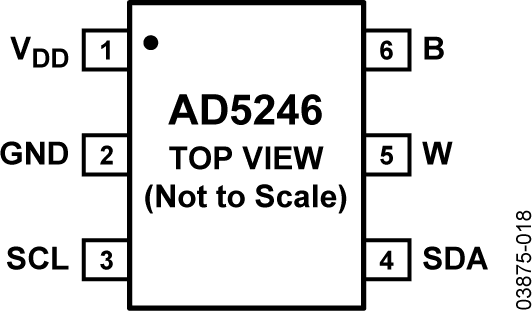

Ultracompact SC70-6 (2 mm × 2.1 mm) package
I²C^® compatible interface
Full read/write of wiper register

Power-on preset to midscale
Single supply 2.7 V to 5.5 V
Rheostat mode temperature coefficient: 45 ppm/°C
Low power, I_DD = 0.9 µA at 3.3 V typical
Wide operating temperature –40°C to +125°C

Part details & applications

The AD5246 provides a compact 2 mm × 2.1 mm packaged solution for 128-position adjustment applications. This device performs the same electronic adjustment function as a variable resistor. Available in four different end-to-end resistance values (5 kΩ, 10 kΩ, 50 kΩ, 100 kΩ), these low temperature coefficient devices are ideal for high accuracy and stability variable resistance adjustments.

The wiper settings are controllable through the I²C compatible digital interface, which can also be used to read back the present wiper register control word. The resistance between the wiper and either end point of the fixed resistor varies linearly with respect to the digital code transferred into the RDAC latch.

Operating from a 2.7 V to 5.5 V power supply and consuming 3 μA allows for usage in portable battery-operated applications.

APPLICATIONS

Mechanical potentiometer replacement in new designs
Transducer adjustment of pressure, temperature, position, chemical, and optical sensors
RF amplifier biasing
Automotive electronics adjustment
Gain control and offset adjustment
