Analog Devices LT5518 Product Info

• High Input Impedance Version of the LT5528
• Direct Conversion to 1.5GHz - 2.4GHz
• High OIP3: 22.8dBm at 2GHz
• Low Output Noise Floor at 20MHz Offset:
• No RF: -158.2dBm/Hz
• P_OUT = 4dBm: -152.5dBm/Hz

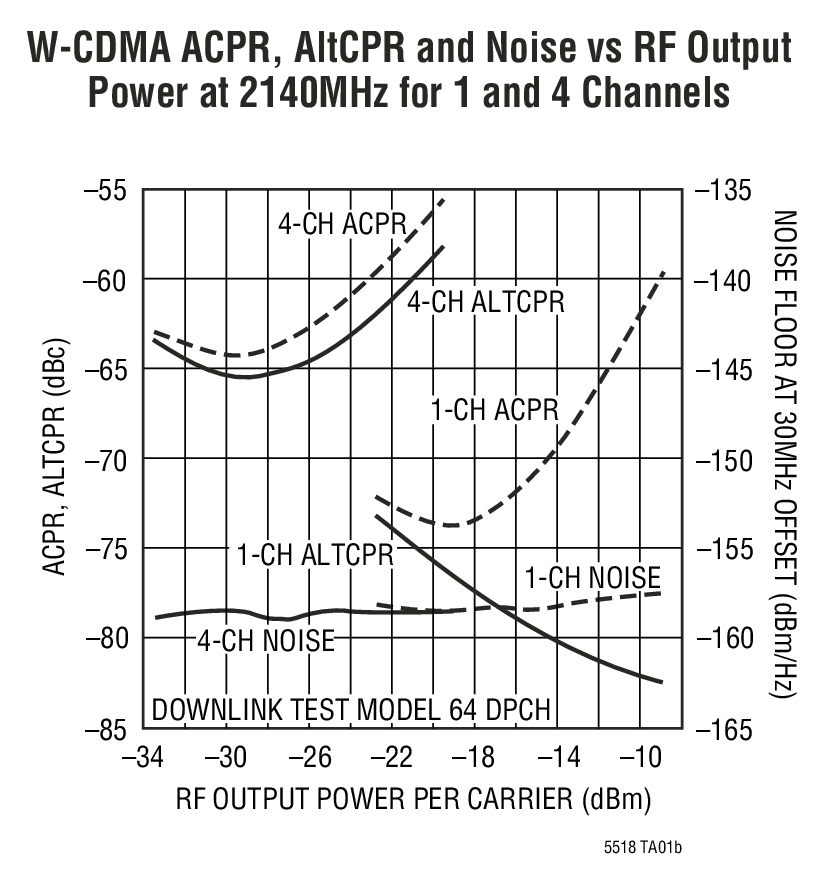

• 4-Ch W-CDMA ACPR: -64dBc at 2.14GHz
• Integrated LO Buffer and LO Quadrature Phase Generator
• 50Ω AC-Coupled Single-Ended LO and RF Ports
• Low Carrier Leakage: -49dBm at 2GHz
• High Image Rejection: 40dB at 2GHz

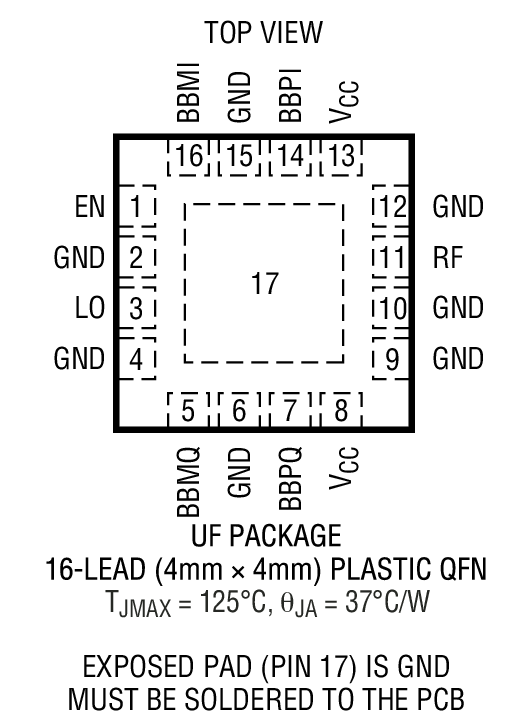

• 16-Lead QFN 4mm × 4mm Package

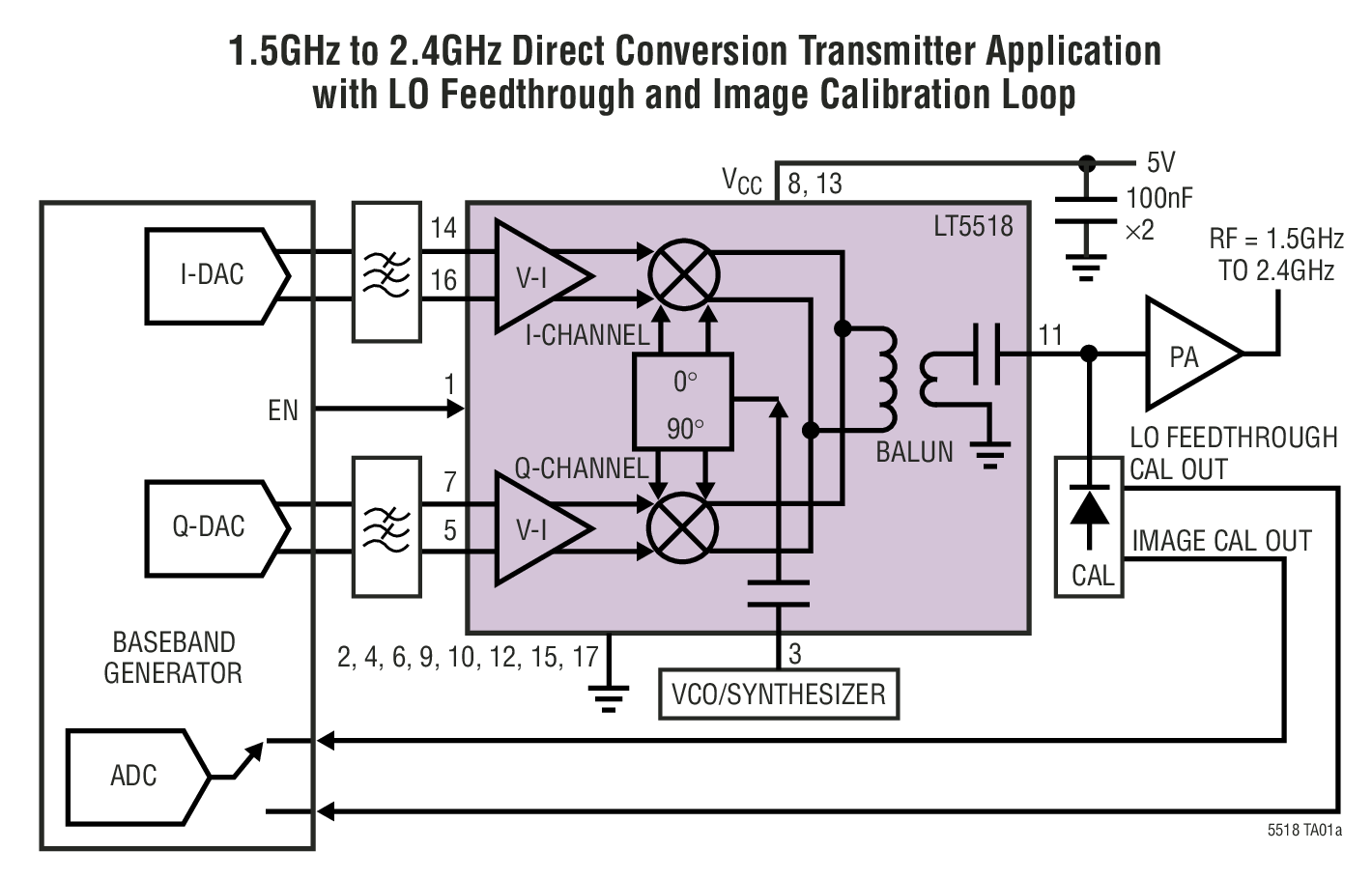

The LT5518 is a direct I/Q modulator designed for high performance wireless applications, including wireless infrastructure. It allows direct modulation of an RF signal using differential baseband I and Q signals. It supports PHS, GSM, EDGE, TD-SCDMA, CDMA, CDMA2000, W-CDMA and other systems. It may also be configured as an image reject up-converting mixer, by applying 90° phase-shifted signals to the I and Q inputs. The high impedance I/Q baseband inputs consist of voltage-to-current converters that in turn drive double-balanced mixers. The outputs of these mixers are summed and applied to an on-chip RF transformer, which converts the differential mixer signals to a 50Ω single-ended output. The balanced I and Q baseband input ports are intended for DC coupling from a source with a common mode voltage level of about 2.1V. The LO path consists of an LO buffer with single-ended input, and precision quadrature generators that produce the LO drive for the mixers. The supply voltage range is 4.5V to 5.25V.

Applications

• Infrastructure Tx for DCS, PCS and UMTS Bands
• Image Reject Up-Converters for DCS, PCS and UMTS Bands
• Low Noise Variable Phase-Shifter for 1.5GHz to 2.4GHz Local Oscillator Signals
