Analog Devices LT1575 Product Info

• UltraFast^™ Transient Response Eliminates Tantalum and Electrolytic Output Capacitors
• FET R_DS(ON) Defines Dropout Voltage
• 1% Reference/Output Voltage Tolerance Temperature
• Typical Load Regulation: 1mV
• High Side Sense Current Limit
• Multifunction Shutdown Pin with Latch off

The LT1575/LT1577 are single/dual controller ICs that drive low cost external N-channel MOSFETs as source followers to produce ultrafast transient response, low dropout voltage regulators.

The LT1575/LT1577 achieve unprecedented transient-load performance by eliminating expensive tantalum or bulk electrolytic output capacitors in the most demanding modern microprocessor applications. Precision-trimmed adjustable and fixed output voltage versions accommodate any required microprocessor power supply voltage. Selection of the N-channel MOSFET R_DS(ON) allows very low dropout voltages to be achieved.

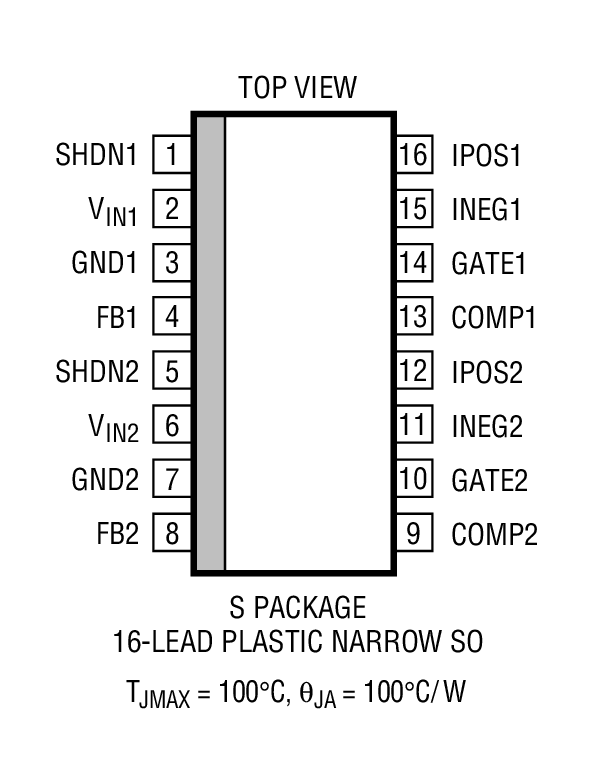

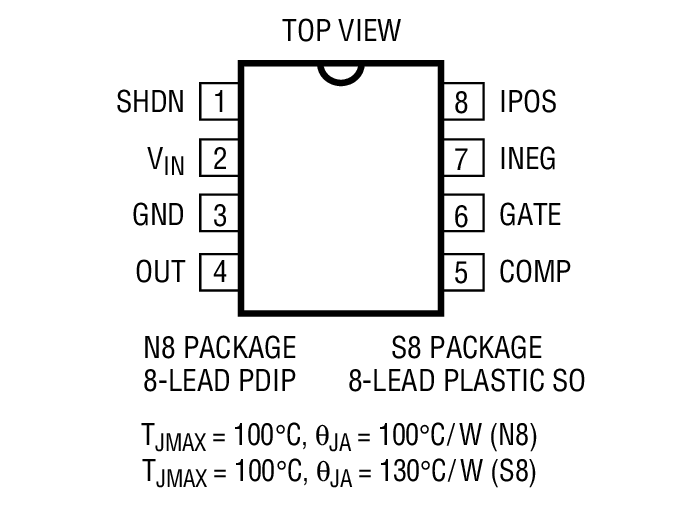

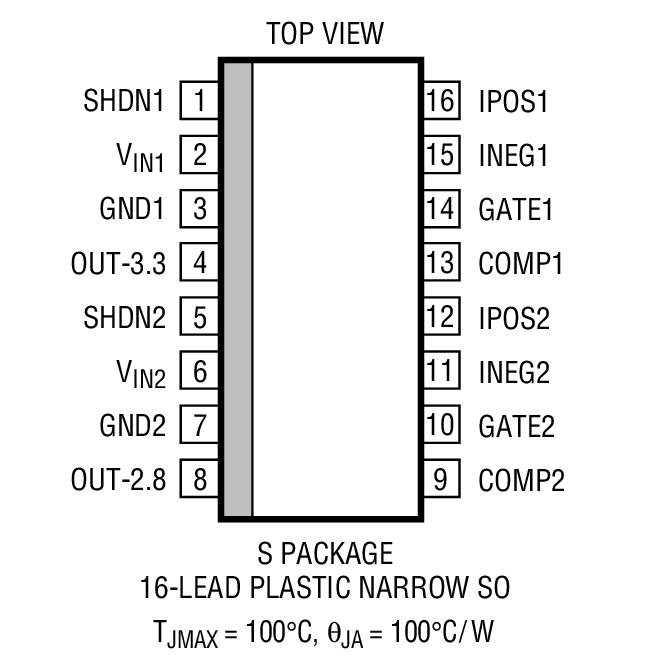

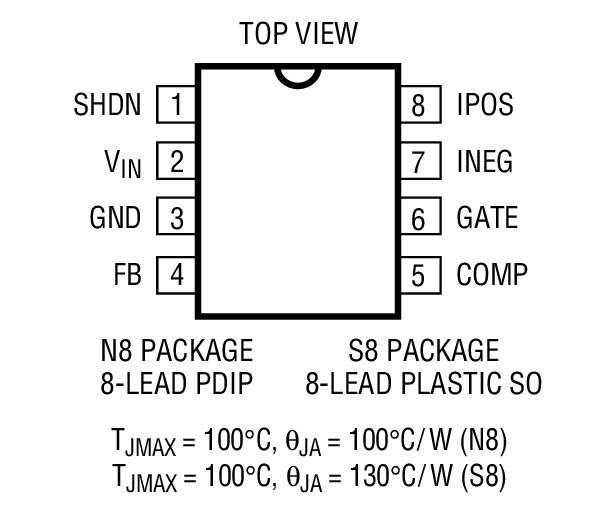

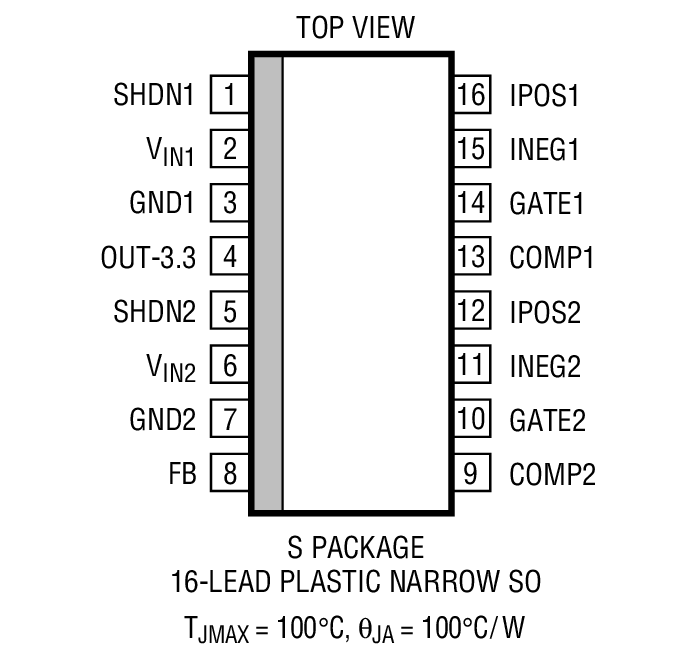

Unique protection features include a high side current limit amplifier that activates a fault protection timer circuit. A multifunction Shutdown pin provides either current limit time-out with latch off, overvoltage protection, thermal shutdown or a combination of these functions. The LT1575 is available in 8-pin SO or PDIP and the LT1577 is available in 16-pin narrow body SO.

Applications

• Pentium^® Processor Supplies
• PowerPC^™ Supplies
• 5V to 3.XXV or 3.3V to 2.XXV Microprocessor Supplies
• GTL Termination
• Low Voltage Logic Supplies
