Analog Devices MAX1414 Product Info

• +2.7V to +3.6V Supply Voltage Range in Standby, Idle, and Run Mode (Down to 1.8V in Sleep Mode)
• 1.15mA Run Mode Supply Current
• 2.5µA Sleep Mode Supply Current (Wake-Up, RTC, and Voltage Monitor Active)
• Multichannel 16-Bit Sigma-Delta ADC
  • ±1.5 LSB (typ) Integral Nonlinearity
  • 30Hz or 60Hz Continuous Conversion Rate
  • Buffered or Unbuffered Mode
  • Gain of +1/3, +1, or +2V/V
  • Unipolar or Bipolar Mode
  • On-Chip Offset Calibration
• 10-Bit Force/Sense DACs
• Buffered 1.25V, 18ppm/°C (typ) Bandgap Reference Output
• SPI™/QSPI™ or MICROWIRE™-Compatible Serial Interface
• System Support Functions
  • RTC (Valid til 9999) and Alarm
  • High-Frequency PLL Clock Output (2.4576MHz)
  • +1.8V and +2.7V Active-Low RESET and Power-Supply Voltage Monitors
  • Signal Detect Comparator
  • Interrupt Generator (Active-Low INT and Active-Low DRDY)
  • Three-State Digital Output
  • Wake-Up Circuitry
• 28-Pin SSOP (MAX1407/MAX1408/MAX1414), 20-Pin SSOP (MAX1409)

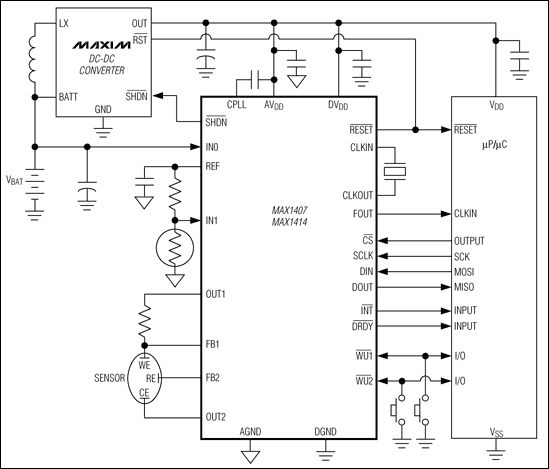

The MAX1407/MAX1408/MAX1409/MAX1414 are low-power, general-purpose, multichannel data-acquisition systems (DAS). These devices are optimized for low-power applications. All the devices operate from a single +2.7V to +3.6V power supply and consume a maximum of 1.15mA in Run mode and only 2.5µA in Sleep mode.

The MAX1407/MAX1408/MAX1414 feature a differential 8:1 input multiplexer to the ADC, a programmable three-state digital output, an output to shutdown an external power supply, and a data ready output from the ADC. The MAX1408 has eight auxiliary analog inputs, while the MAX1407/MAX1414 include four auxiliary analog inputs and two 10-bit force/sense DACs. The MAX1414 features a 50mV trip threshold for the signal-detect comparator while the others have a 0mV trip threshold. The MAX1409 is a 20-pin version of the DAS family with a differential 4:1 input multiplexer to the ADC, one auxiliary analog input, and one 10-bit force/sense DAC.

The MAX1407/MAX1408/MAX1414 are available in space-saving 28-pin SSOP packages, while the MAX1409 is available in a 20-pin SSOP package.

Applications

• Automated Test Equipment (ATE)
• Data Acquisition
• Industrial Control Systems
• Medical Instruments
• Portable Equipment
• Robotics
