HMC985A-DIE

PRODUCTION

GaAs MMIC Voltage-Variable Attenuator, 20 - 50 GHz

Analog Devices HMC985A-DIE Product Info

10 February 2026 6

Features

Wide Bandwidth: 20 - 50 GHz
Excellent Linearity: +30 dB Input IP3
Wide Attenuation Range: 35 dB
Die Size: 2.78 x 1.37 x 0.1 mm

Part details & applications

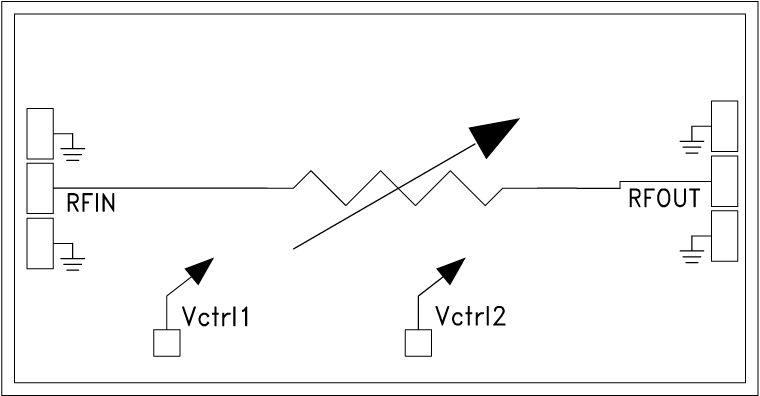

The HMC985A is an absorptive Voltage Variable Attenuator (VVA) which operates from 20 - 50 GHz and is ideal in designs where an analog DC control signal must be used to control RF signal levels over a 35 dB dynamic range. It features two shunt-type attenuators which are controlled by two analog voltages, Vctrl1 and Vctrl2. Optimum linearity performance of the attenuator is achieved by first varying Vctrl1 of the first attenuation stage from -5V to 0V with Vctrl2 fixed at -5V. The control voltage of the second attenuation stage, Vctrl2, should then be varied from -5V to 0V with Vctrl1 fixed at 0V.

Furthermore, if the Vctrl1 and Vctrl2 pins are connected together it is possible to achieve the full analog attenuation range with only a small degradation in input IP3 performance. Applications include AGC circuits and temperature compensation of multiple gain stages in microwave point to point and VSAT radios.

Applications:

Point-to-Point Radio
VSAT Radio
Test Instrumentation
Microwave Sensors
Military, ECM & Radar
