Analog Devices MAX1760 Product Info

• Up to 94% Efficiency
• 0.7V to 5.5V Input Range
• Up to 800mA Output
• Fixed 3.3V Output (or Adjustable from 2.5V to 5.5V)
• PWM Synchronous-Rectified Topology
• Low-Noise, Constant-Frequency Operation (1MHz)
• 0.1µA Logic-Controlled Shutdown
• Synchronizable Switching Frequency
• Adjustable Current Limit
• Adjustable Soft-Start
• 10-Pin µMAX Package
• 10-Pin 3mm x 3mm TDFN Package

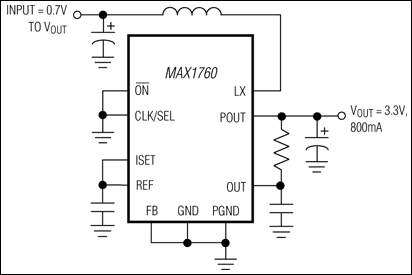

The MAX1760/MAX1760H are high-efficiency, low-noise, step-up DC-DC converters intended for use in battery-powered wireless applications. They combine low quiescent supply current (100µA) with a high 1MHz operating frequency. Small external components and tiny 10-pin TDFN and µMAX® packages make this device an excellent choice for small hand-held applications. The MAX1760 is activated by a logic-low active-low ON signal while the MAX1760H is activated by a logic-high ON input.

Both devices use a synchronous-rectified pulse-width-modulation (PWM) boost topology to generate 2.5V to 5.5V outputs from a wide range of inputs, such as 1 to 3 alkaline or NiCd/NiMH cells or a single lithium-ion (Li+) cell. Proprietary Idle-Mode™ circuitry significantly improves light-load efficiency and smoothly transitions to fixed-frequency PWM operation at higher load currents.

Low-noise, forced-PWM mode is available for applications requiring constant-frequency operation at all load currents. PWM operation can also be synchronized to an external clock to protect sensitive frequency bands in communications equipment. Analog soft-start and adjustable current limit permit optimization of efficiency, external component size, and output voltage ripple.

Applications

• Digital Cordless Phones
• Handheld Instruments
• Palmtop Computers
• PCS Phones
• Personal Communicators
• Two-Way Paging
• Wireless Handsets
