HMC892A

RECOMMENDED FOR NEW DESIGNS

3.45 GHz to 6.25 GHz, Tunable Band-Pass Filter

Analog Devices HMC892A Product Info

10 February 2026 6

Features

Amplitude settling time: 200 ns
Excellent wideband rejection: ≥30 dB
Single-chip replacement for mechanically tuned designs

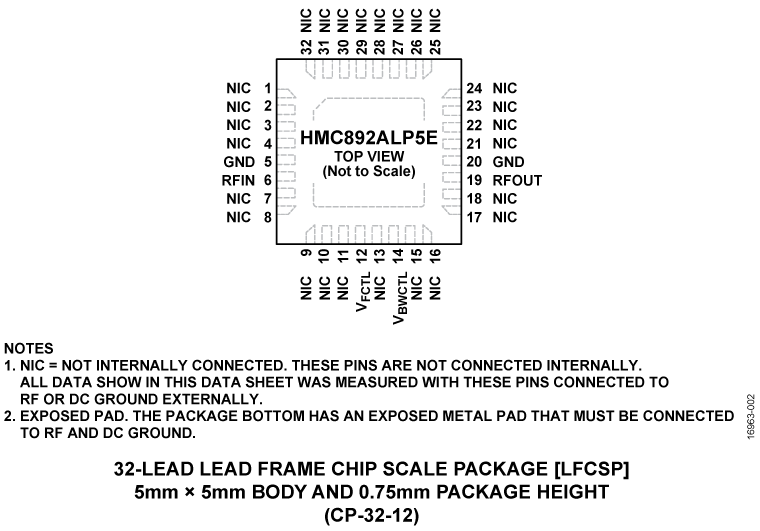

32-lead, 5 mm × 5 mm, RoHS compliant LFCSP package

Part details & applications

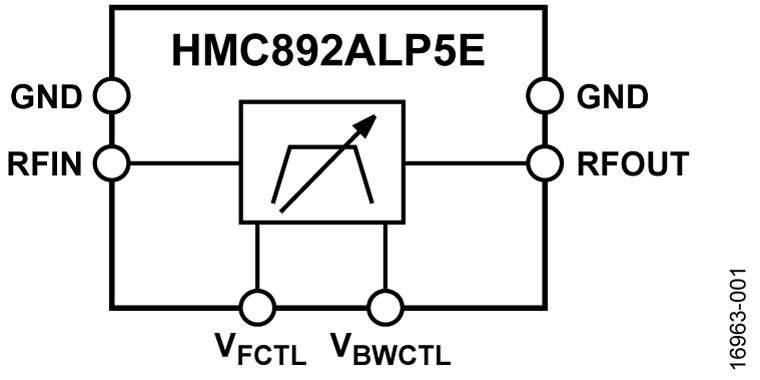

The HMC892ALP5E is a tunable band-pass filter that features a user selectable pass-band frequency. The 3 dB filter bandwidth is approximately 8.7%. The 20 dB filter bandwidth is approximately 23.8%. The center frequency can be varied between 3.45 GHz and 6.25 GHz by applying an analog tuning voltage between 0 V and 14 V.

This tunable filter can be used as a smaller alternative to physically large switched filter banks and cavity tuned filters.

The HMC892ALP5E has excellent microphonics due to the monolithic design and provides a dynamically adjustable solution in advanced communications applications.

Applications

Test and measurement equipment
Military radar and electronic warfare (EW)/electronic countermeasures (ECM)
Satellite communications (SATCOM) and space
Industrial and medical equipment
