HMC862A

RECOMMENDED FOR NEW DESIGNS

0.1 GHz to 24 GHz, Low Noise, Programmable Divider

Analog Devices HMC862A Product Info

10 February 2026 5

Features

Low noise floor: −153 dBc/Hz at 100 kHz offset
Programmable frequency divider (N)
- N = 1, 2, 4, or 8
Wide bandwidth: 0.1 GHz to 24 GHz
Low current consumption: 81 mA in the N = 8 divide state

HBM ESD sensitivity, Class 2 classification
FICDM ESD sensitivity, Class C3 classification

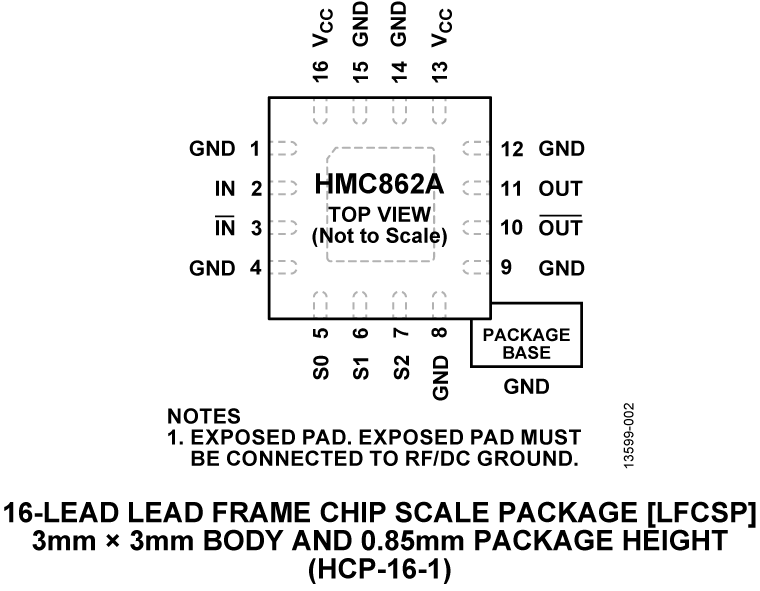

16-lead, 3 mm × 3 mm LFCSP package: 9 mm²

Part details & applications

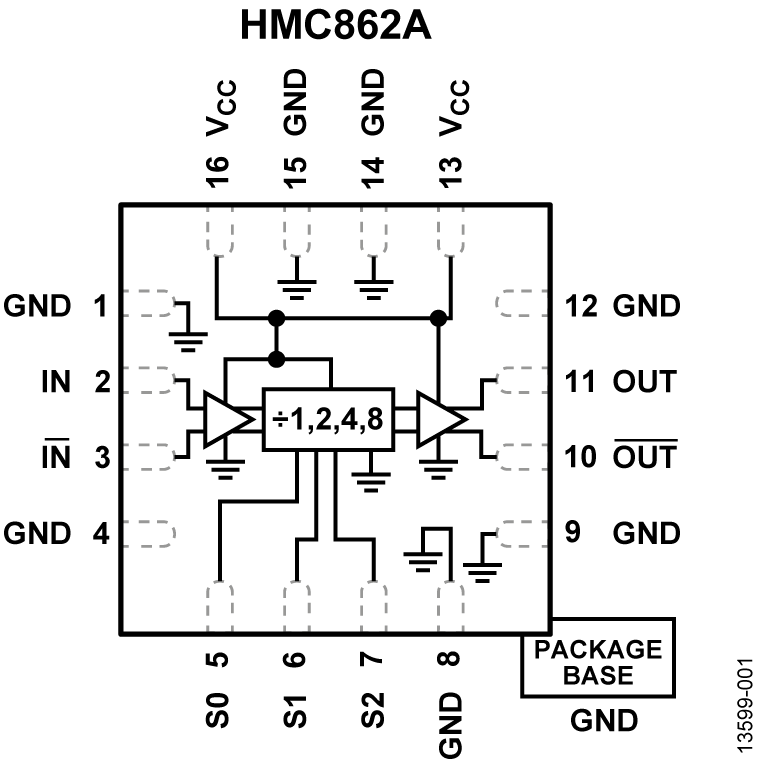

The HMC862A is a low noise, programmable frequency divider in a 3 mm × 3 mm, leadless, surface-mount package. The frequency divider, N, can be programmed to divide from 1, 2, 4, or 8 in the 0.1 GHz to 24 GHz input frequency range.

The low phase noise, wide frequency range, and flexible division ratio make this device ideal for high performance and wideband communication systems.

Applications

Satellite communication systems
Point to point and point to multipoint radios
Military applications
Test equipment
