Analog Devices HMC8401-DIE Product Info

• Output power for 1 dB compression (P1dB): 16.5 dBm typical
• Saturated output power (P_SAT): 19 dBm typical
• Gain: 14.5 dB typical
• Noise figure: 1.5 dB
• Output third-order intercept (IP3): 26 dBm typical
• Supply voltage: 7.5 V at 60 mA
• 50 Ω matched input/output
• Die size: 2.55 mm × 1.5 mm × 0.05 mm

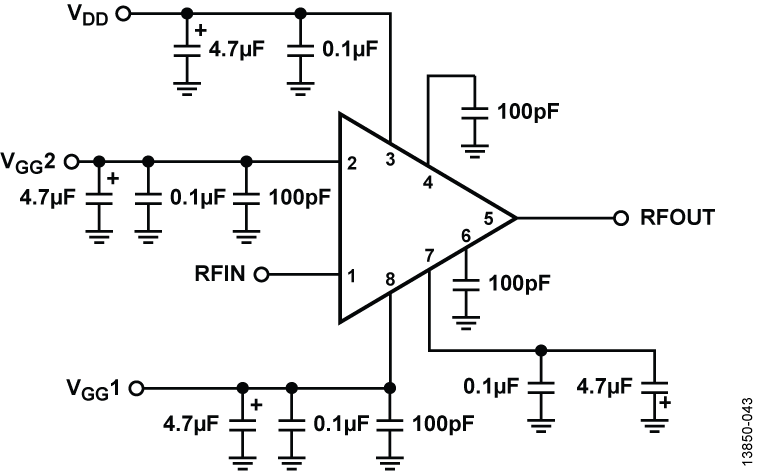

The HMC8401 is a gallium arsenide (GaAs), pseudomorphic high electron mobility transistor (pHEMT), monolithic microwave integrated circuit (MMIC). The HMC8401 is a wideband low noise amplifier which operates between dc and 28 GHz. The amplifier provides 14.5 dB of gain, 1.5 dB noise figure, 26 dBm output IP3 and 16.5 dBm of output power at 1 dB gain compression while requiring 60 mA from a 7.5 V supply. The HMC8401 also has a gain control option, V_GG2. The HMC8401 amplifier input/outputs are internally matched to 50 Ω facilitating integration into multichip modules (MCMs). All data is taken with the chip connected via two 0.025 mm (1 mil) wire bonds of minimal length 0.31 mm (12 mils).

Applications

• Test instrumentation
• Microwave radios and very small aperture terminals (VSATs)
• Military and space
• Telecommunications infrastructure
• Fiber optics
