HMC787A

RECOMMENDED FOR NEW DESIGNS

GaAs, MMIC, Fundamental Mixer, 3 GHz to 10 GHz

Analog Devices HMC787A Product Info

10 February 2026 6

Features

HMC787ALC3B

Conversion loss: 9 dB typical at 3 GHz to 9 GHz

Local oscillator (LO) to radio frequency (IF) isolation: 43 dB typical at 3 GHz to 9 GHz

RF to intermediate frequency (IF) isolation: 26 dB typical at 3 GHz to 9 GHz

Input third-order intercept (IP3): 24 dBm typical at 3 GHz to 9 GHz

Input 1 dB compression point (P1dB): 17 dBm typical at 3 GHz to 9 GHz

Input second-order intercept (IP2): 67 dBm typical at 3 GHz to 9 GHz

Passive double-balanced topology

Wide IF frequency range: dc to 4 GHz

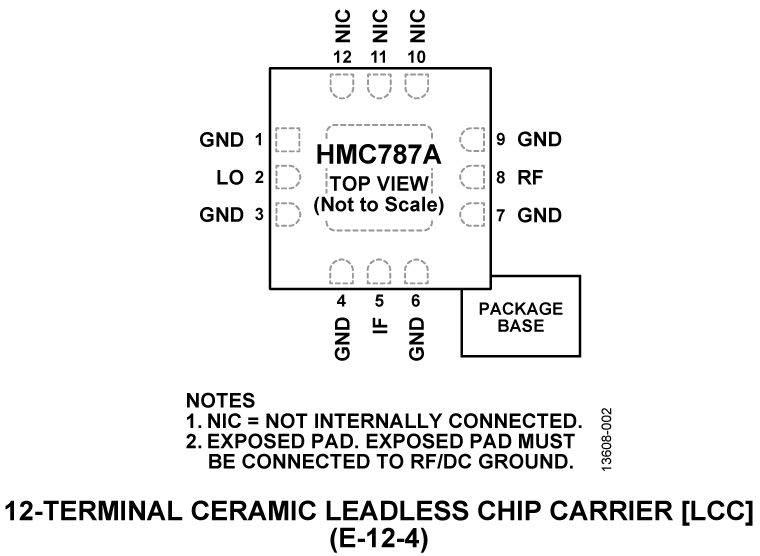

12-terminal, ceramic, leadless chip carrier (LCC) package

HMC787AG (CHIP)
Downconverter

Conversion loss

8 dB typical for 3 GHz to 7 GHz
10 dB typical for 7 GHz to 10 GHz

LO to IF isolation

44 dB typical for 3 GHz to 7 GHz
42 dB typical for 7 GHz to 10 GHz

RF to IF isolation

21 dB typical for 3 GHz to 7 GHz
32 dB typical for 7 GHz to 10 GHz

Input IP3

22 dBm typical for 3 GHz to 7 GHz
28 dBm typical for 7 GHz to 10 GHz

Input P1dB

15 dBm typical for 3 GHz to 7 GHz
17 dBm typical for 7 GHz to 10 GHz

Passive double balanced topology
Wide IF frequency range: dc to 4 GHz

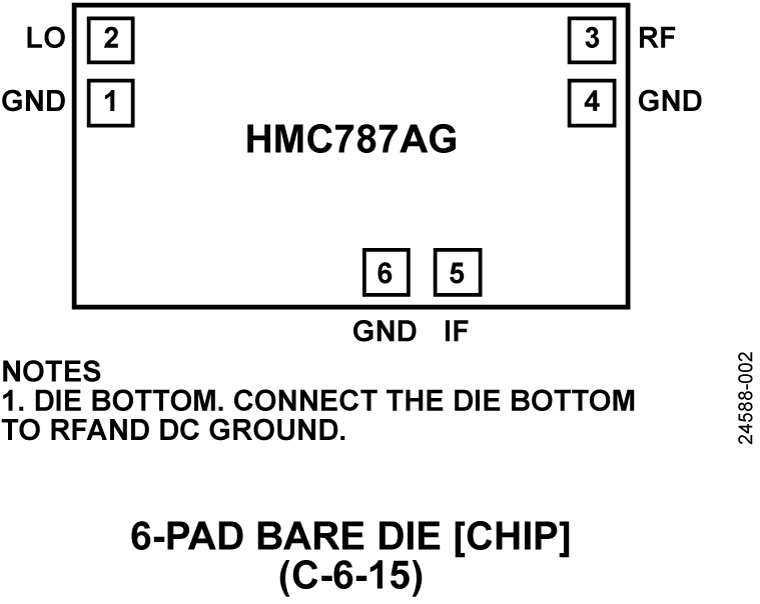

6-pad, bare die [CHIP]

Part details & applications

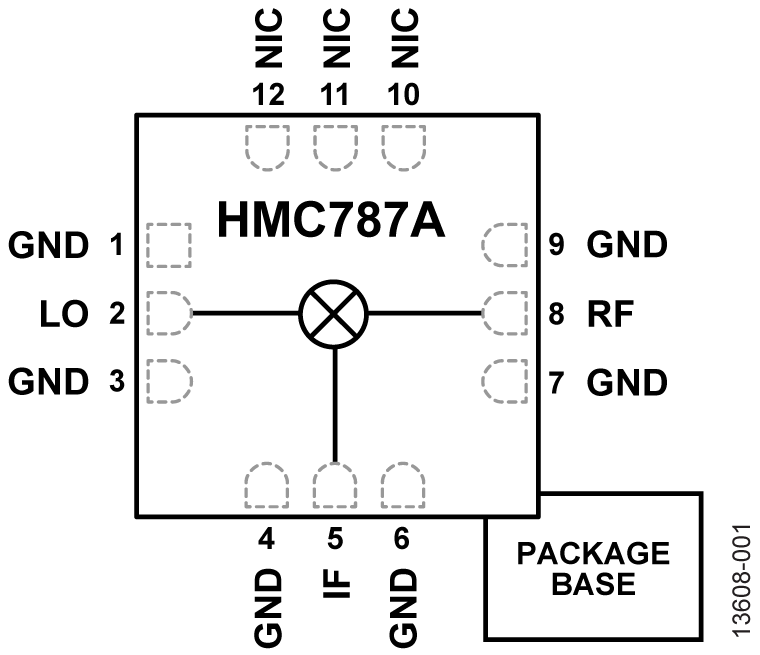

HMC787ALC3B

The HMC787A is a general-purpose, double balanced mixer in a 12-terminal, RoHS compliant, ceramic leadless chip carrier (LCC) package that can be used as an upconverter or down- converter from 3 GHz to 10 GHz. This mixer is fabricated in a gallium arsenide (GaAs), metal semiconductor field effect transistor (MESFET) process and requires no external components or matching circuitry. The HMC787A provides excellent local oscillator (LO) to radio frequency (RF) and LO to intermediate frequency (IF) isolation due to optimized balun structures and operates with a LO drive level of 17 dBm. The ceramic LCC package eliminates the need for wire bonding and is compatible with high volume, surface-mount manufacturing techniques.

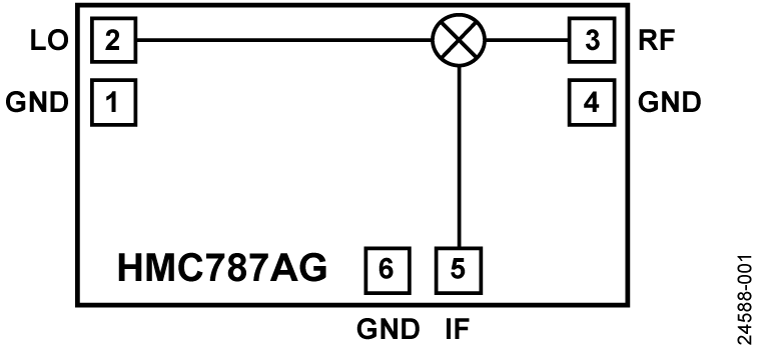

HMC787AG (CHIP)

The HMC787AG is a general-purpose, double balanced mixer that can be used as an upconverter or downconverter from 3 GHz to 10 GHz. This mixer is fabricated in a gallium arsenide (GaAs), metal semiconductor field effect transistor (MESFET) process and requires no external components or matching circuitry.

The HMC787AG provides high local oscillator (LO) to RF and LO to intermediate frequency (IF) isolation due to optimized balun structures and operates with a LO drive level between 13 dBm to 21 dBm.

Applications

Microwave Radio
Industrial, scientific, and medical (ISM) band and ultrawide band (UWB) radio
Test equipment & sensors
Military end use
