HMC678

RECOMMENDED FOR NEW DESIGNS

SMT 13 Gbps, 2:1 Selector

Analog Devices HMC678 Product Info

10 February 2026 5

Features

Supports High Data Rates:
up to 13 Gbps
Single-Ended Inputs
Differential & Single-Ended Outputs
Fast Rise & Fall Times: 17/15 ps
Low Power Consumption: 250 mW typ.

Programmable Differential
Output Voltage Swing: 600 - 1200 mV
Propagation Delay: 125 ps
Single Supply: -3.3V
16 Lead Ceramic 3×3mm
SMT Package: 9mm²

Part details & applications

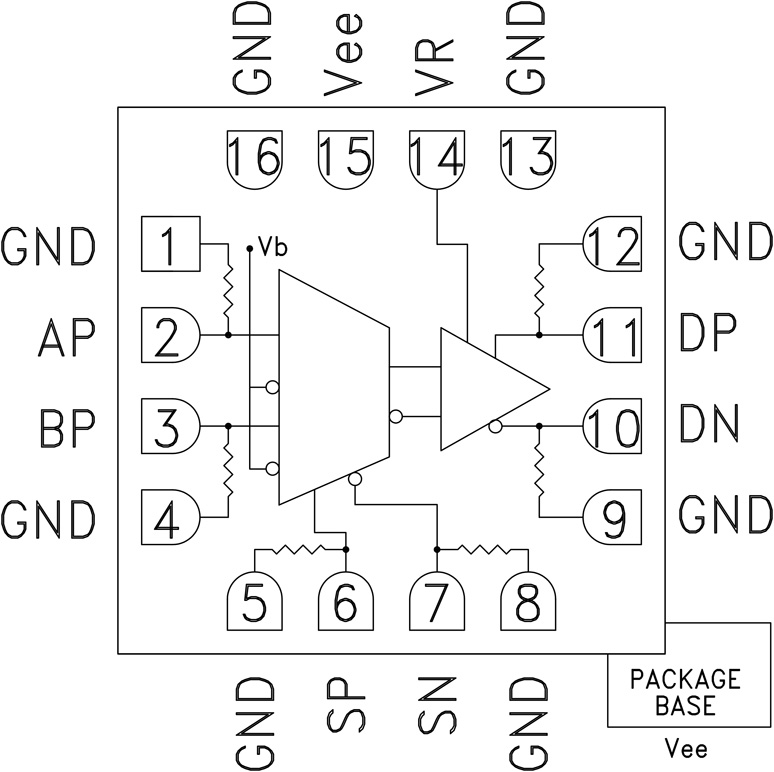

The HMC678LC3C is a 2:1 Selector designed to support data transmission rates of up to 13 Gbps, and selector port operation of up to 13 GHz. The selector routes one of the two single-ended inputs to the differential output upon assertion of the proper select port. All single-ended input signals to the HMC678LC3C are terminated with 50 ohms to ground on-chip, and may be either AC or DC coupled.

The outputs of the HMC678LC3C may be operated either differentially or single-ended. Outputs can be connected directly to a 50 ohm terminated system, while DC blocking capacitors may be used if the terminating system is 50 ohms to a non-ground DC voltage. The HMC678LC3C operates from a single -3.3V dc supply and is available in a ceramic RoHS compliant 3x3 mm SMT package.

APPLICATIONS

2:1 Multiplexer up to 13 Gbps
RF ATE Applications
Broadband Test & Measurement
Serial Data Transmission up to 13 Gbps
Redundant Path Switching
Built-in Test
