Analog Devices HMC525ALC4 Product Info

• Passive: no dc bias required
• Conversion loss: 8 dB typical
• Input IP3: 20 dBm (typical)
• LO to RF isolation: 47 dB (typical)
• IF frequency range: dc to 3.5 GHz

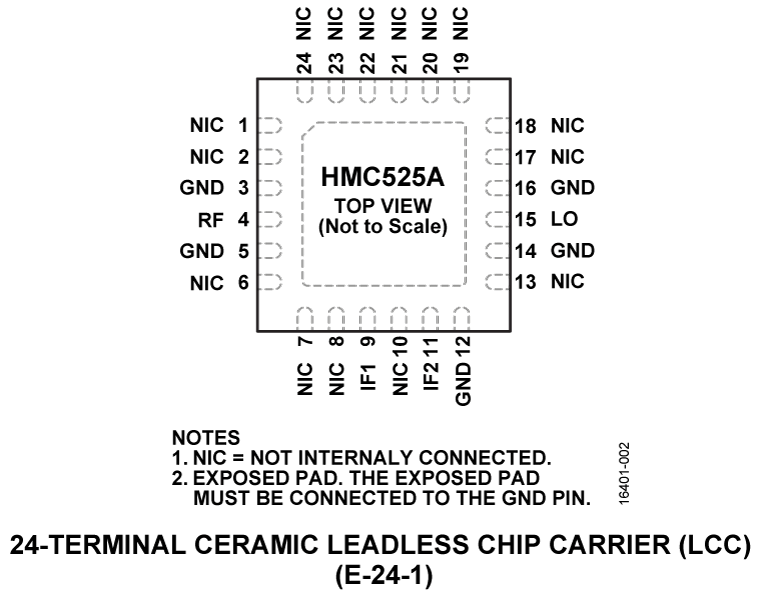

• RoHS compliant, 24-terminal, 4 mm × 4 mm LCC package

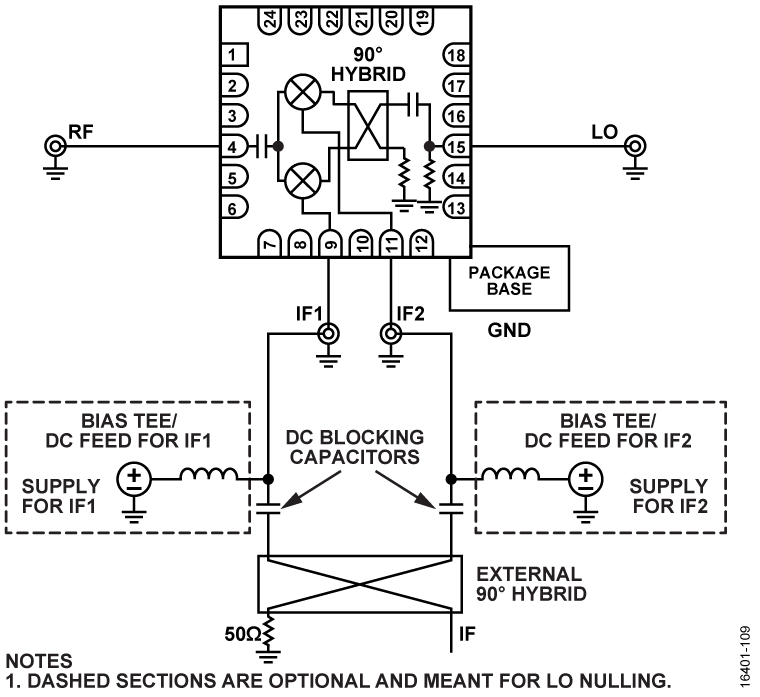

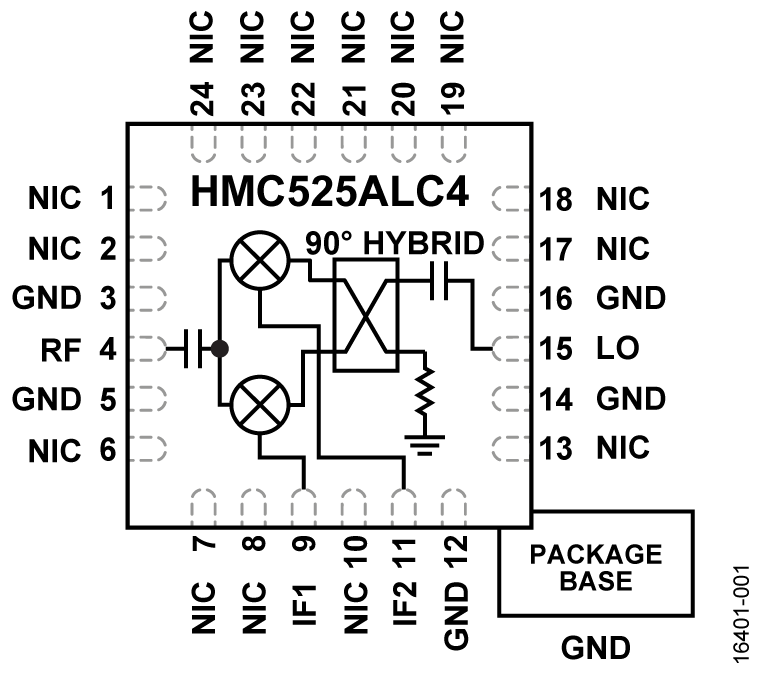

The HMC525ALC4 is a compact gallium arsenide (GaAs), monolithic microwave integrated circuit (MMIC), in phase quadrature (I/Q) mixer in a 24-terminal, RoHS compliant, ceramic leadless chip carrier (LCC) package. The device can be used as either an image reject mixer or a single sideband (SSB) upconverter. The mixer uses two standard double balanced mixer cells and a 90° hybrid fabricated in a GaAs, metal semiconductor field effect transistor (MESFET) process. The HMC525ALC4 is a much smaller alternative to a hybrid style image reject mixer and a SSB upconverter assembly. The HMC525ALC4 eliminates the need for wire bonding, allowing the use of surface-mount manufacturing techniques.

Applications

• Microwave and very small aperture terminal radios
• Test equipment
• Point to point radios
• Military electronic warfare; electronic countermeasure; and command, control, communications, and intelligence
