HMC507
  • HMC507

HMC507

RECOMMENDED FOR NEW DESIGNS

VCO SMT with Fo/2, 6.65 - 7.65 GHz

Analog Devices HMC507 Product Info

10 February 2026 7

Features

  • Dual Output: Fo = 6.65 - 7.65 GHz
    Fo/2 = 3.325 - 3.825 GHz
  • Phase Noise:
    -115 dBc/Hz @100 kHz Typ.
  • Pout: +13.5 dBm
  • No External Resonator Needed
  • QFN Leadless SMT Package, 25 mm2

Part details & applications

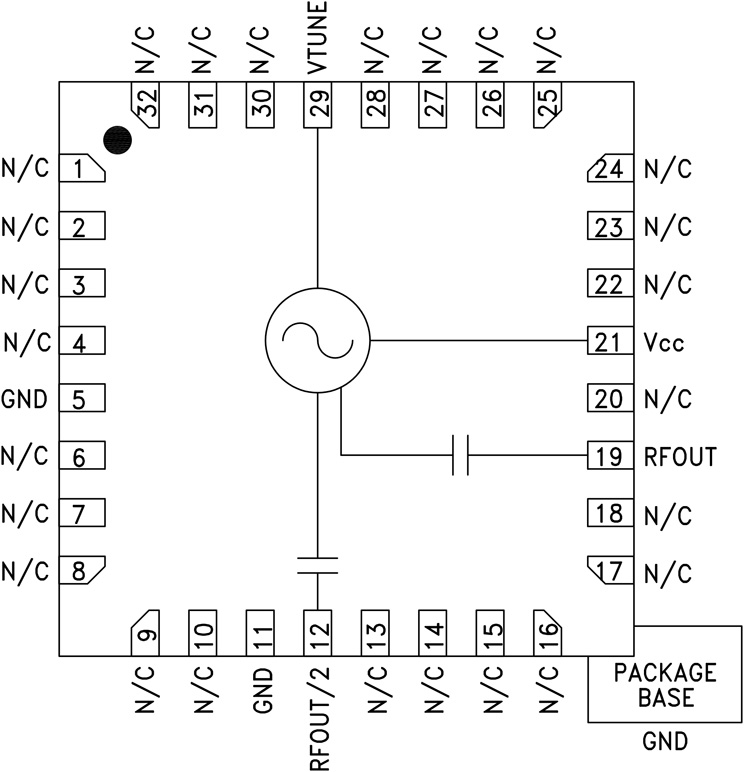

The HMC507LP5(E) is a GaAs InGaP Heterojunction Bipolar Transistor (HBT) MMIC VCO. The HMC507LP5(E) integrates resonators, negative resistance devices, varactor diodes and feature a half frequency output. The VCO’s phase noise performance is excellent over temperature, shock, and process due to the oscillator’s monolithic structure. Power output is +13.5 dBm typical from a +5V supply. The voltage controlled oscillator is packaged in a leadless QFN 5x5 mm surface mount package, and requires no external matching components.

APPLICATIONS

  • VSAT Radio
  • Point to Point/Multi-Point Radio
  • Test Equipment & Industrial Controls
  • Military End-Use
