HMC232A

RECOMMENDED FOR NEW DESIGNS

GaAs, SPDT Switch, Nonreflective, 100 MHz to 12 GHz

Analog Devices HMC232A Product Info

10 February 2026 6

Features

Nonreflective 50 Ω design
Low insertion loss
- 1.5 dB typical to 6 GHz
- 2.5 dB typical to 12 GHz
High isolation
- 50 dB typical to 6 GHz
- 45 dB typical to 12 GHz
High input linearity
- P0.1dB: 28 dBm typical at V_CTRL = −5 V
- P1dB: 30 dBm typical at V_CTRL = −5 V
- IP3: 48 dBm

High power handling
- 30 dBm insertion loss path
- 27 dBm hot switching
Negative control voltage: −7 V to −3 V
ESD rating: 250 V (Class 1A) HBM
No low frequency spurious

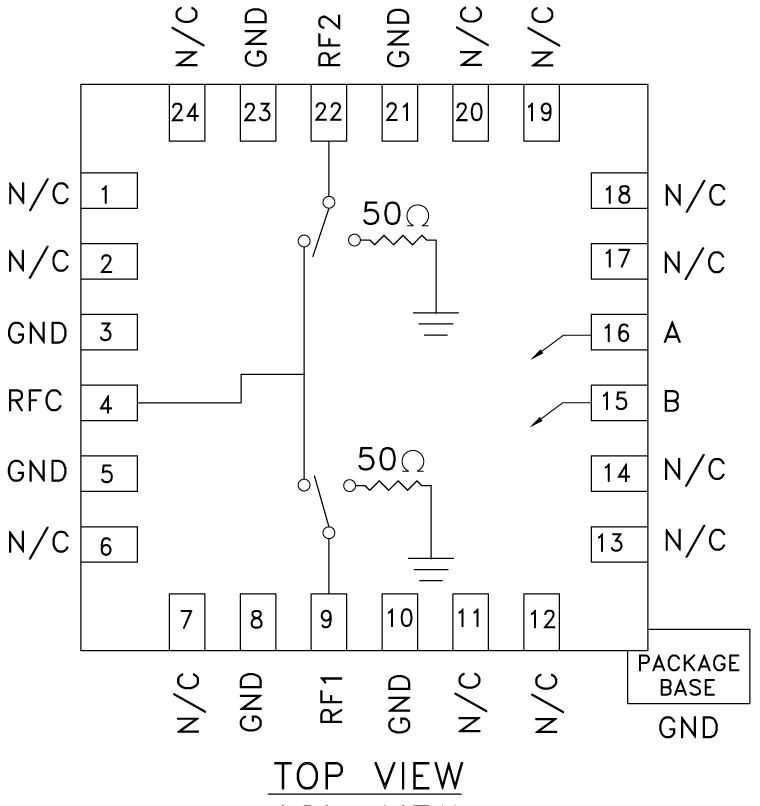

24-lead, 4 mm × 4 mm LFCSP

Part details & applications

The HMC232A is a nonreflective, SPDT, RF switch manufactured in the gallium arsenide (GaAs) process.

The HMC232A operates from 100 MHz to 12 GHz with better than 1.5 dB insertion loss and 50 dB of isolation at 6 GHz and better than 2.5 dB insertion loss and 45 dB of isolation at 12 GHz. The HMC232A has a nonreflective design, and the RF ports are internally terminated to 50 Ω.

The HMC232A switch operates using complementary negative control voltage logic lines of −7 V to −3 V and requires no bias supply.

The HMC232A comes in a 24-lead, 4 mm × 4 mm LFCSP and operates from −40°C to +85°C.

APPLICATIONS

Test instrumentation
Microwave radios and very small aperture terminals (VSATs)
Military radios, radars, and electronic counter measures (ECMs)
Telecommunication infrastructure
