HMC1168
  • HMC1168
  • HMC1168

HMC1168

RECOMMENDED FOR NEW DESIGNS

12.47 GHz to 13.72 GHz MMIC VCO with Half Frequency Output

Analog Devices HMC1168 Product Info

10 February 2026 4

Features

  • Dual output frequency range
    • fOUT = 12.47 GHz to 13.72z GH
    • fOUT/2 = 6.235 GHz to 6.86z GHz
  • Output power (POUT): 10 dBm
  • Single-sideband (SSB) phase noise: −113 dBc/Hz at 100 kHz
  • No external resonator needed

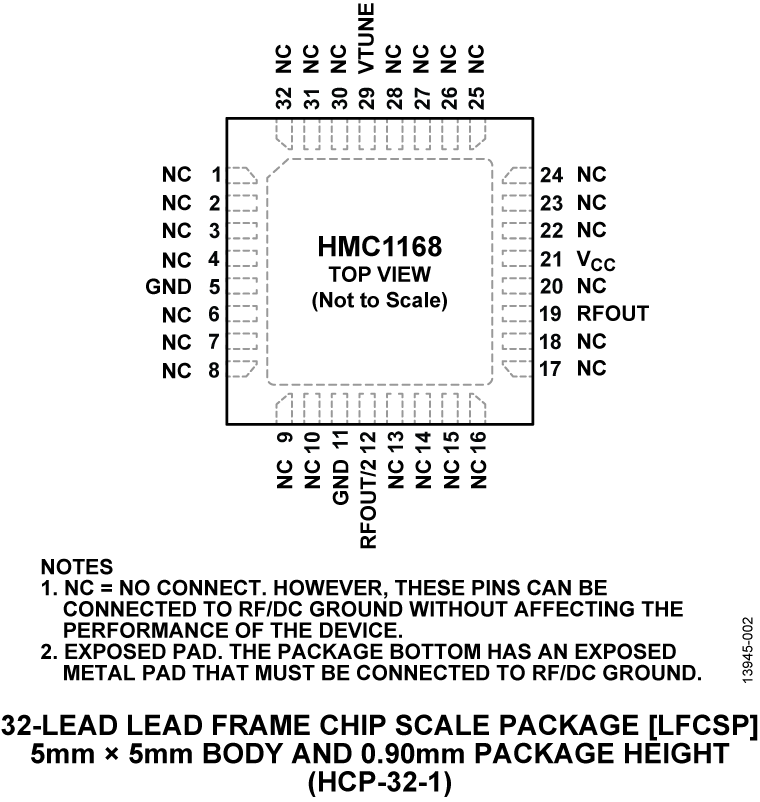

  • RoHS-compliant, 5 mm × 5 mm, 32-lead LFCSP: 25 mm²

Part details & applications

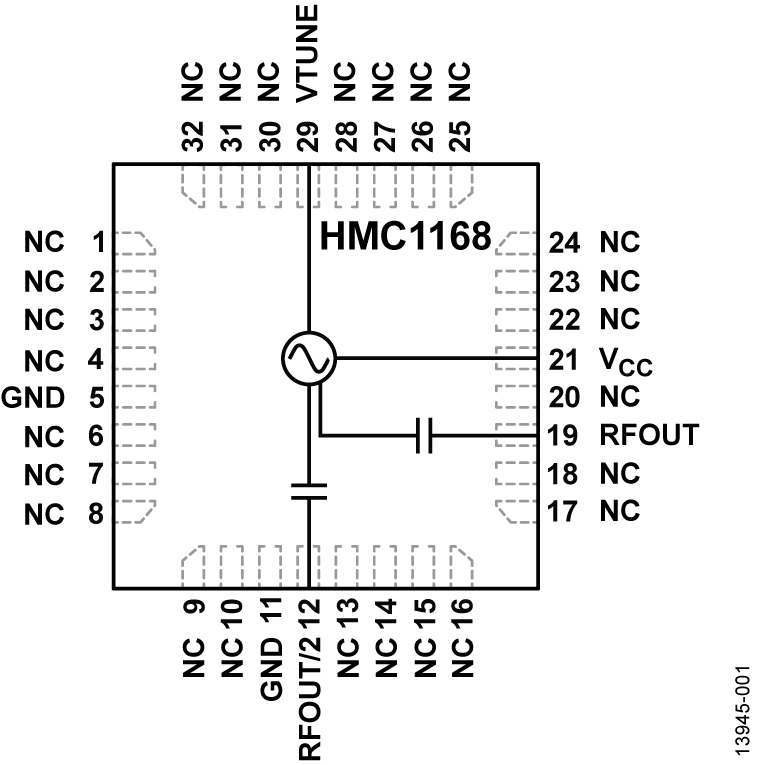

The HMC1168 is a monolithic microwave integrated circuit (MMIC), voltage controlled oscillator (VCO) that integrates a resonator, a negative resistance device, and a varactor diode, and features a half frequency output.

Because of the monolithic construction of the oscillator, the output power and phase noise performance are excellent over temperature

The output power is 10 dBm typical from a 5 V supply voltage. The VCO is housed in a RoHS compliant LFCSP and requires no external matching components.

Applications

  • Point to point and multipoint radios
  • Test equipment and industrial controls
  • Very small aperture terminals (VSATs)
