AD6674

RECOMMENDED FOR NEW DESIGNS

385 MHz BW IF Diversity Receiver

Analog Devices AD6674 Product Info

10 February 2026 6

Features

JESD204B (Subclass 1) coded serial digital outputs
In band SFDR = 83 dBFS at 340 MHz (750 MSPS)
In band SNR = 66.7 dBFS at 340 MHz (750 MSPS)
1.4 W total power per channel at 750 MSPS (default settings)
Noise density = −153 dBFS/Hz at 750 MSPS
1.25 V, 2.5 V, and 3.3 V dc supply operation
Flexible input range
- AD6674-750 and AD6674-1000
  - 1.46 V p-p to 1.94 V p-p (1.70 V p-p nominal)
- AD6674-500
  - 1.46 V p-p to 2.06 V p-p (2.06 V p-p nominal)
95 dB channel isolation/crosstalk

Amplitude detect bits for efficient automatic gain control (AGC) implementation
Noise shaping requantizer (NSR) option for main receiver function
Variable dynamic range (VDR) option for digital predistortion (DPD) function
2 integrated wideband digital processors per channel
- 12-bit numerically controlled oscillator (NCO), up to 4 cascaded half-band filters
Differential clock inputs
Integer clock divide by 1, 2, 4, or 8
Energy saving power-down modes
Flexible JESD204B lane configurations
Small signal dither

Part details & applications

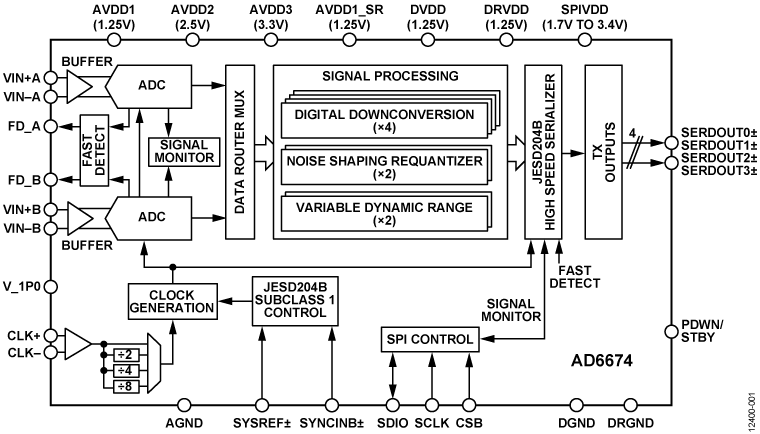

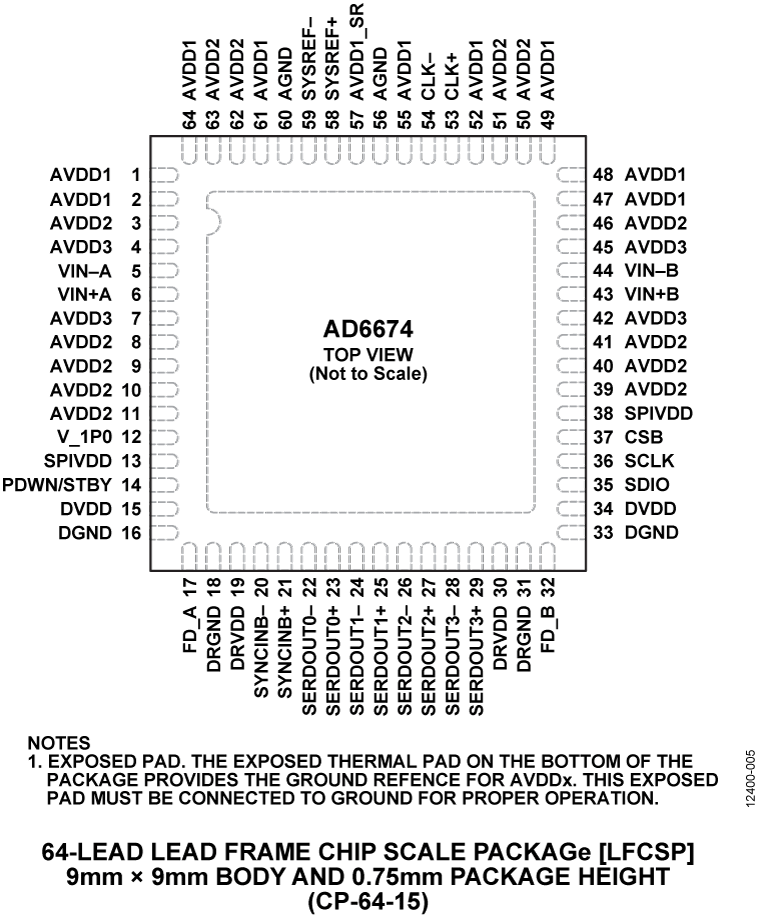

The AD6674 is a 385 MHz bandwidth mixed-signal intermediate frequency (IF) receiver. It consists of two, 14-bit 1.0 GSPS/750 MSPS/500 MSPS analog-to-digital converters (ADC) and various digital signal processing blocks consisting of four wideband DDCs, an NSR, and VDR monitoring. It has an on-chip buffer and a sample-and-hold circuit designed for low power, small size, and ease of use. This product is designed to support communications applications capable of sampling wide bandwidth analog signals of up to 2 GHz. The AD6674 is optimized for wide input bandwidth, high sampling rate, excellent linearity, and low power in a small package.

The dual ADC cores feature a multistage, differential pipelined architecture with integrated output error correction logic. Each ADC features wide bandwidth inputs supporting a variety of user-selectable input ranges. An integrated voltage reference eases design considerations.

Applications

Diversity multiband, multimode digital receivers 3G/4G, TD-SCDMA, W-CDMA, GSM, LTE, LTE-A
DOCSIS 3.0 CMTS upstream receive paths
HFC digital reverse path receivers
