HMC1164
  • HMC1164
  • HMC1164

HMC1164

RECOMMENDED FOR NEW DESIGNS

10.38 GHz to 11.30 GHz MMIC VCO with Half Frequency Output

Analog Devices HMC1164 Product Info

10 February 2026 5

Features

  • Dual output frequency range
    fOUT = 10.38 GHz to 11.30 GHz
    fOUT/2 = 5.19 GHz to 5.65 GHz

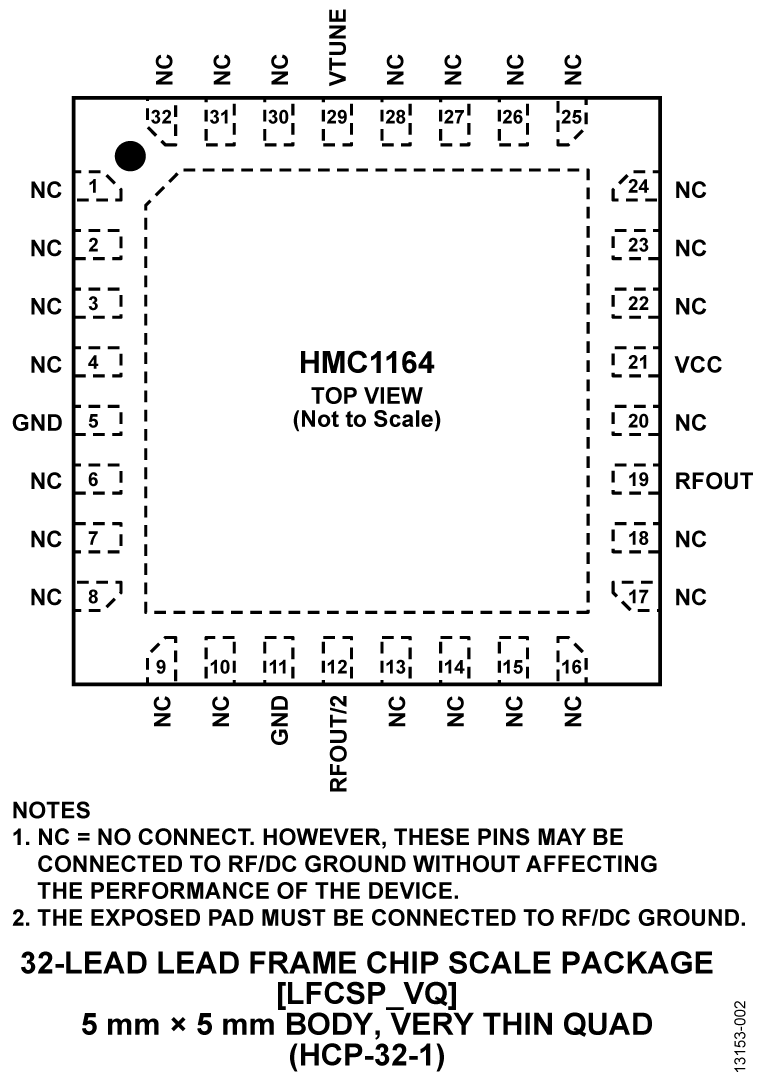

  • 32-lead, RoHS compliant, 5 mm × 5 mm LFCSP (25 mm2)
  • Single-side band (SSB) phase noise
    −86 dBc/Hz typical at 10 kHz
    −114 dBc/Hz typical at 100 kHz
  • No external resonator needed
  • Power output (POUT): 8 dBm

Part details & applications

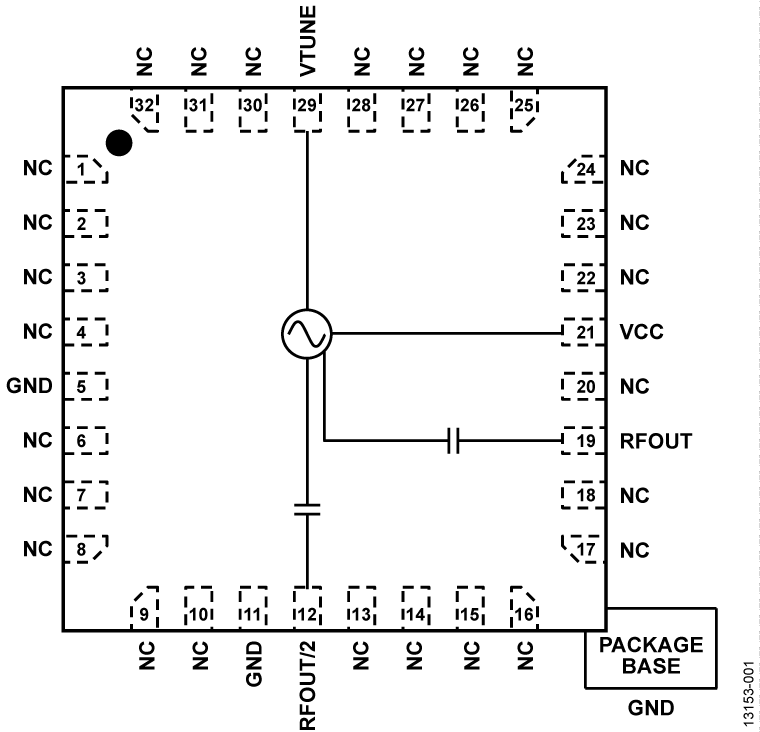

The HMC1164 is a monolithic microwave integrated circuit (MMIC), voltage controlled oscillator that integrates a resonator, a negative resistance device, and a varactor diode, and features a half frequency output.

Because of the monolithic construction of the oscillator, the output power and phase noise performance are excellent over temperature.

The power output is 8 dBm typical from a 5 V supply voltage. The voltage controlled oscillator is housed in a RoHS-compliant LFCSP package and requires no external matching components.

APPLICATIONS

  • Point to point and multipoint radios
  • Test equipment and industrial controls
  • Very small aperture terminals (VSATs)
