Analog Devices Inc.
0
RECOMMENDED FOR NEW DESIGNS

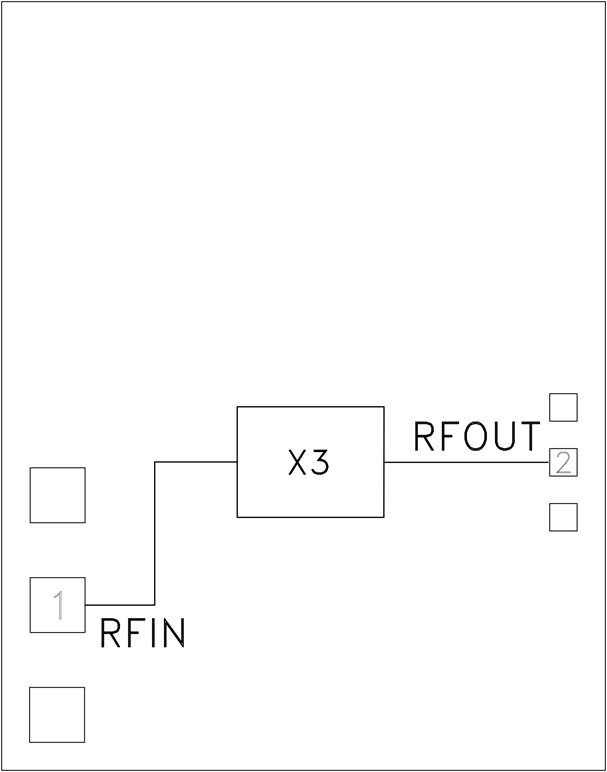

The HMC-XTB110 is a monolithic ×3 Passive Frequency Multiplier which utilizes GaAs Shottky Diode technology, and exhibits low conversion loss and high Fo isolation. This wideband ×3 multiplier requires no DC power, and is targeted to high volume applications where frequency ×3 of a lower frequency is more economical than directly generating a higher frequency. All bond pads and the die backside are Ti/Au metallized. The HMC-XTB110 Passive ×3 MMIC is compatible with conventional die attach methods, as well as thermocompression and thermosonic wire bonding, making it ideal for MCM and hybrid microcircuit applications. All data shown herein is measured with the chip in a 50 Ω environment and contacted with RF probes.
APPLICATIONS
