DS3501

PRODUCTION

High-Voltage NV I²C Potentiometer with Temperature Sensor and LUT Provides a VCOM Calibrator Solution for TFT-LCD Panels

Analog Devices DS3501 Product Info

10 February 2026 3

Features

128 Wiper Tap Points
Full-Scale Resistance: 10kΩ
On-Chip Temperature Sensor and ADC
36-Byte Lookup Table (LUT)
I²C-Compatible Serial Interface
Address Pins Allow Up to Four DS3501s to Share the Same I²C Bus
Digital Operating Voltage: 2.7V to 5.5V
Analog Operating Voltage: 4.5V to 15.5V
Operating Temperature: -40°C to +100°C
Pin and Software Compatible with ISL95311 (Default Mode)
10-Pin µSOP Package

Part details & applications

The DS3501 is a 7-bit, nonvolatile (NV) digital potentiometer featuring an output voltage range of up to 15.5V. Programming is accomplished by an I²C-compatible interface, which can operate at speeds of up to 400kHz. External voltages are applied at the RL and RH inputs to define the lowest and highest potentiometer outputs.

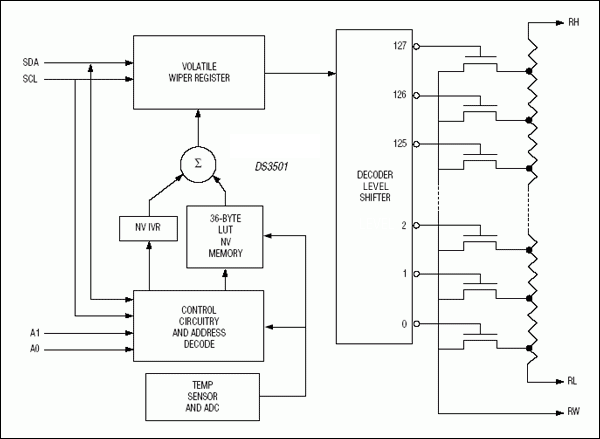

The DS3501 contains an on-chip temperature sensor and associated analog-to-digital converter (ADC). The ADC output addresses a 36-byte NV lookup table (LUT). The LUT output can drive the pot directly or be added to an NV initial-value register (IVR) to drive the pot. This flexible LUT-based architecture allows the DS3501 to provide a temperature-compensated potentiometer output with arbitrary slope.
