ADXL380

RECOMMENDED FOR NEW DESIGNS

Low Noise, Low Power, Wide Bandwidth, 3-Axis MEMS Accelerometer

Analog Devices ADXL380 Product Info

10 February 2026 5

Features

Ultralow noise density: 20 μg/√Hz (XY), 27 μg/√Hz (Z)
Low power consumption
- High performance: 340 μA
- Ultra low power: 33 μA
Wide bandwidth: 4 kHz
- Relative flatness with equalization: <0.5 dB
- Relative flatness without equalization: <2 dB
Low latency: group delay <110 μs
Digital features
- 16-bit ADC
- Multiprotocol serial interfaces: SPI or I²C
- Multiprotocol audio data output: I²S, TDM, and PDM
- Programmable LPF and HPF
- Data synchronous or asynchronous sampling
- Output FIFO: 320 word

Built-in features for system-level power savings
- Single tap, double tap, and triple tap detection
- Activity and inactivity detection
- Configurable interrupt modes
Integrated temperature sensor
Voltage range options
- V_S with internal regulators: 2.25 V to 3.6 V (or V_1P8 at 1.8 V)
- V_DDIO: 1.14 V to 3.6 V (1.62 V to 3.6 V for full temperaturerange)
Electromechanical self test
10,000 g mechanical shock survival
RoHS compliant
Operating temperature range: −40°C to +85°C

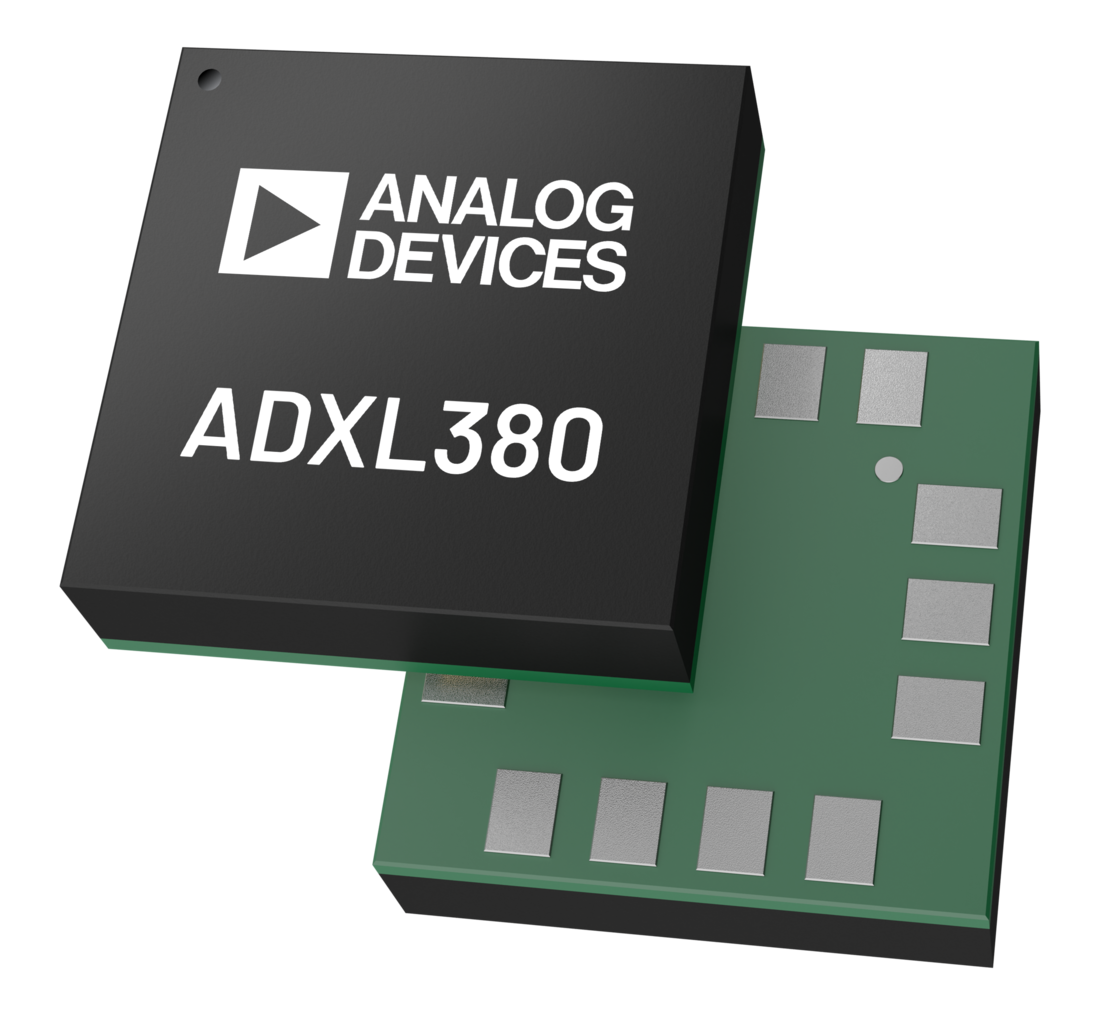

14-terminal, 2.9 mm × 2.8 mm × 0.87 mm, LGA package

Part details & applications

The ADXL380 is a low noise density, low power, 3-axis accelerometer with selectable measurement ranges. The ADXL380 supports the ±4 g, ±8 g, and ±16 g ranges.

The ADXL380 offers industry leading noise, enabling precision applications with minimal calibration. The low noise and low power ADXL380 enables accurate measurements of audio signals or heart sounds even in high vibration environments.

The ADXL380 multifunction pin names may be referenced only by their relevant function for either the serial peripheral interface (SPI) or inter-IC(I2C) interface, or these pin names can be referenced by their audio function (pulse density modulation (PDM), inter-IC sound (I2S), or time division multiplexing (TDM)).

In addition to its low power consumption, the ADXL380 has many features to enable true system level performance. These features include a built-in micropower temperature sensor, singletap, double tap, and triple tap detection, and a state machine to prevent false triggering. In addition, the ADXL380 has provisions for external control of the sampling time and/or an external clock.

The ADXL380 operates on a wide, 2.25 V to 3.6 V supply range (or 1.8 V supply) and can interface, if necessary, to a host operating on a separate supply voltage. The ADXL380 is available in a 14-terminal, 2.9 mm × 2.8 mm × 0.87 mm, LGA package.

APPLICATIONS

Audio and active noise cancellation (ANC)
Robotics
Wearables and low power motion detection
Seismic imaging
Condition-based monitoring
