ADXL377

LAST TIME BUY

Small, Low Power, 3-Axis ±200 g Accelerometer

Analog Devices ADXL377 Product Info

10 February 2026 4

Features

3-axis sensing
Small, low profile package
- 3 mm × 3 mm × 1.45 mm LFCSP
Low power: 300 μA (typical)
Single-supply operation: 1.8 V to 3.6 V

10,000 g shock survival
Excellent temperature stability
Bandwidth adjustment with a single capacitor per axis
RoHS/WEEE and lead-free compliant

Part details & applications

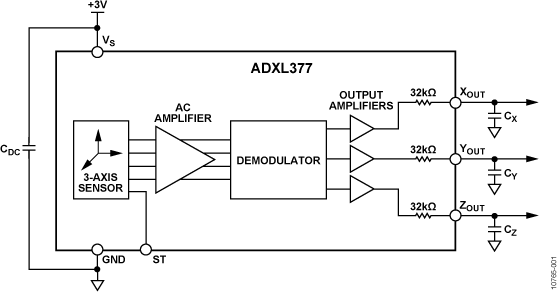

The ADXL377 is a small, thin, low power, complete 3-axis accelerometer with signal conditioned voltage outputs. The ADXL377 measures acceleration resulting from motion, shock, or vibration with a typical full-scale range of ±200 g.

The user selects the bandwidth of the accelerometer using the C_X, C_Y, and C_Z capacitors at the X_OUT, Y_OUT, and Z_OUT pins. Bandwidths can be selected to suit the application, with a range of 0.5 Hz to 1300 Hz for the x-axis and y-axis and a range of 0.5 Hz to 1000 Hz for the z-axis.

The ADXL377 is available in a small, low profile, 3 mm × 3 mm × 1.45 mm, 16-lead lead frame chip scale package (LFCSP_LQ).

APPLICATIONS

Concussion and head trauma detection
High force event detection
