Analog Devices MAX1415 Product Info

• Improve Measurement Quality with Excellent DC Accuracy
  • 16-Bit Sigma-Delta ADC with Two Fully-Differential Input Channels
  • 0.0015% INL (max) with No Missing Codes
• Minimize Power Consumption with Low-Power Dissipation
  • 1.2mW (max) 3V supply
  • 2μA (typ) Power-Down Current
• Lower System Cost with Integrated Functionality
  • PGA with 1 to 128 Programmable Gain
  • Optional Input Buffers
  • > 98dB 50Hz/60Hz Rejection
• Increase System Accuracy with Built-in Self Calibration
  • On-Demand Offset and Gain Self-Calibration and System Calibration
  • User-Programmable Offset and Gain Registers
• Flexible Single Supply Options
  • 2.7V to 3.6V (MAX1415)
  • 4.75V to 5.25V (MAX1416)
• Pin Compatible Upgrades for MX7705/AD7705

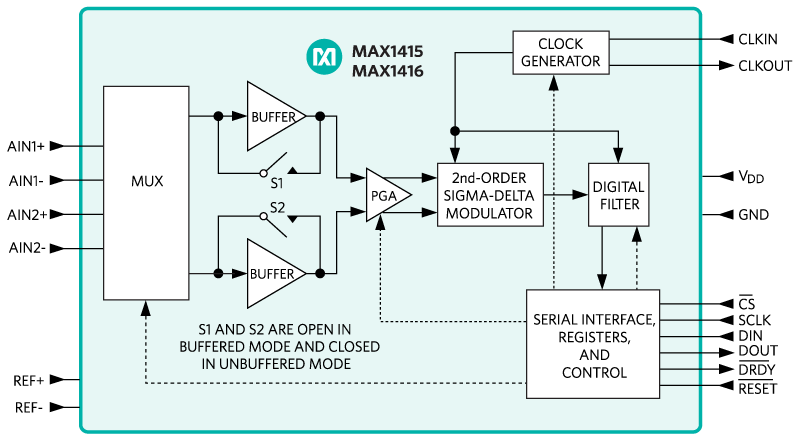

The MAX1415/MAX1416 low-power, 2-channel, serial-output analog-to-digital converters (ADCs) use a sigma-delta modulator with a digital filter to achieve 16-bit resolution with no missing codes. These ADCs are pin-compatible upgrades to the MX7705/AD7705. The MAX1415/MAX1416 feature an internal oscillator (1MHz or 2.4576MHz), an on-chip input buffer, and a programmable gain amplifier (PGA). The devices offer an SPI™-/QSPI™-/MICROWIRE™-compatible serial interface.

The MAX1415/MAX1416 are available in 16-pin PDIP, SO, and TSSOP packages.

Applications

• Flow and Gas Meters
• Industrial Instruments
• Loop-Powered Systems
• Medical Instrumentation
• Pressure Transducers
• RTD Measurements
• Strain-Gauge Measurements
• Thermocouple Measurements
• Weigh Scales
