Analog Devices ADV7850 Product Info

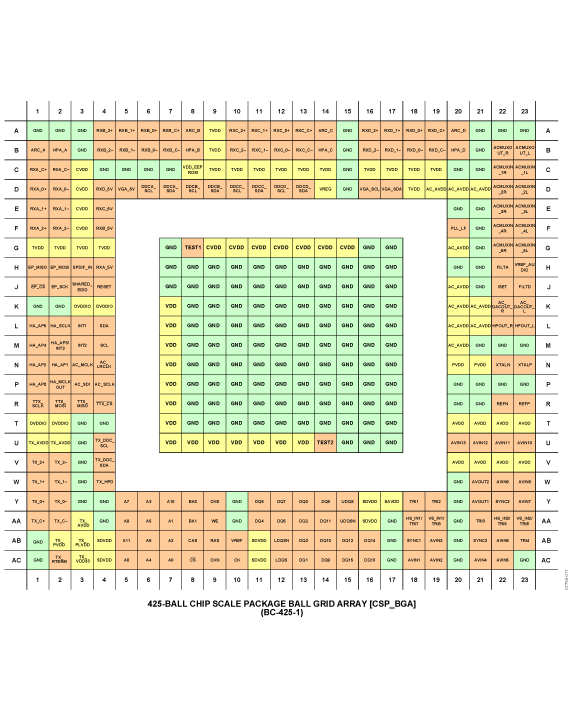

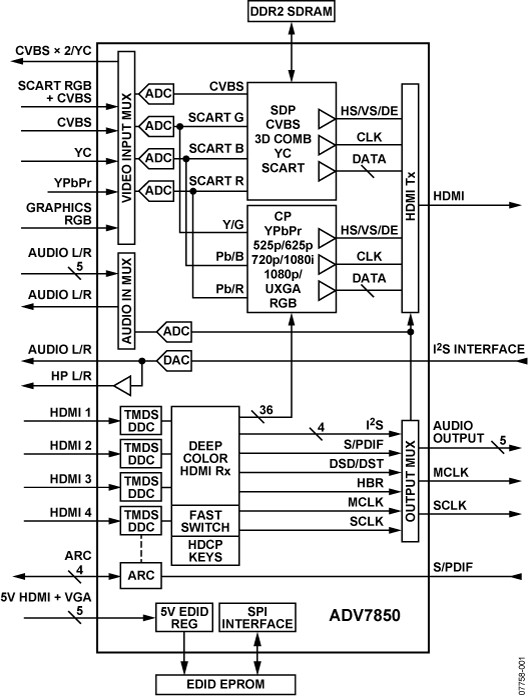

The ADV7850 is a high quality, single chip, multiformat video decoder graphics digitizer with an integrated 4:1 multiplexed HDMI^® receiver.

This multiformat 3D comb filter decoder supports the conversion of PAL, NTSC, and SECAM standards in the form of a composite or an S-Video input signal into a HDMI output stream. SCART and overlay functionality are enabled by the ability of the ADV7850 to process CVBS and standard definition RGB signals simultaneously.

The ADV7850 contains one main component processor (CP) that processes YPrPb and RGB component formats, including RGB graphics. The ADV7850 can operate in quad HDMI and analog input mode, thus allowing for fast switching between the analog video inputs and HDMI.

The ADV7850 supports the decoding of a component RGB/ YPrPb video signal into a HDMI output stream. The support for component video includes 525i, 625i, 525p, 625p, 720p, 1080i, 1080p, and 1250i standards, as well as many other SMPTE and HD standards.

The ADV7850 supports graphics digitization. The ADV7850 is capable of digitizing RGB graphics signals from VGA to UXGA rates and converting them into an HDMI output stream. Internal EDID RAM is available for one graphics port.

The ADV7850 incorporates a quad input HDMI-compatible receiver that supports all HDTV formats up to 3D 1080p 60 Hz and 2160P 24 Hz.

The ADV7850 supports full HDCP decryption with internal key storage. The ADV7850 features HDCP authentication on all ports simultaneously. The feature allows fast switching between HDMI ports. Sync measurements and status monitoring are also available for all HDMI ports. Each HDMI port has dedicated 5 V detect and hot plug assert pins. The HDMI receiver also includes an integrated equalizer that ensures robust operation of the interface with cable lengths up to 30 meters. The HDMI receiver has advanced audio functionality, such as a mute flag, that prevents a
