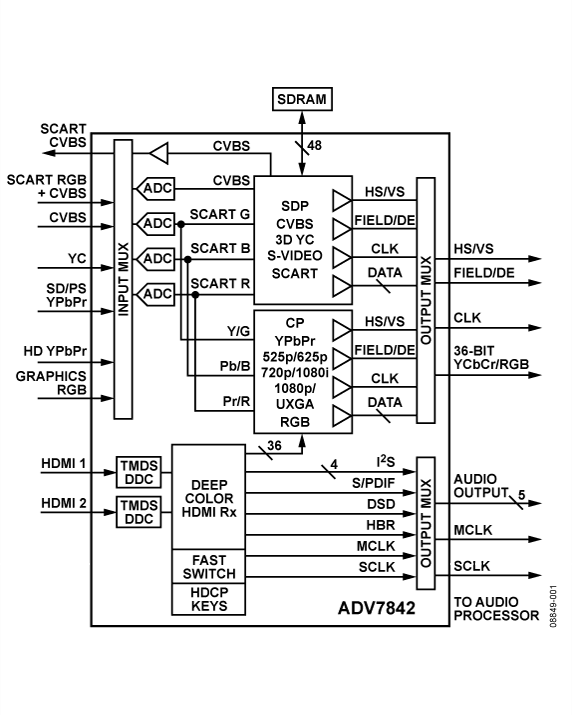

ADV7842

RECOMMENDED FOR NEW DESIGNS

Dual HDMI 1.4 Fast Switching Receiver with 12-Bit, 170 MHz Video and Graphics Digitizer and 3D Comb Filter Decoder

Analog Devices ADV7842 Product Info

10 February 2026 6

Features

Dual HDMI 1.4 fast switching receiver
170 MHz video and graphics digitizer
3D comb filter video decoder
SCART fast blank support
Adaptive HDMI equalizer
Integrated CEC controller
HDMI repeater support

Advanced VBI data slicer
256-ball, 17 mm × 17 mm BGA package
2:1 HDMI 1.4 225 MHz receiver
Xpressview™ fast switching of HDMI ports
See data sheet for additional features

Part details & applications

The ADV7842 is a dual HDMI 1.4 fast switching rReceiver with 12-Bit, 170 MHz video and graphics digitizer and 3D comb filter decoder. It is a highly flexible 36-bit pixel output interface with nternal EDID RAM for HDMI and graphics.

The ADV7842 incorporates a dual input HDMI 1.4-compatible receiver that supports all HDTV formats up to 1080p and display resolutions up to UXGA (1600 × 1200 at 60 Hz).

The ADV7842 incorporates Xpressview™ fast switching on both input HDMI ports. Using the Analog Devices, Inc., hardware-based HDCP engine that minimizes software overhead, Xpressview technology allows fast switching between any HDMI input ports in less than 1 second.

Applications

Advanced TVs
PDP HDTVs
LCD TVs (HDTV ready)
LCD/DLP® rear projection HDTVs
CRT HDTVs
LCoS™ HDTVs
AVR video receivers
LCD/DLP front projectors
HDTV STBs with PVR
Projectors
