ADRF5715

RECOMMENDED FOR NEW DESIGNS

Silicon Digital Attenuator, 1-Bit, 1 MHz to 30 GHz

Analog Devices ADRF5715 Product Info

10 February 2026 4

Features

Ultrawideband frequency range: 1 MHz to 30 GHz
Attenuation range: 16 dB typical
Low insertion loss
- 0.6 dB at 8 GHz
- 0.8 dB at 18 GHz
- 1.15 dB at 30 GHz
Attenuation accuracy
- ±0.15 dB typical up to 18 GHz
- ±0.20 dB typical 18 GHz up to 30 GHz
High input linearity
- P0.1dB insertion loss state: 33 dBm typical
- P0.1dB 16 dB attenuation state: 30 dBm typical
- IP3 insertion loss state: 51 dBm typical
- IP3 16 dB attenuation state: 49 dBm typical

High RF power handling
- Input at ATTIN and ATTOUT
  - 30 dBm typical steady state average
  - 33 dBm typical steady state peak
RF amplitude settling time (0.1 dB of final RF_OUT): 6.5 μs typical
Single-supply operation supported
Tight in relative phase
No low frequency spurious signals
CMOS-/LVTTL-compatible
12-terminal, 2.25 mm x 2.25 mm, land grid array [LGA] package

Part details & applications

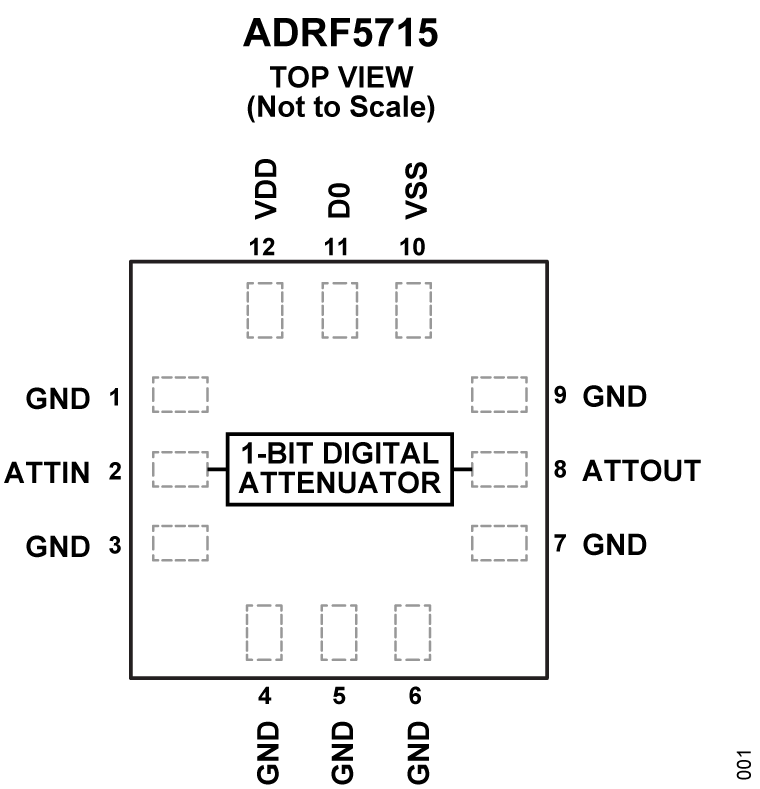

The ADRF5715 is a silicon, 1-bit digital attenuator with 16 dB attenuation.

The ADRF5715 operates from 1 MHz to 30 GHz with better than 1.15 dB of insertion loss and excellent attenuation accuracy. The ATTIN and ATTOUT port of the ADRF5715 have an RF power handling capability of 30 dBm steady state average and 33 dBm steady state peak.

The ADRF5715 requires a dual-supply voltage of +3.3 V and −3.3 V. The device features complementary metal-oxide semiconductor (CMOS)-/low voltage transistor to transistor logic (LVTTL)-compatible controls.

The ADRF5715 can also operate with a single positive supply voltage (V_DD) applied while the negative supply voltage (VSS) is tied to ground. See the Theory of Operation section for more details.

The ADRF5715 RF ports are designed to match a characteristic impedance of 50 Ω. The ADRF5715 comes in a 12-terminal, 2.25 mm × 2.25 mm, RoHS-compliant, LGA package and operates from −40°C to +105°C.

APPLICATIONS

Industrial scanners

Test and instrumentation

Cellular infrastructure: 5G millimeter wave

Military radios, radars, electronic counter measures (ECMs)

Microwave radios and very small aperture terminals (VSATs)
