ADRF5448

RECOMMENDED FOR NEW DESIGNS

Die on Carrier, Silicon SP4T Switch, Nonreflective, 100 MHz to 45 GHz

Analog Devices ADRF5448 Product Info

10 February 2026 6

Features

Ultrawideband frequency range: 100 MHz to 45 GHz
Nonreflective 50 Ω design
Low insertion loss
- 1.4 dB at 18 GHz typical
- 2.4 dB at 40 GHz typical
- 3.5 dB at 45 GHz typical
High isolation
- 55 dB at 18 GHz typical
- 42 dB at 40 GHz typical
- 43 dB at 45 GHz typical
High input linearity
- P0.1dB: 29 dBm typical
- IIP3: 52 dBm typical

High power handling
- 29 dBm through path
- 17.5 dBm terminated path
- 29 dBm hot switching
No low frequency spurs
On and off time (50% V_CTRL to 10% to 90% of RF_OUT): 20 ns
0.1 dB settling time (50% V_CTRL to 0.1 dB of final RF_OUT): 60 ns

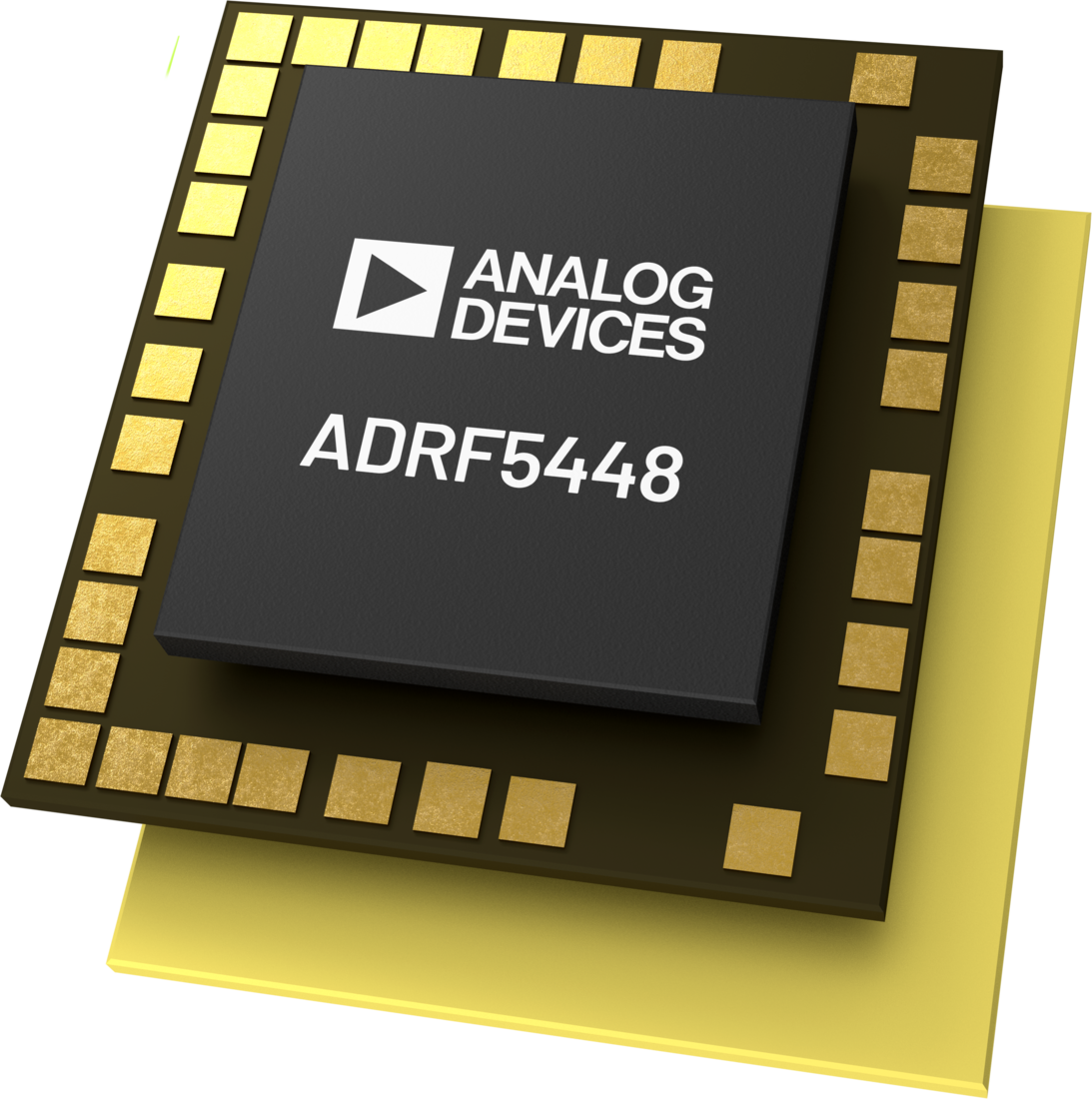

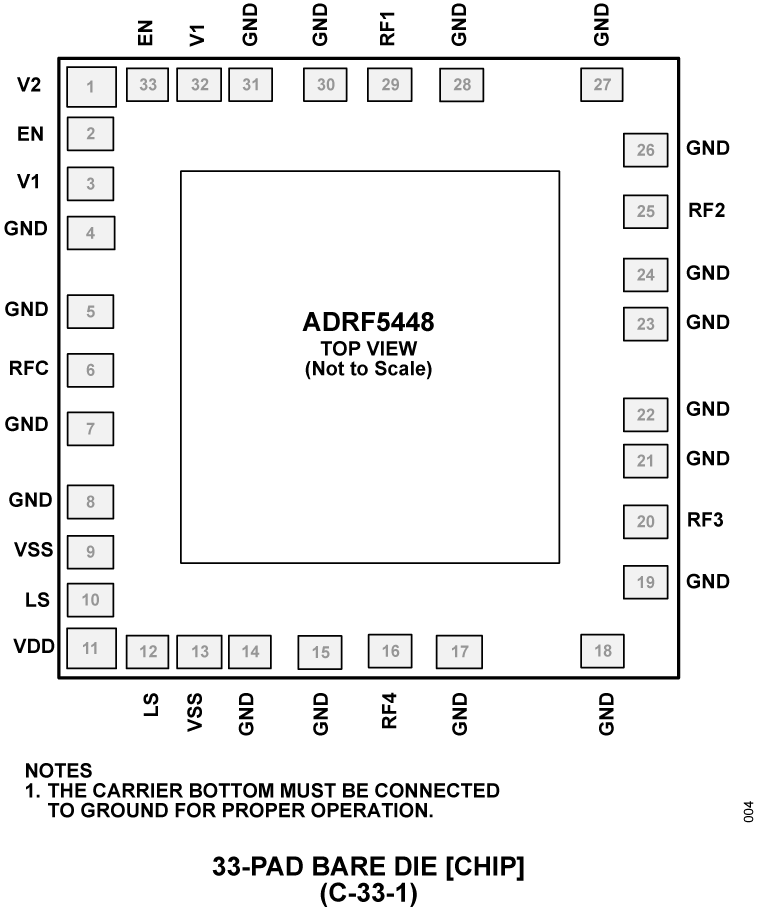

33-pad, 2.971 mm × 3.021 mm, Bare Die [CHIP

Part details & applications

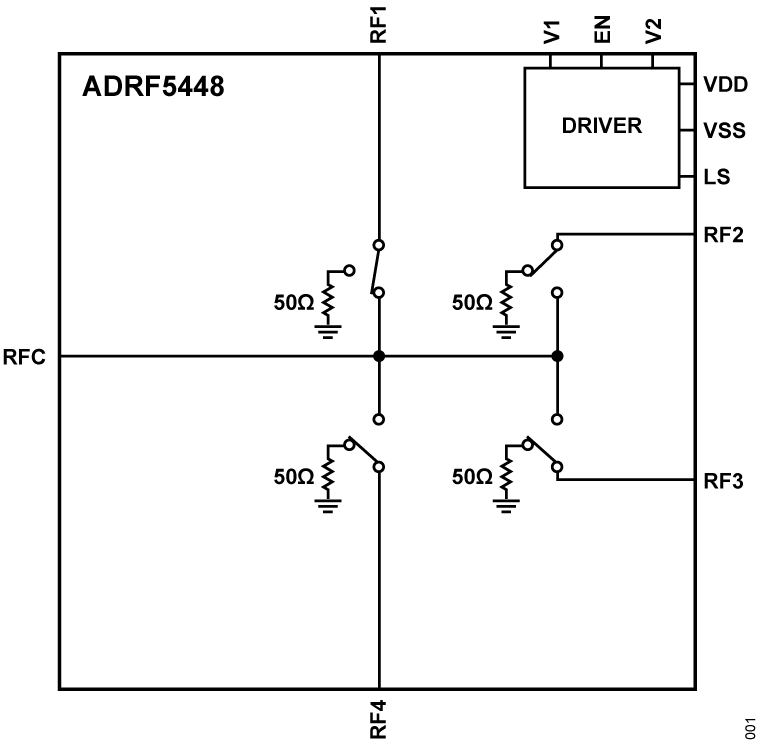

The ADRF5448 is a nonreflective, SP4T switch manufactured in the silicon process attached on a gallium arsenide (GaAs) carrier substrate. The substrate incorporates the bond pads for chip and wire assembly, and the bottom of the device is metalized, connected to ground.

The ADRF5448 operates from 100 MHz to 45 GHz with insertion loss less than 3.5 dB and isolation higher than 40 dB. The device has an RF input, power handling capability of 29 dBm for the through path, 17.5 dBm for the terminated path, and 29 dBm for the hot switching.

The ADRF5448 requires a positive supply (V_DD) of +3.3 V and a negative supply (V_SS) of −3.3 V. The device employs complementary metal-oxide semiconductor (CMOS)-/low-voltage transistor to transistor logic (LVTTL)-compatible controls.

The ADRF5448 is designed to match a characteristic impedance of 50 Ω and can operate from −40°C to +105°C.

APPLICATIONS

Industrial scanners
Test instrumentation
Cellular infrastructure mmWave 5G
Military radios, radars, and electronic counter measures (ECMs)
Microwave radios and very small aperture terminals (VSATs)
