ADRF5300

RECOMMENDED FOR NEW DESIGNS

Silicon SPDT Switch, Reflective, 24 GHz to 32 GHz

Analog Devices ADRF5300 Product Info

10 February 2026 4

Features

Reflective design
Low insertion loss: 1.1 dB
High isolation: 38 dB
High input linearity
- P0.1dB: 37 dBm
- IP3: 65 dBm
RF settling time (0.1 dB final RF output): 70 ns

High RF power handling
- 28 dBm average
- 36 dBm peak
3.3 V single-supply operation
- Internal negative voltage generator

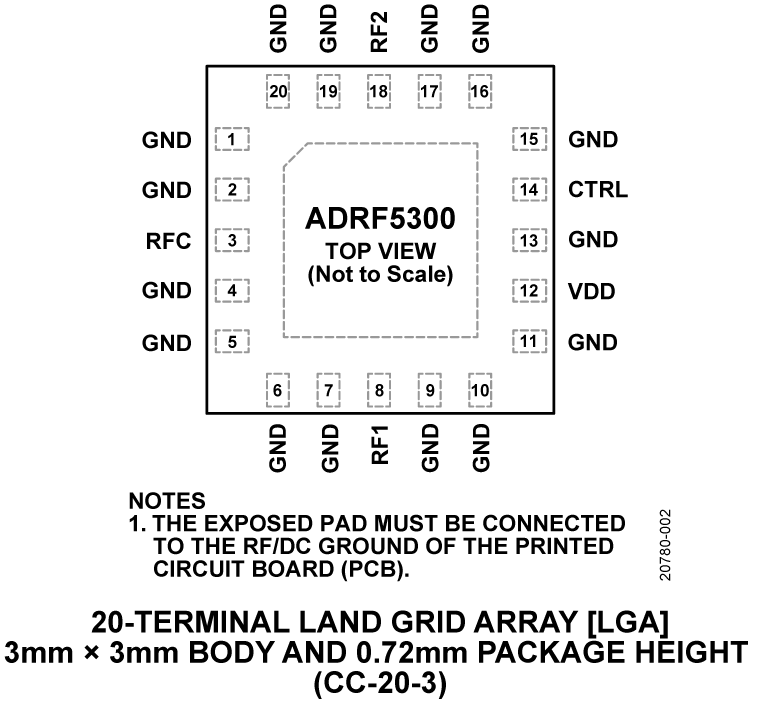

20-terminal, 3 mm × 3 mm, RoHS-compliant, land grid array package

Part details & applications

The ADRF5300 is a reflective, SPDT switch manufactured in the silicon process.

The ADRF5300 is developed for 5G applications ranging from 24 GHz to 32 GHz. The ADRF5300 has a low insertion loss of 1.1 dB, a high isolation of 38 dB, and an RF input power handling capability of 28 dBm average and 36 dBm peak.

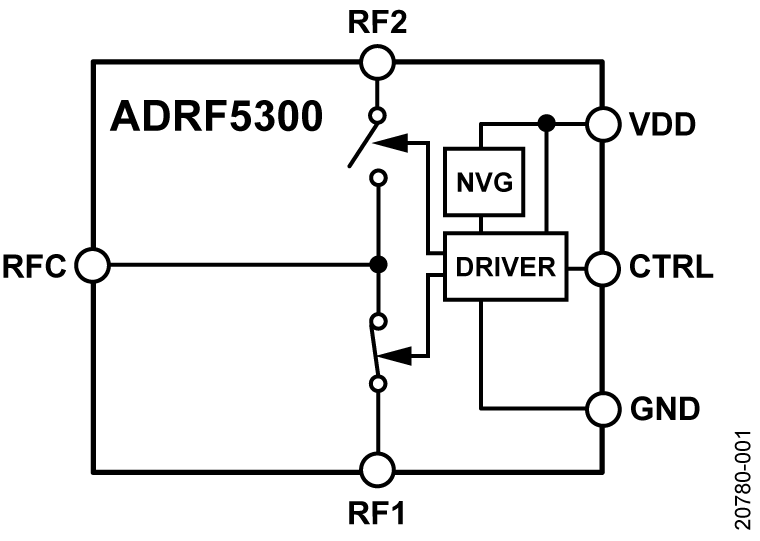

The ADRF5300 incorporates a negative voltage generator (NVG) to operate with a single positive supply of 3.3 V (V_DD) applied to the V_DD pin. The device employs CMOS- and low voltage transistor to transistor logic (LVTTL)-compatible controls.

The ADRF5300 is packaged in a 20-terminal, 3 mm × 3 mm, RoHS-compliant, land grid array (LGA) package and can operate from −40°C to +105°C.

APPLICATIONS

Industrial scanner
Test instrumentation
Cellular infrastructure: 5G millimeter wave
Military radios, radars, electronic counter measures (ECMs)
Microwave radios and very small aperture terminals (VSATs)
