ADRF5292

RECOMMENDED FOR NEW DESIGNS

High Isolation, Silicon SP4T, Nonreflective Switch, 0.1GHz to 13GHz

Analog Devices ADRF5292 Product Info

10 February 2026 6

Features

Frequency range: 100MHz to 13GHz
Nonreflective, 50Ω design
Low insertion loss
- 1.3dB to 7GHz typical
- 1.6dB to 13GHz typical
High isolation
- 46dB to 7GHz typical
- 40dB to 13GHz typical
High power handling (average)
- 34dBm through path
- 24dBm terminated path
- 32dBm hot switching (RFC)

High input linearity
- P0.1dB: 34.5dBm typical
- IP3: 61dBm typical
Fast RF settling time 0.1dB: 230ns
Single positive supply: 3.3V to 5V
CMOS-/LVTTL-compatible

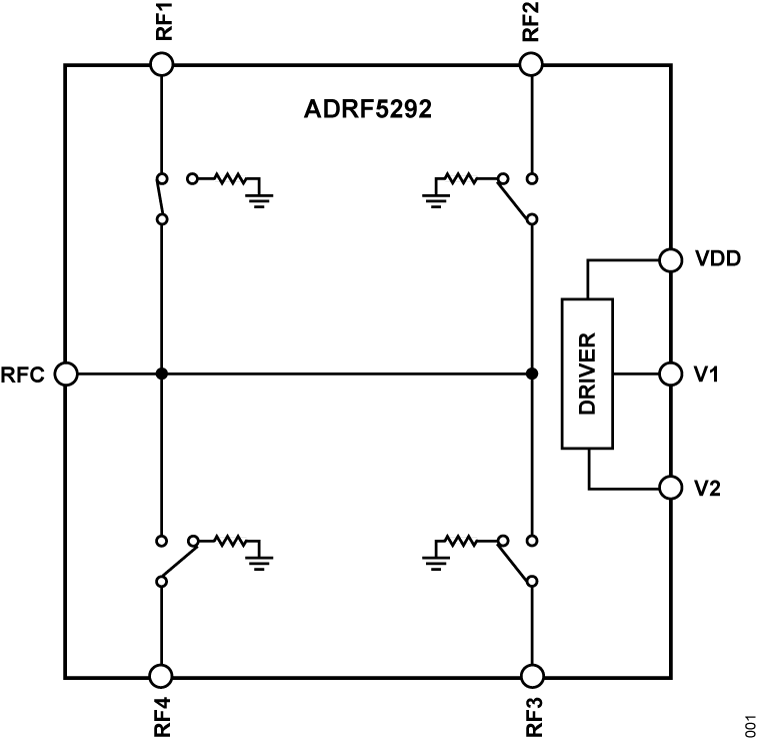

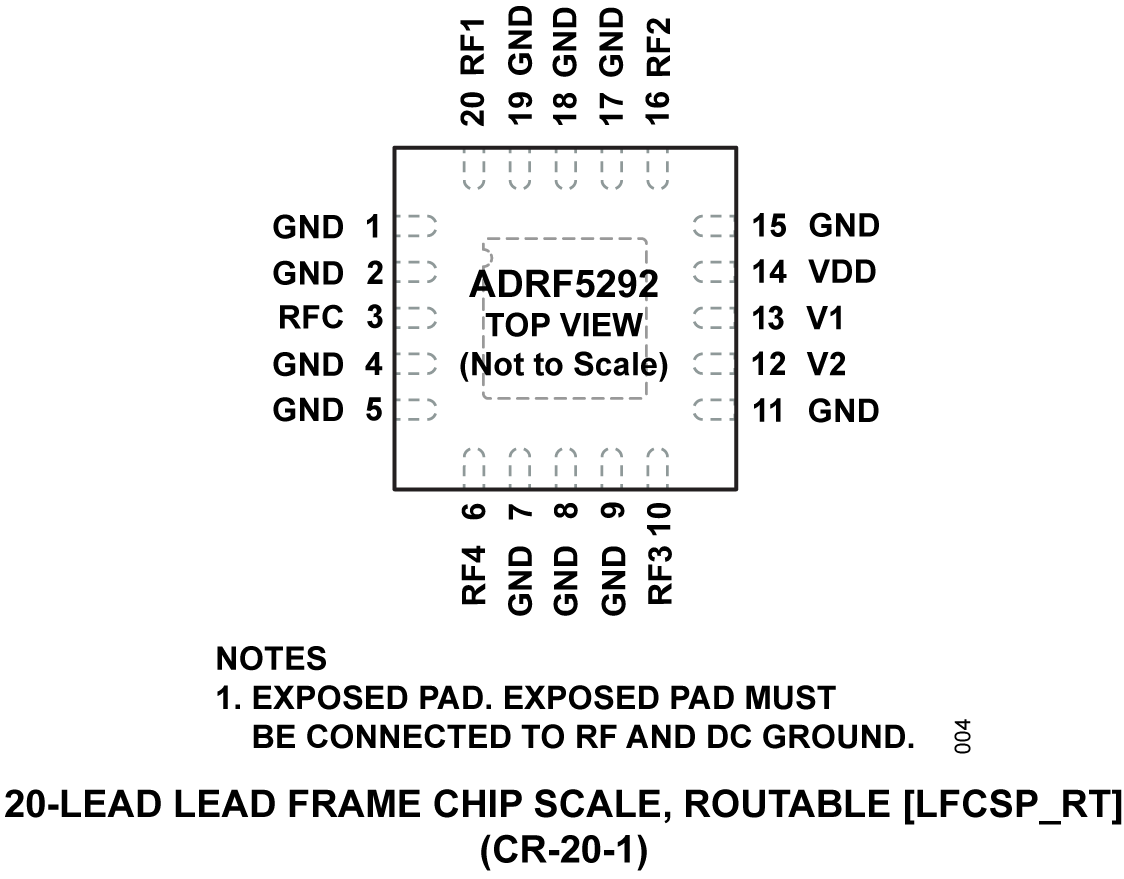

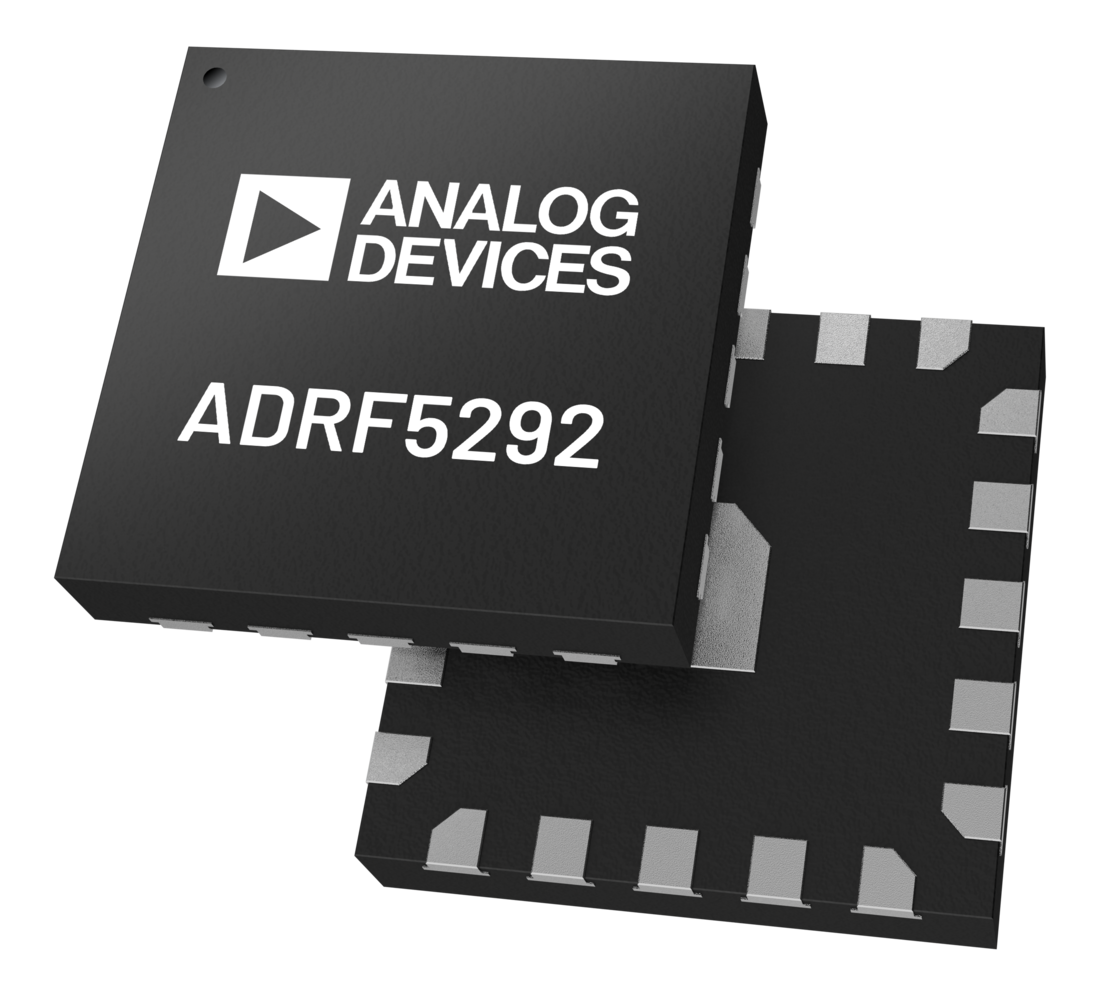

20-lead, 3mm × 3mm, LFCSP

Part details & applications

The ADRF5292 is a high isolation, nonreflective, 0.1GHz to 13GHz, silicon SP4T switch in the silicon process.

The ADRF5292 operates from 0.1GHz to 13GHz with an insertion loss lower than 1.6dB and an isolation higher than 40dB at 13GHz. The ADRF5292 has a nonreflective design, and the RF ports are internally terminated to 50Ω. The device has an input power handling capability of 34dBm (average) for through path, 24dBm (average) for terminated path, and 32dBm (average) hot switching at the RFC pin.

The ADRF5292 requires a single-supply voltage (V_DD) of 3.3V to 5V. The ADRF5292 employs 1.8V complementary metal-oxide semiconductor (CMOS)-compatible and 3.3V low-voltage transistor logic (LVTTL)-compatible controls.

The ADRF5292 comes in a 20-lead, 3mm × 3mm, LFCSP and can operate from −40°C to +125°C.

Applications

Cellular infrastructure
Wireless infrastructure
Military radios, radars, and electronic counter measures (ECMs)
Microwave radios and very small aperture terminals (VSATs)
Test instrumentation
