ADPM12160

RECOMMENDED FOR NEW DESIGNS

1600W, Nonisolated Quarter-Brick DC-DC Power Module

Analog Devices ADPM12160 Product Info

10 February 2026 4

Features

Electrical
- 40V to 60V Input Voltage Range
- 12V Fully Regulated Output Voltage
- Thermal Design Power up to 1600W
- Peak Power up to 2400W
- Peak Efficiency up to 98% at Half Load
- Fully Protected: OTP, Input UVLO and OVLO,Input OCP, Output OVP, Output OCP and SCP
- No Minimum Load Required
- Fast Load-Transient Response with CoupledInductor
- Optional Logic for Remote ON/OFF (REM)
- PMBus™ Configuration
- Event Data Recorder (Black Box)
- Parallel Operation with Active Current Sharing
- Nonisolated

Mechanical

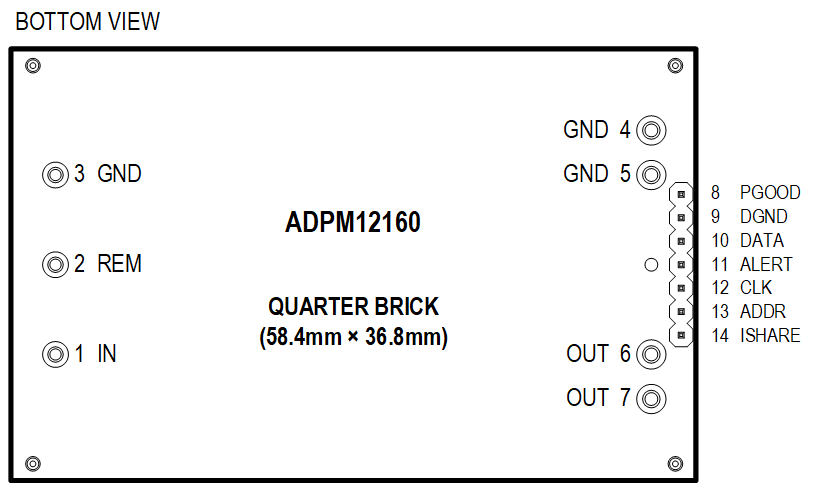

- Industry-Standard Quarter-Brick Footprint:58.4mm × 36.8mm × 15.1mm (2.30in × 1.45in ×0.59in)
- Optional Pin Length: 2.79mm, 3.70mm, or4.32mm
Safety and Certification
- IEC/UL/EN/CSA 62368-1
- Compliance with RoHS EU Directive 2011/65/EUand (EU)2015/863
- ISO 9001, TL 9000, ISO 14001, ISO 45001Certified Manufacturing Facility

Part details & applications

The ADPM12160 is a high-power, quarter-brick DC-DC converter that provides up to 98% efficiency at half load.

The ADPM12160 is a nonisolated converter that delivers a fully regulated 12V output with a continuous power level of 1600W and a peak power capability of up to 2400W for limited time.

APPLICATIONS

Distributed Power Architectures
Wireless Networks
Access and Optical Network Equipment
Enterprise Networks
Latest-Generation ICs (DSP, FPGA, and ASIC)and Microprocessor-Powered Applications
