Analog Devices LTC2500-32 Product Info

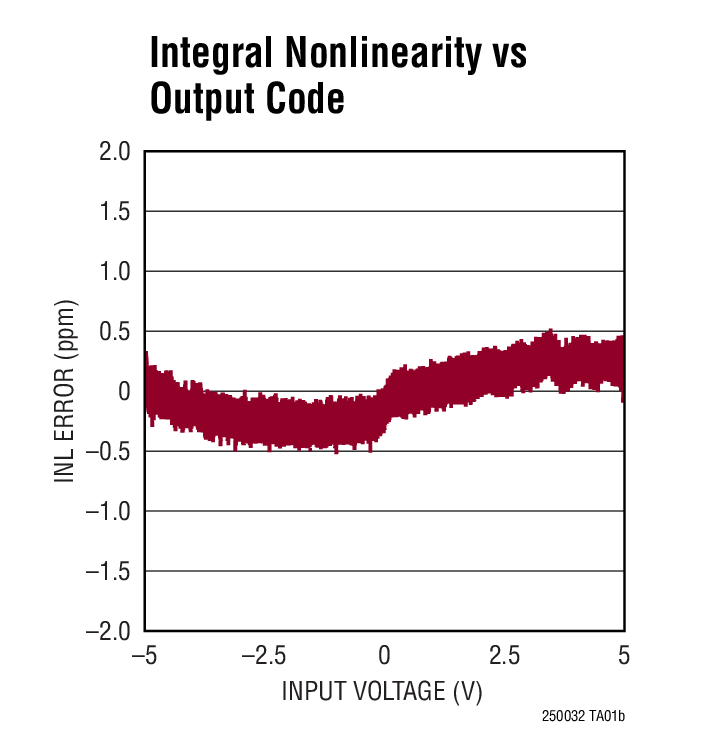

• ±0.5ppm INL (Typ)
• 104dB SNR (Typ) at 1Msps
• 148dB Dynamic Range (Typ) at 61sps
• Guaranteed 32-Bit No Missing Codes
• Configurable Digital Filter with Synchronization
• Relaxed Anti-Aliasing Filter Requirements
• Dual Output 32-Bit SAR ADC
• 32-Bit Digitally Filtered Low Noise Output
• 24-Bit Differential + 7-Bit Common Mode 1Msps Output with Overrange Detection
• Wide Input Common-Mode Range
• Guaranteed Operation to 85°C
• 1.8V to 5V SPI-Compatible Serial I/O
• Low Power: 24mW at 1Msps

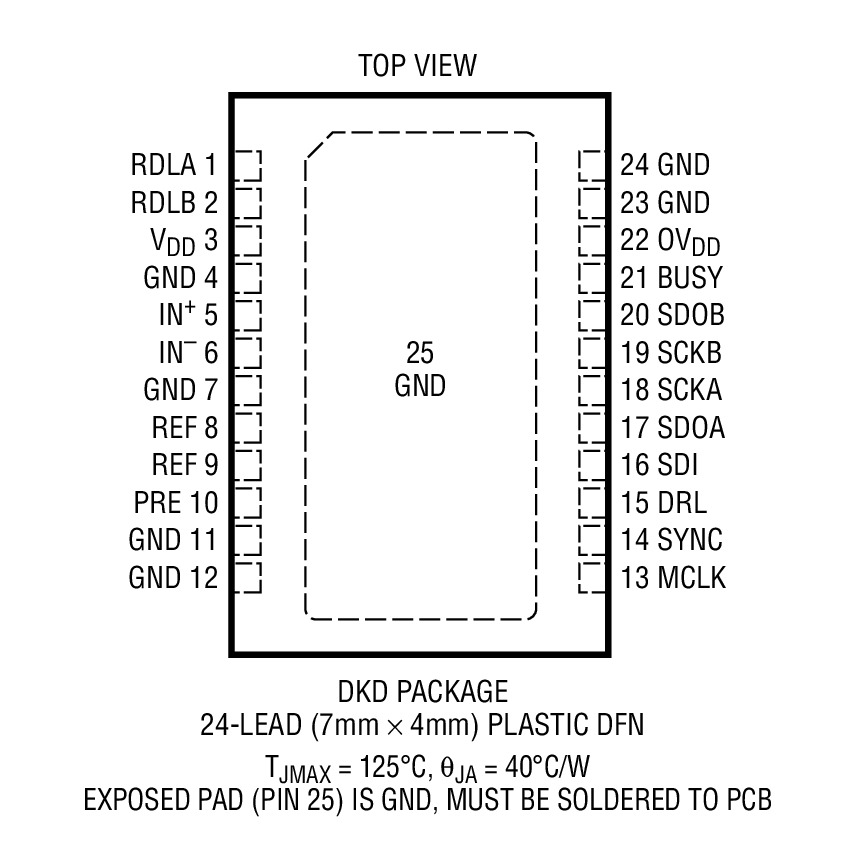

• 24-Lead 7mm × 4mm DFN Packages

The LTC2500-32 is a low noise, low power, high performance 32-bit ADC with an integrated configurable digital filter. Operating from a single 2.5V supply, the LTC2500-32 features a fully differential input range up to ±V_REF, with V_REF ranging from 2.5V to 5.1V. The LTC2500-32 supports a wide common mode range from 0V to V_REF simplifying analog signal conditioning requirements.

The LTC2500-32 simultaneously provides two output codes: (1) a 32-bit digitally filtered high precision low noise code, and (2) a 32-bit no latency composite code. The configurable digital filter reduces measurement noise by lowpass filtering and downsampling the stream of data from the SAR ADC core, giving the 32-bit filtered output code. The 32-bit composite code consists of an overrange detection bit, a 24-bit code representing the differential input voltage and a 7-bit code representing the common mode input voltage. The 32-bit composite code is available each conversion cycle, with no cycle of latency.

The digital filter is highly configurable through the SPI-compatible interface and features many distinct filter types that suit a variety of applications. The digital lowpass filter relaxes the requirements for analog anti-aliasing. Multiple LTC2500-32 devices can be easily synchronized using the SYNC pin.

Applications

• Seismology
• Energy Exploration
• Automatic Test Equipment
• High Accuracy Instrumentation
