ADPL12010

RECOMMENDED FOR NEW DESIGNS

20V, 8A/10A Fully Integrated Buck Converter with 20μA Quiescent Current and Dual-Phase Capability

Analog Devices ADPL12010 Product Info

10 February 2026 5

Features

High-Power DC/DC Converter in Small Solution Size
- Operating V_IN range of 3V to 20V
- Synchronous DC-DC Converter with Integrated FETs
- 8A/10A Maximum Output Current
- 400kHz and 1.5MHz Fixed Frequency Options
- Fixed Soft-Start Time
  - 2.5ms for 400kHz
  - 3.5ms for 1.5MHz
- 36ns Minimum On-Time
- Programmable Output Voltage
  - 0.8V to 10V for 400kHz
  - 0.8V to 6V for 1.5MHz
- Symmetric and Balanced SUP and PGND Pinout Placement for Better Electromagnetic Interference (EMI) Performance

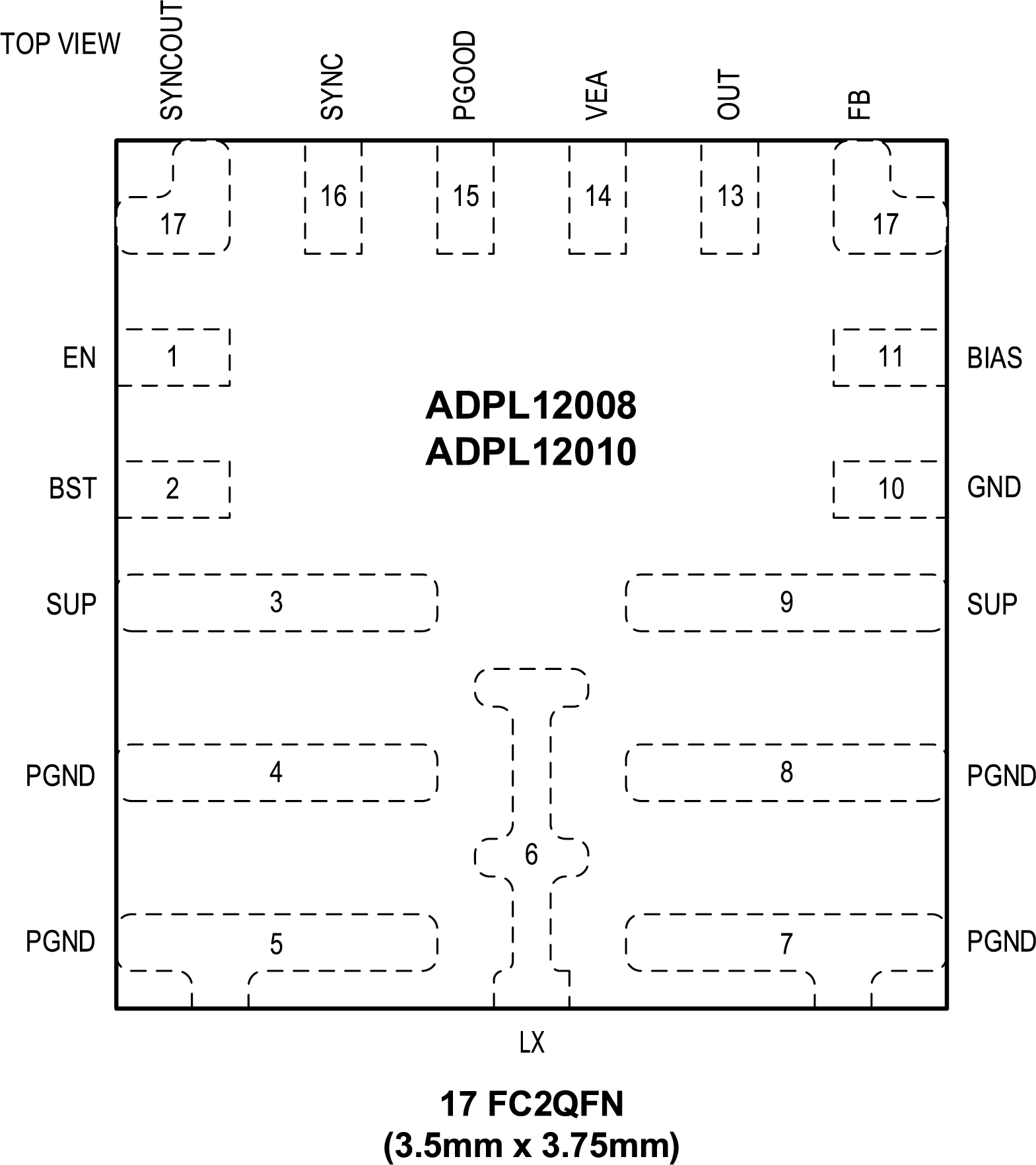

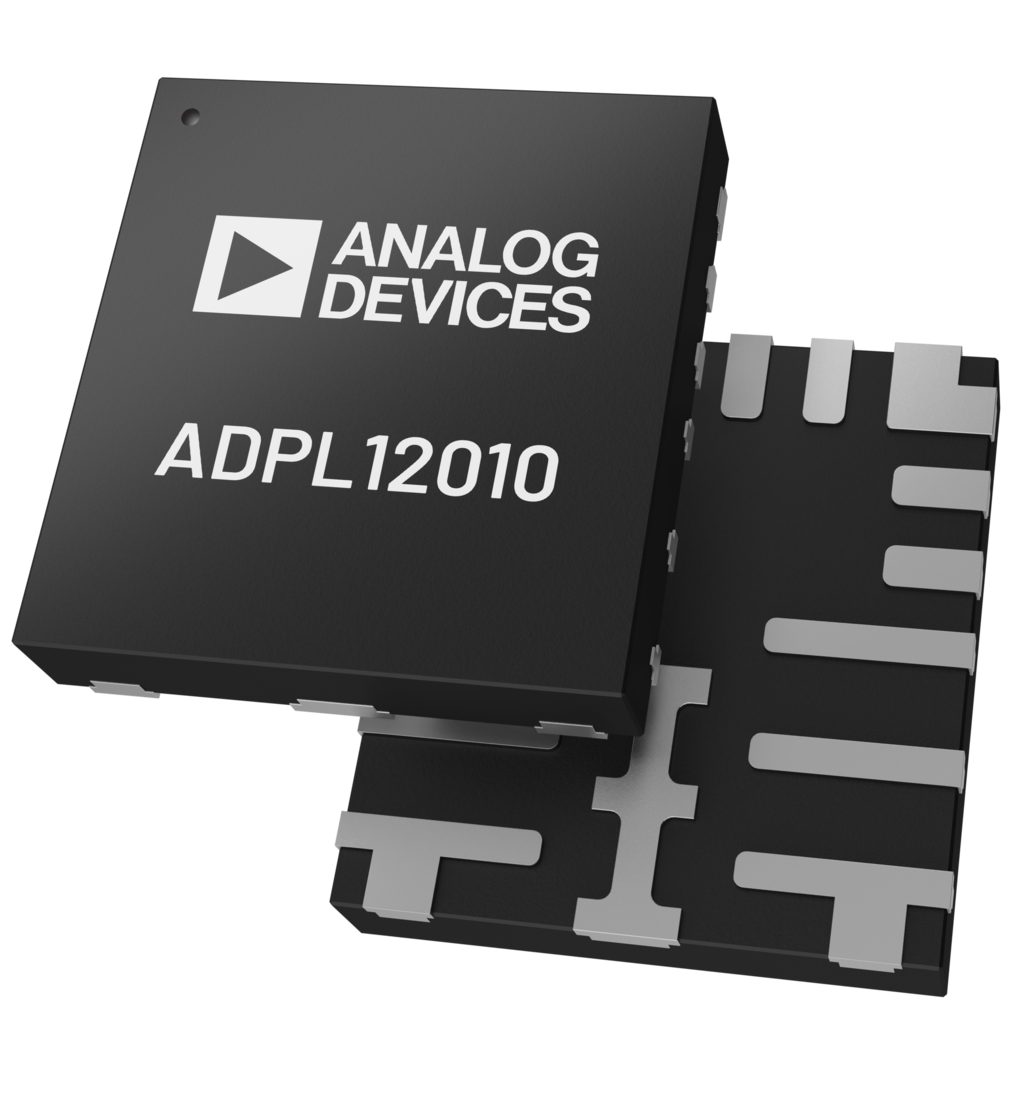

- Thermally-Enhanced 3.5mm x 3.75mm, 17-Pin FC2QFN Package
High Efficiency at All Load Ranges
- 20μA Quiescent Current in Skip Mode
- Up to 95.6% Eff. at 12V_IN/3.3V_OUT/400kHz
- Up to 93.9% Eff. at 12V_IN/3.3V_OUT/1.5MHz

Dual-Phase Operation up to 20A Load Capability
- Frequency Synchronization Input/Output
- 180º Out-of-Phase Between Controller andTarget
- Dynamic Current Sharing
Forced-PWM and Skip-Mode Operation
Low Dropout Operation
Power Good Indicator
Overtemperature and Short-Circuit Protection
-40°C to +150°C Operating Junction TemperatureRange
Scalable Power Solution
- Footprint Compatible withADPL12005/ADPL12006Ordering

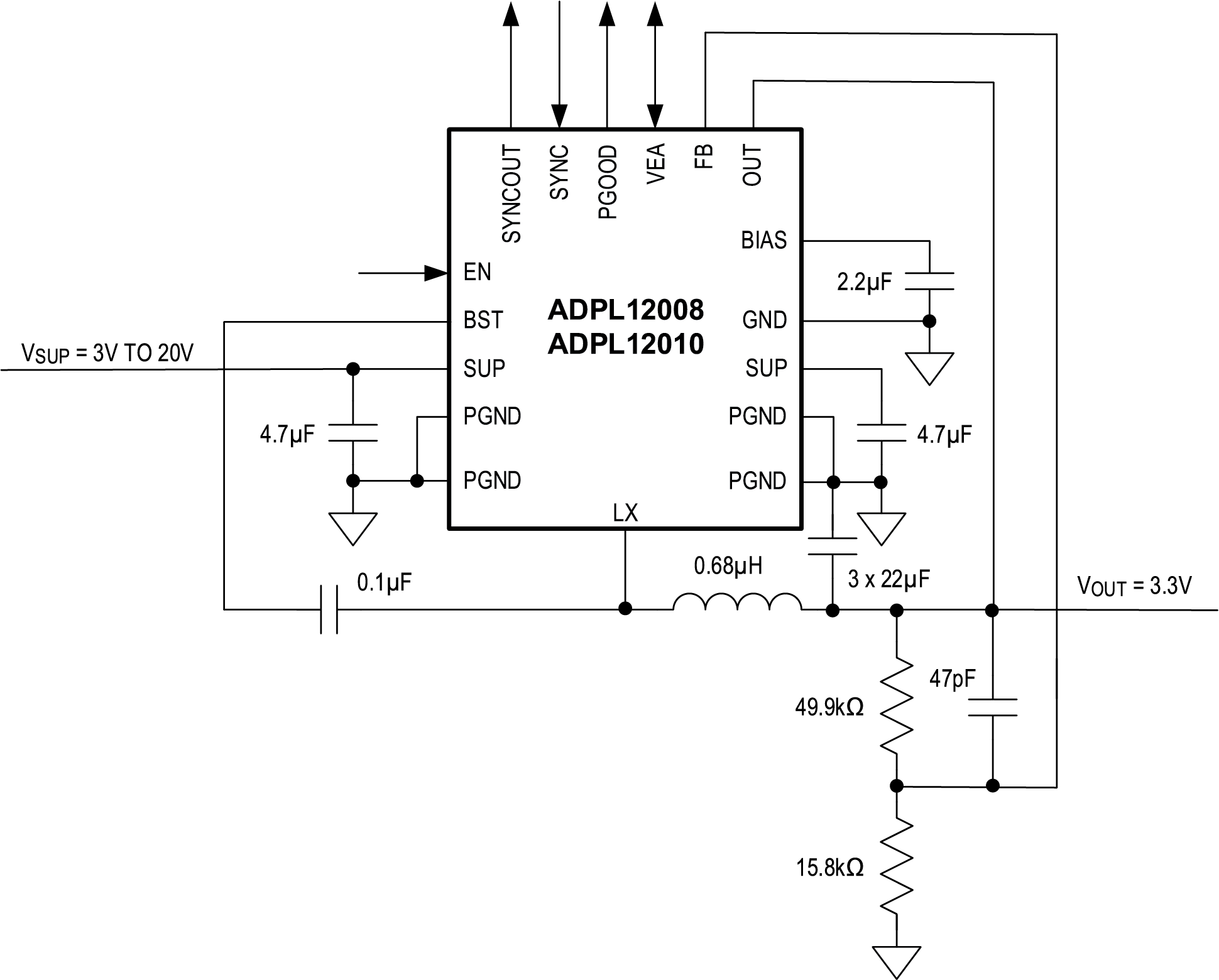

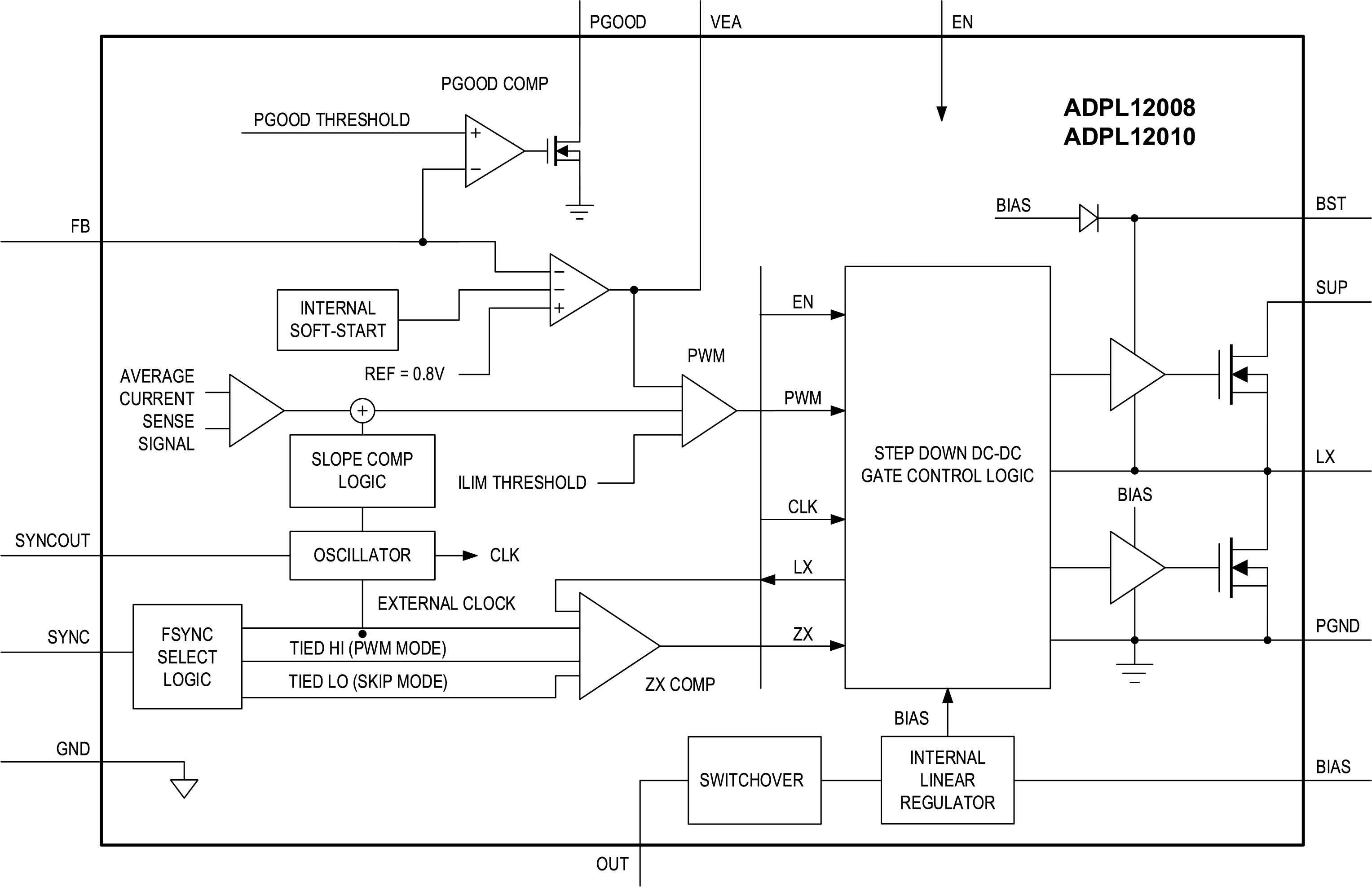

Part details & applications

The ADPL12008/ADPL12010 ICs are highly integrated synchronous buck converters with internal high-side and low-side switches. The ICs are designed to deliver up to 8A/10A with an input voltage from 3V to 20V. The voltage quality can be monitored by the PGOOD signal. The ICs can operate in dropout mode by running at a very high duty cycle, making them ideal for factory automation applications.

The ADPL12008/ADPL12010 ICs offer programmable output-voltage options. High switching frequency at 1.5MHz and 400kHz options allow for small external components and reduced output ripple. SYNC input programmability enables three modes for optimized performance: Forced–Pulse-width modulation (PWM) mode, skip mode with ultra-low quiescent current, and synchronization to an external clock.

The ADPL12008/ADPL12010 ICs also feature dual-phase capability, which allows up to 20A designs. Two ICs can be configured as a controller and target with dynamic current sharing and 180º out-of-phase operation.

The ADPL12008/ADPL12010 ICs are available in a small, 3.5mm x 3.75mm, 17-pin flip-chip quad flat no-lead (FC2QFN) package. They are pin-to-pin compatible with the ADPL12005/ADPL12006 (5A to 6A) family of products.

APPLICATIONS

Factory Automation
Point-of-Load
Distributed DC Power Systems
Communication Infrastructure
Test and Measurement
