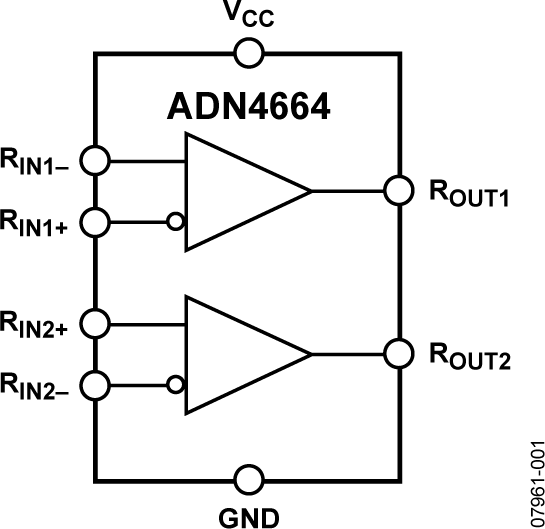

ADN4664

PRODUCTION

Dual, 3 V, CMOS, LVDS Differential Line Receiver

Analog Devices ADN4664 Product Info

10 February 2026 6

Features

±15 kV ESD protection on output pins
400 Mbps (200 MHz) switching rates
Flow-through pinout simplifies PCB layout
100 ps channel-to-channel skew (typical)
2.5 ns maximum propagation delay
3.3 V power supply

High impedance outputs on power-down
Low power design: typically 3 mW (quiescent)
Interoperable with existing 5 V LVDS drivers
Accepts small swing (310 mV typical) differential signal levels
Supports open, short, and terminated input fail-safe
0 V to −100 mV threshold region

Part details & applications

The ADN4664 is a dual, CMOS, low voltage differential signaling (LVDS) line receiver offering data rates of over 400 Mbps (200 MHz) and ultralow power consumption. It features a flow-through pinout for easy PCB layout and separation of input and output signals. The device accepts low voltage (310 mV typical) differential input signals and converts them to a single-ended 3 V TTL/CMOS logic level.

The ADN4664 and its companion driver, the ADN4663, offer a new solution to high speed, point-to-point data transmission, and a low power alternative to emitter-coupled logic (ECL) or positive emitter-coupled logic (PECL).
Applications

Point-to-point data transmission

Multidrop buses

Clock distribution networks

Backplane receivers
